Husqvarna 224 L Trimmer/Edger

Model: 224 L

Back To Assemblies

Save Part Not Listed?
product name

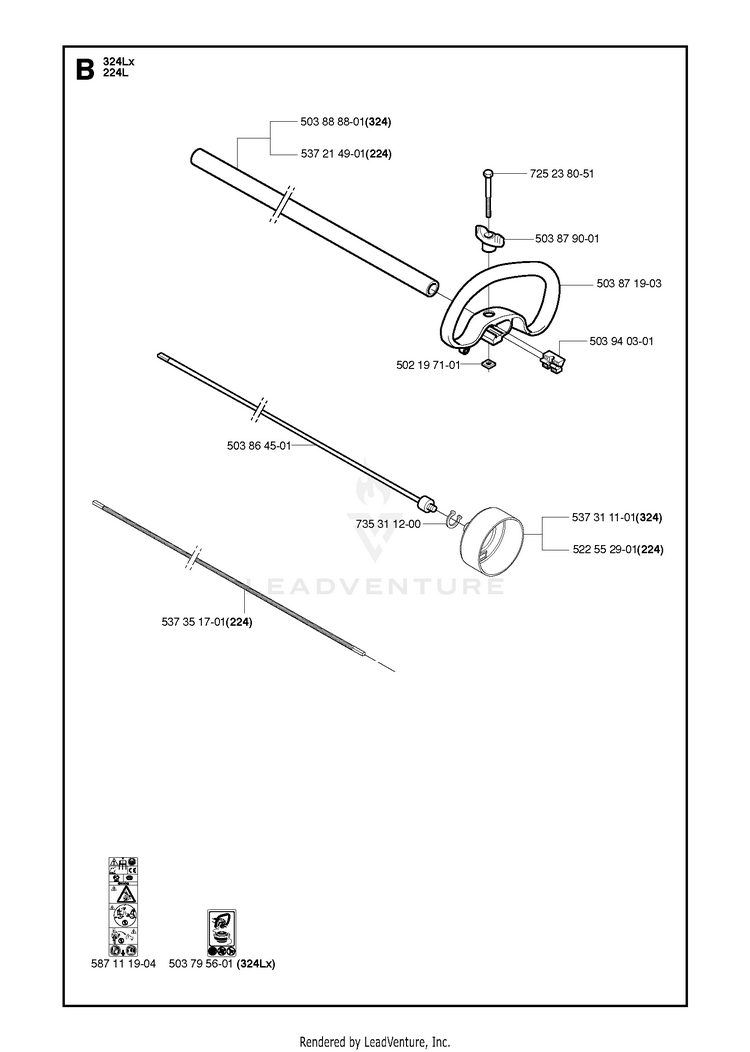

SHAFT & HANDLE

...
...
537 31 11-01
CLUTCH DRUM 324, thread HUS-537311101
...
735 31 12-00
RETAINING RING SGA 10 HUS-735311200
...
522 55 29-01
CLUTCH DRUM ASSY 224, square HUS-522552901
...
503 79 56-01
DECAL WARNING "NO BLADES" HUS-503795601
...
502 19 71-01
NUT HUS-502197101
...
537 21 49-01
TUBE ASSY HUS-579862601
...
587 11 19-04
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
537 35 17-01
DRIVE SHAFT FLEX 224, square end HUS-537351701
...
503 94 03-01
SPACER PLASTIC HUS-503940301
...
503 87 19-03
HANDLE HUS-503871908
...
503 88 88-01
DRIVE TUBE ASSEMBLY HUS-503888801
...
503 86 45-01
DRIVE SHAFT 324, thread HUS-503864501
...
503 87 90-01
KNOB HUS-503879001
...
725 23 80-51
SCREW M6X50 HUS-725238051
