Husqvarna 224 L Trimmer/Edger

Model: 224 L

Back To Assemblies

Save Part Not Listed?
product name

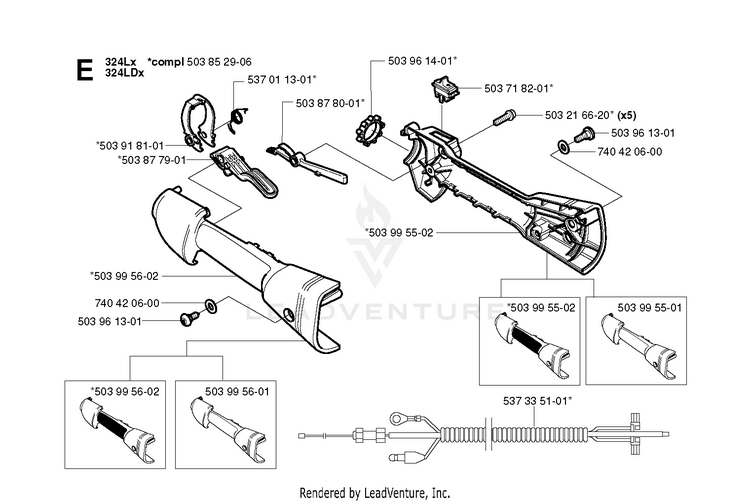

HANDLE & CONTROLS

...
...
503 99 56-02
HANDLE HUS-503995602
...
503 99 55-02
HANDLE HUS-503995502
...
503 87 80-01
THROTTLE LOCK HUS-503878001
...
503 87 79-01
THROTTLE TRIGGER HUS-503877903
...
503 99 56-01
HANDLE HALF HSG LH HUS-503995601
...
537 01 13-01
SPRING HUS-537011301
...
503 96 14-01
VIBRATION DAMPER HUS-503961401
...
503 21 66-20
SCREW HUS-503216618
...
503 96 13-01
SCREW MT5X11 HUS-503961301
...
740 42 06-00
O-RING 8X1.6 HUS-740420600
...
503 71 82-01
START/STOP SWITCH HUS-503718201
...
503 99 55-01
HSG THROTTLE RH HUS-503995501
...
503 85 29-06
HANDLE HUS-503852906
...
503 91 81-01
LEVER HUS-503918101
...
537 33 51-01
CABLE ASSY HUS-537335101
