Husqvarna 224 L (2009-06) Brush Cutter

Model: 224 L (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

Carb Parts

...
...
531008681
CARBURETOR HUS-531008681
...
544193301
CARBURETTOR WALBRO WYB7C HUS-544193301
...
531008674
SWIVEL HUS-531008674
...
531008678
WASHER HUS-531008678
...
531008671
RETAINING RING HUS-531008671
...
531008686
O-RING HUS-531008686
...
531008672
O-RING HUS-531008672
...
531008688
JET HUS-531008688
...
531008689
JET HUS-531008689
...
531008690
JET HUS-531008690
...
531008691
JET HUS-531008691
...
531008662
PUMP DIAPHRAGM HUS-531008662
...
531008661
DIAPHRAGM HUS-531008661
...
531008664
HOUSING HUS-531008664
...
531008679
PUMP HUS-531008679
...
531008673
COVER HUS-531008673
...
531008665
SCREEN HUS-531008665
...
531008667
SPRING HUS-531008667
...
531008666
VALVE HUS-531008666
...
531008668
SCREW HUS-531008668
...
531008670
LEVER HUS-531008670
...
531008669
SHAFT HUS-531008669
...
531008675
SCREW HUS-531008675
...
531008663
HOUSING HUS-531008663
...
531002443
SCREW HUS-531002443
...
531008676
SCREW HUS-531008676
...
531008659
GASKET HUS-531008659
...
531008660
GASKET HUS-531008660
...
531008677
SPRING HUS-531008677

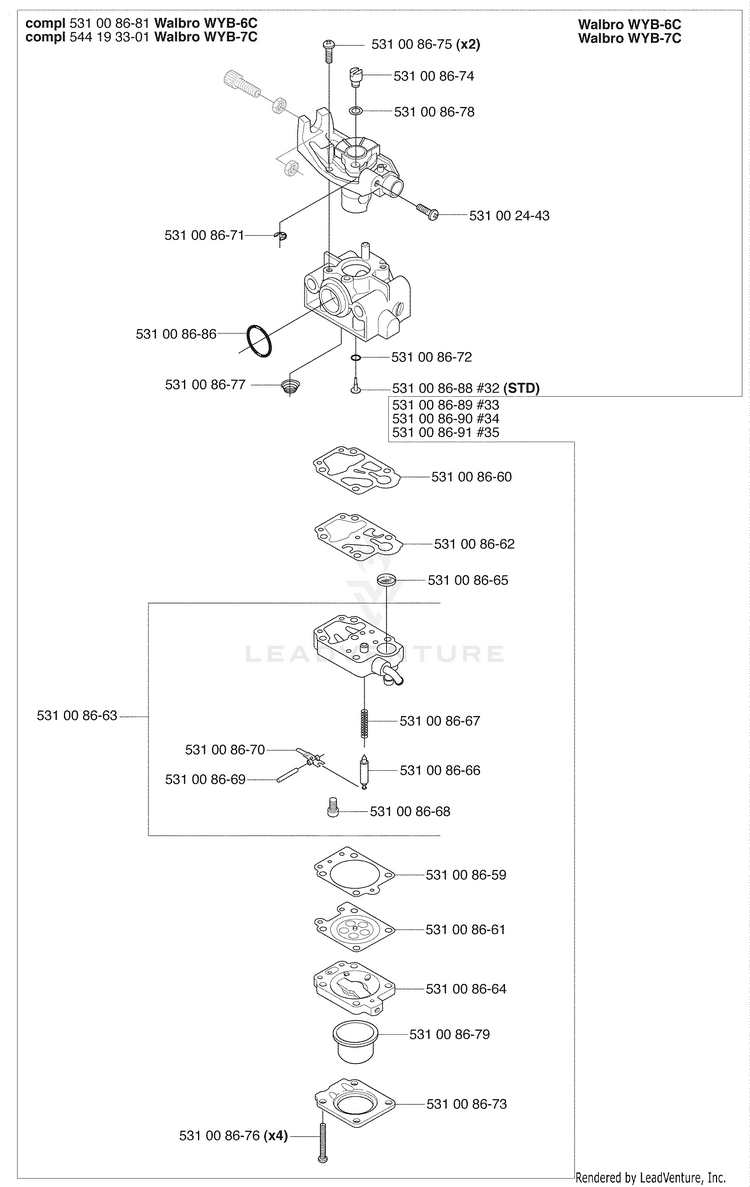

Schematic Image Zoomed
