Husqvarna 224 L (2009-06) Brush Cutter

Model: 224 L (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

Tube / Shaft

...
...
537027601
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
503795601
DECAL WARNING "NO BLADES" HUS-503795601
...
503879001
KNOB HUS-503879001
...
725238051
SCREW M6X50 HUS-725238051
...
503871903
HANDLE HUS-503871908
...
503888801
DRIVE TUBE ASSEMBLY HUS-503888801
...
503940301
SPACER PLASTIC HUS-503940301
...
502197101
NUT HUS-502197101
...
503864501
DRIVE SHAFT HUS-503864501
...
537351701
DRIVE SHAFT FLEX HUS-537351701
...
735311200
RETAINING RING SGA 10 HUS-735311200
...
537214901
TUBE ASSY HUS-579862601
...
537311101
CLUTCH DRUM HUS-537311101
...
522552901
CLUTCH DRUM ASSY HUS-522552901

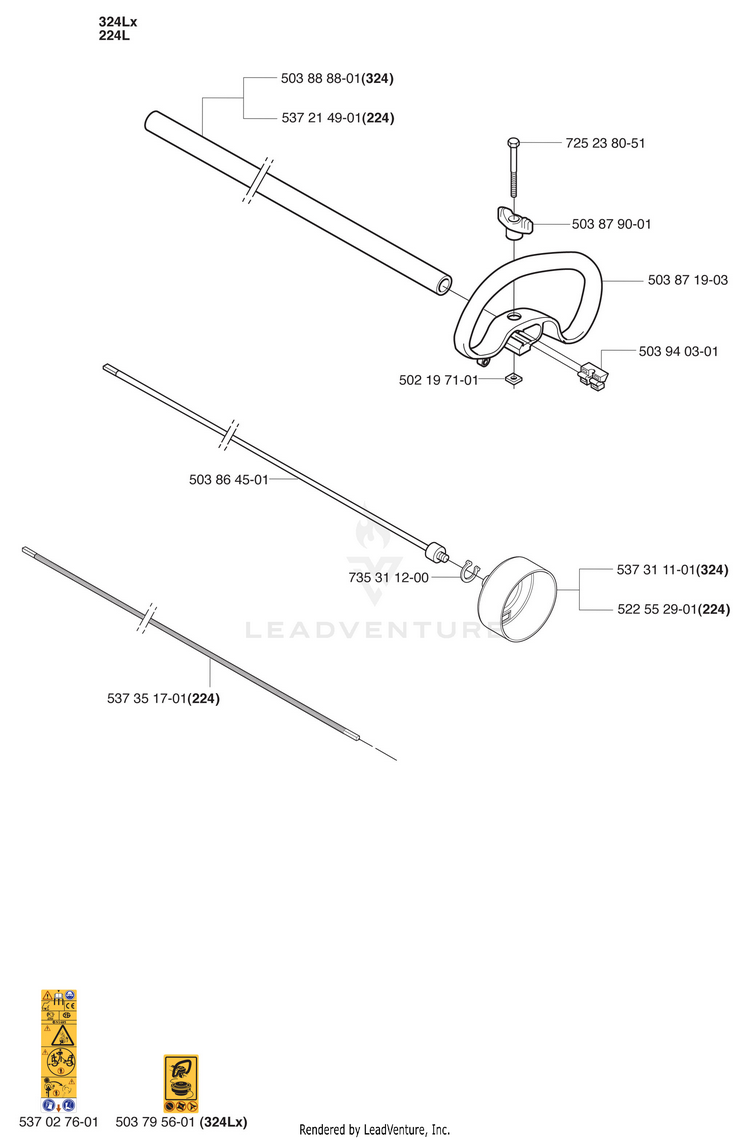

Schematic Image Zoomed
