Husqvarna 224 L (2009-06) Brush Cutter

Model: 224 L (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

Crankcase / Cylinder

...
...
531008721
CRANKCASE / CYLINDER HUS-531008721
...
531008610
GAUGE HUS-531008610
...
531008611
GASKET HUS-531008611
...
531008616
SCREW HUS-531008616
...
531008624
PIN HUS-531008624
...
531008612
HOSE HUS-531008612
...
531008724
SEALING HUS-531008724
...
531008725
FILTER HUS-531008725
...
531008623
SCREW HUS-531008623
...
531008723
GASKET HUS-531008723
...
531008727
VALVE HUS-531008727
...
531008608
BLADE HUS-531008608
...
531008609
MOVEMENT LIMITER HUS-531008609
...
531008622
SCREW HUS-531008622
...
531008617
SCREW HUS-531008617
...
531008726
HOSE HUS-531008726
...
531008626
CLIP HUS-531008626
...
531008621
NUT HUS-531008621
...
531008619
SCREW HUS-531008619
...
531008618
SCREW HUS-531008618
...
531008722
COVER HUS-531008722
...
531008620
SCREW HUS-531008620
...
531008625
CLIP HUS-531008625
...
531008613
SPARK PLUG HUS-531008613
...
531008614
CMR5H NGK SPARK PLUG HUS-531008614
...
531008615
CMR6H NGK SPARK PLUG HUS-531008615
...
725532555
SCREW MC6S 5X10 HUS-725532555

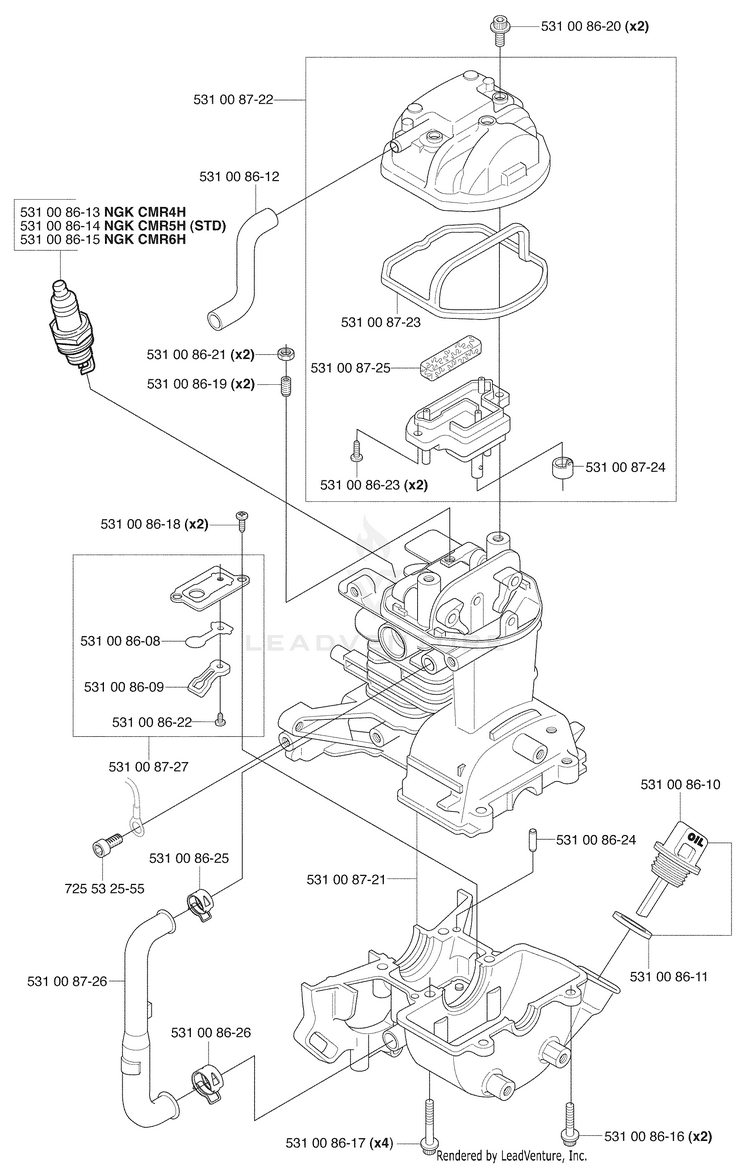

Schematic Image Zoomed
