Husqvarna 224 L (2009-06) Brush Cutter

Model: 224 L (2009-06)

Back To Assemblies

Save Part Not Listed?
product name

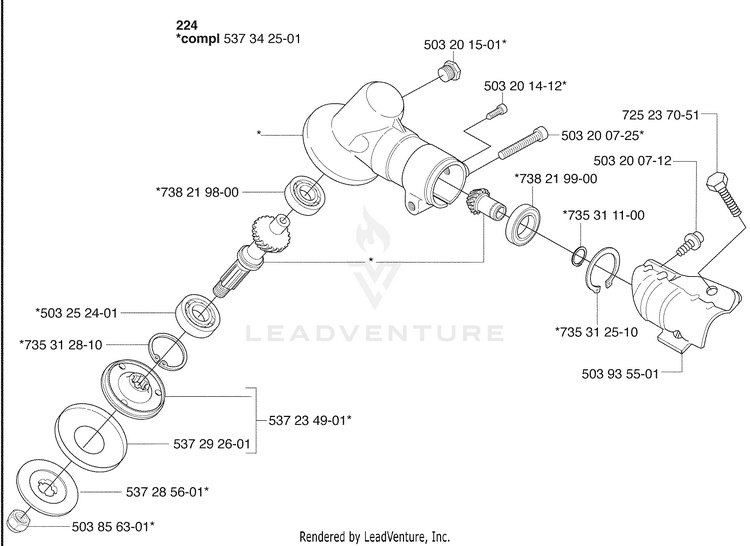

224 Gearbox

...
...
503201501
PLUG HUS-503201501
...
503200725
SCREW HUS-503200725
...
503201412
SCREW HUS-503201412
...
738219800
BALL BEARING 8X22X7/608Z HUS-738219800
...
503252401
HOLDER BALL BEARING HUS-525831801
...
735312810
RETAINING RING SGH 28 HUS-735312810
...
537234901
DRIVE DISC HUS-537234901
...
537292601
DRIVE DISC HUS-537234901
...
537285601
SUPPORT FLANGE HUS-537285601
...
503856301
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
738219900
BALL BEARING 24X9X1/609ZR HUS-738219900
...
735311100
RETAINING RING HUS-735311100
...
735312510
RETAINING RING HUS-735312510
...
503935501
CLAMP HUS-574306904
...
725237051
SCREW HUS-725237071
...
503200712
SCREW HUS-503200712
...
537342501
123L GEARHEAD HUS-537333201
Schematic Image Zoomed
