Husqvarna 223 R (from 2011 -) Brushcutter/Clearing Saw

Model: 223 R (from 2011 -)

Back To Assemblies

Save Part Not Listed?
product name

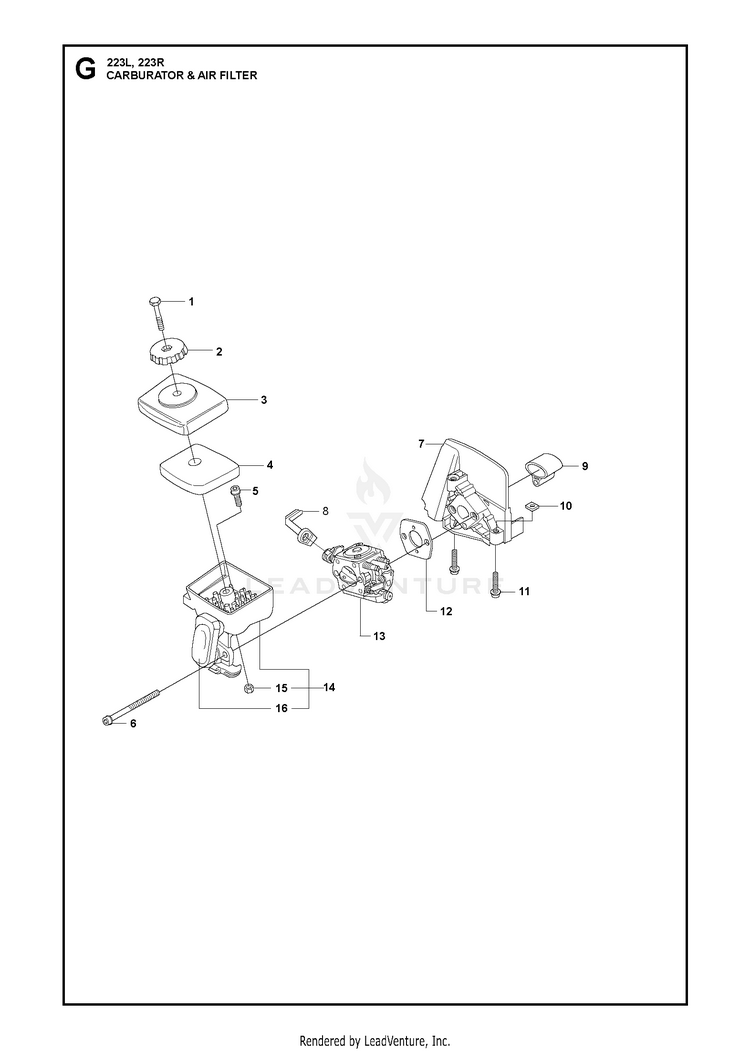

CARBURETOR & AIR FILTER

...
...
11
SCREW HUS-503200325
...
5
SCREW HUS-503217516
...
10
NUT HUS-503226504
...
14
FILTER HOLDER HUS-503890301
...
8
CHOKE CONTROL HUS-503962501
...
3
AIR FILTER COVER HUS-503888001
...
12
GASKET HUS-503497101
...
6
SCREW HUS-503217550
...
16
CAP FILTER HOLDER HUS-503887901
...
9
PIPE HUS-503942601
...
2
KNOB HUS-502204001
...
4
AIR FILTER (READY-OILED) HUS-537186301
...
15
NUT HUS-731231401
...
7
PARTITION HUS-503910901
...
1
SCREW HUS-502206503
...
13
KIT CARB ZAMA C1Q-EL24 HUS-588171156
