Husqvarna 223 R (from 2011 -) Brushcutter/Clearing Saw

Model: 223 R (from 2011 -)

Back To Assemblies

Save Part Not Listed?
product name

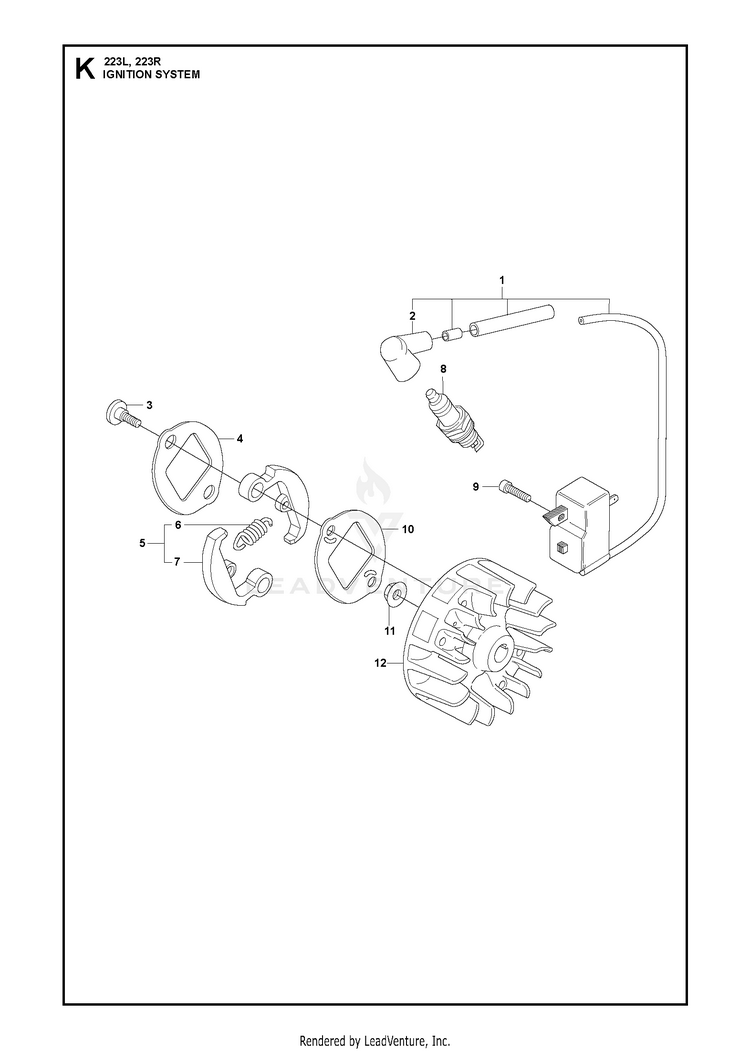

IGNITION SYSTEM

...
...
9
SCREW HUS-586444901
...
10
WASHER HUS-537046802
...
6
SPRING HUS-503816001
...
1
IGNITION MODULE MB50 HUS-537418701
...
8
SPARK PLUG M14X1.25 NGK BPMR7A Champion RCJ 7Y HUS-503235111
...
7
CLUTCH HUS-503842801
...
11
FLANGE NUT HUS-731711651
...
2
SPARK PLUG CONNECTION HUS-537239601
...
5
CLUTCH HUS-537032201
...
3
SCREW HUS-503842902
...
8
SPARK PLUG M14X1.25 NGK BPMR7A NGK BPMR 7A HUS-503235111
...
12
FLYWHEEL HUS-537249602
...
4
WASHER, CLUTCH HUS-537046702
