Husqvarna 223 R (from 2011 -) Brushcutter/Clearing Saw

Model: 223 R (from 2011 -)

Back To Assemblies

Save Part Not Listed?
product name

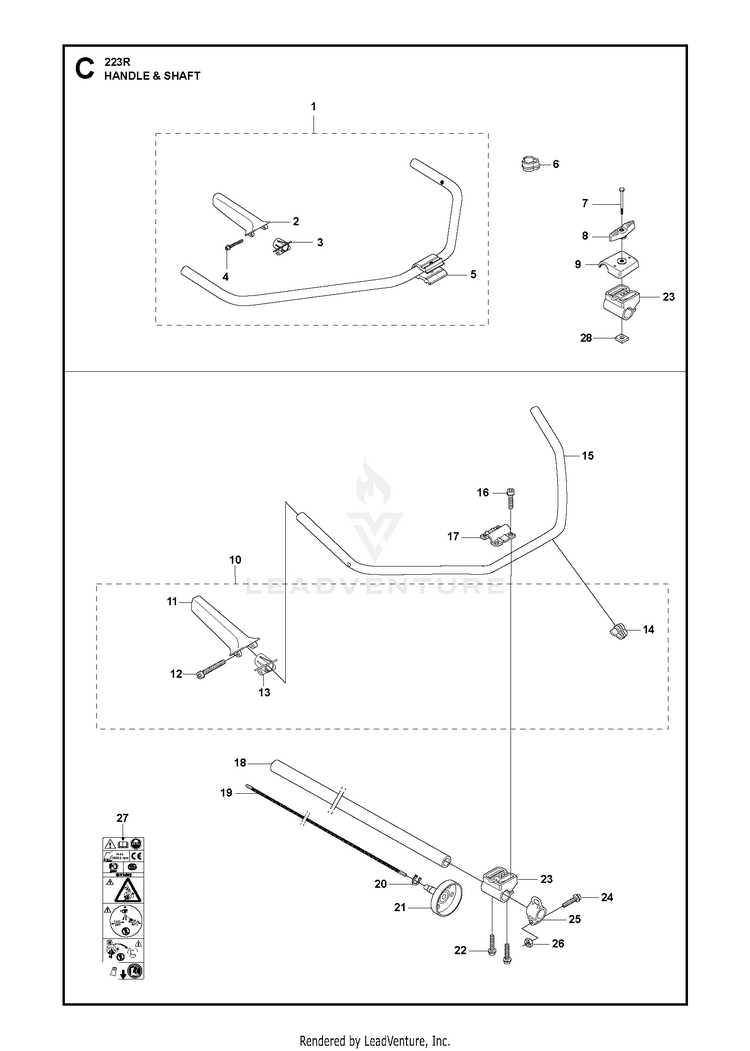

SHAFT & HANDLE

...
...
7
SCREW HUS-725238651
...
16
SCREW HUS-503216816
...
5
HOLDER HUS-544020903
...
19
DRIVE SHAFT FLEX HUS-537351701
...
8
HANDLE HUS-502203801
...
27
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
3
BRACKET HUS-503804501
...
13
BRACKET HUS-503804501
...
4
SCREW HUS-503210745
...
6
GROMMET HUS-502211201
...
15
HANDLE HUS-502199503
...
26
NUT HUS-731231401
...
14
GROMMET HUS-502211201
...
1
HANDLE HUS-503724303
...
12
SCREW HUS-503210745
...
17
CLAMP HUS-503963101
...
24
SCREW HUS-525755101
...
2
HANDLE HUS-503721003
...
9
BRACKET HUS-503722901
...
10
HANDLE HUS-503724303
...
23
HOLDER HUS-503882301
...
22
SCREW HUS-503217525
...
11
HANDLE HUS-503721003
...
18
TUBE ASSY HUS-579862601
...
20
RETAINING RING SGA 10 HUS-735311200
...
25
HARNESS HOLDER HUS-503941001
...
28
NUT HUS-502197101
...
21
CLUTCH DRUM HUS-537237502
