product name

Husqvarna 223 R (from 2011 -) Brushcutter/Clearing Saw

Model: 223 R (from 2011 -)

Back To Assemblies

Save Part Not Listed?
product name

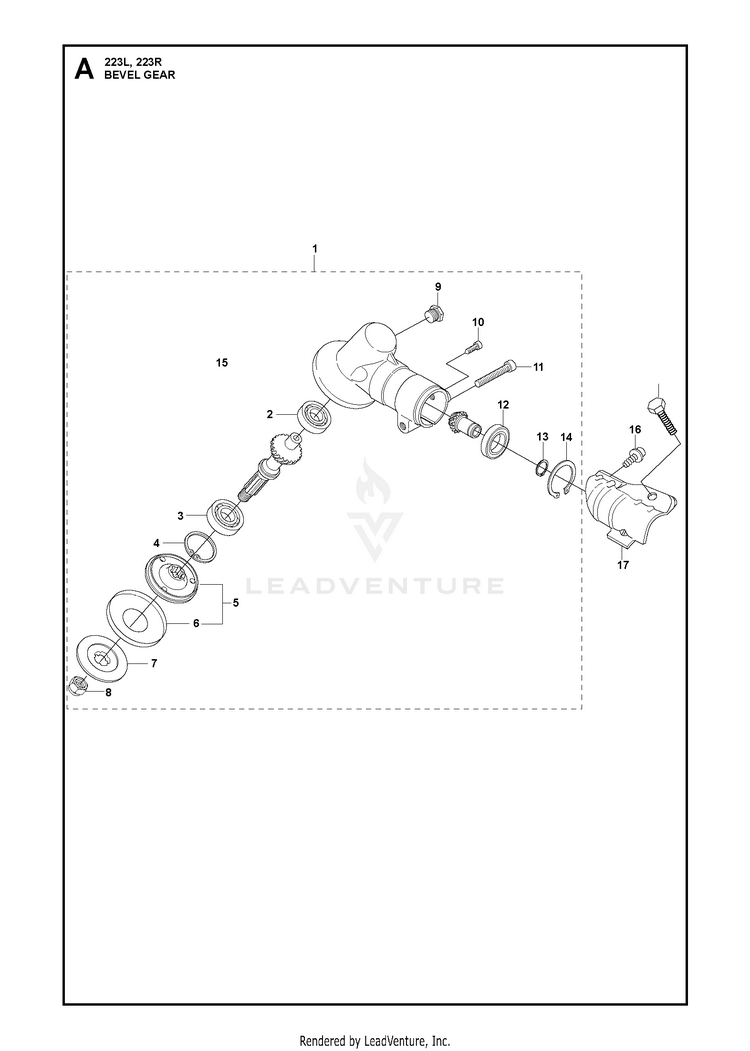

BEVEL GEAR

...
...
2
BALL BEARING 8X22X7/608Z HUS-738219800
...
5
DRIVE DISC HUS-537234901
...
10
SCREW HUS-503201412
...
4
RETAINING RING SGH 28 HUS-735312810
...
13
RETAINING RING HUS-735311100
...
12
BALL BEARING 24X9X1/609ZR HUS-738219900
...
16
SCREW HUS-503200712
...
14
RETAINING RING HUS-735312510
...
15
SCREW HUS-725237071
...
7
SUPPORT FLANGE HUS-537285601
...
3
HOLDER BALL BEARING HUS-525831801
...
11
SCREW HUS-503200725
...
6
DRIVE DISC HUS-537234901
...
1
123L GEARHEAD HUS-537333201
...
8
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
17
CLAMP HUS-574306904
...
9
PLUG HUS-503201501
Schematic Image Zoomed
