Husqvarna 223 R (from 2011 -) Brushcutter/Clearing Saw

Model: 223 R (from 2011 -)

Back To Assemblies

Save Part Not Listed?
product name

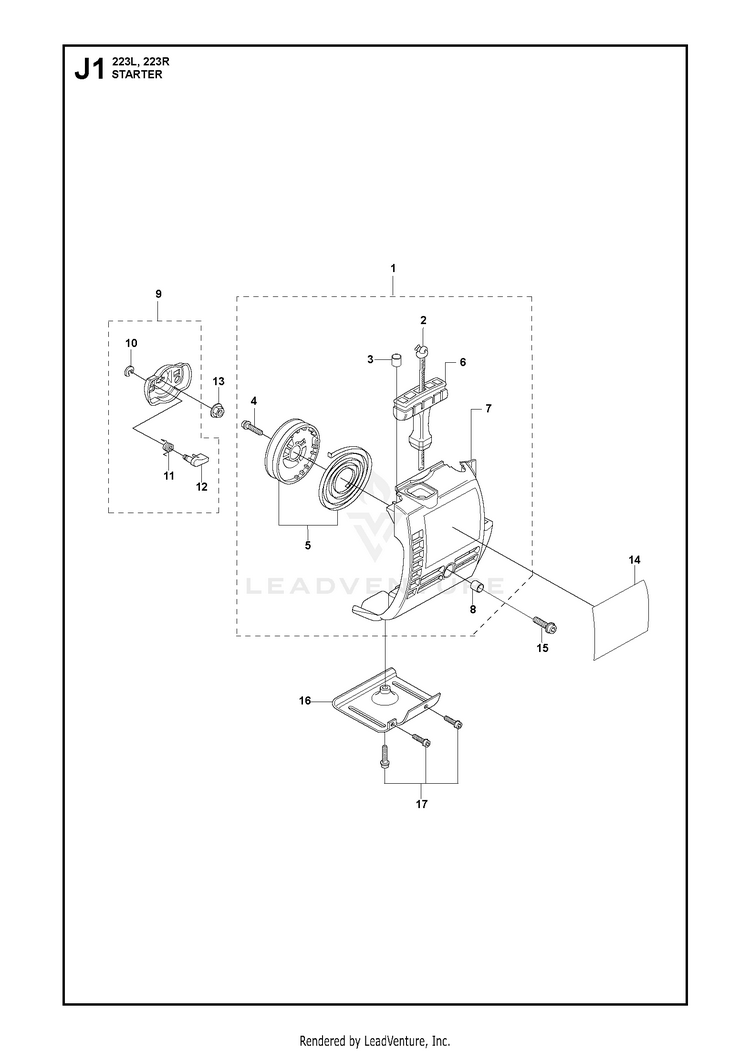

STARTER

...
...
9
STARTER PAWL BRIDGE HUS-503873305
...
13
FLANGE NUT HUS-731711651
...
17
SCREW HUS-503216618
...
16
PLATE (325) HUS-537034101
...
3
SPACING SLEEVE HUS-537379302
...
4
SCREW HUS-503217716
...
12
STARTER PAWL HUS-544011401
...
6
STARTER HANDLE HUS-537008401
...
15
SCREW HUS-503217520
...
8
SPACING SLEEVE HUS-537379302
...
11
SPRING HUS-503873601
...
5
STARTER PULLEY ASSY. HUS-503964901
...
14
223 STARTER HOUSING DECAL (223L) HUS-537353450
...
10
E-RING 4 HUS-735310820
...
14
LABEL STARTING DEVICE (223R) HUS-537353451
...
1
STARTER ASSY HUS-503852807
...
7
STARTER HOUSING HUS-503858703
...
2
STARTER ROPE HUS-503858901
