Husqvarna 223 L (2006-01) Trimmer

Model: 223 L (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

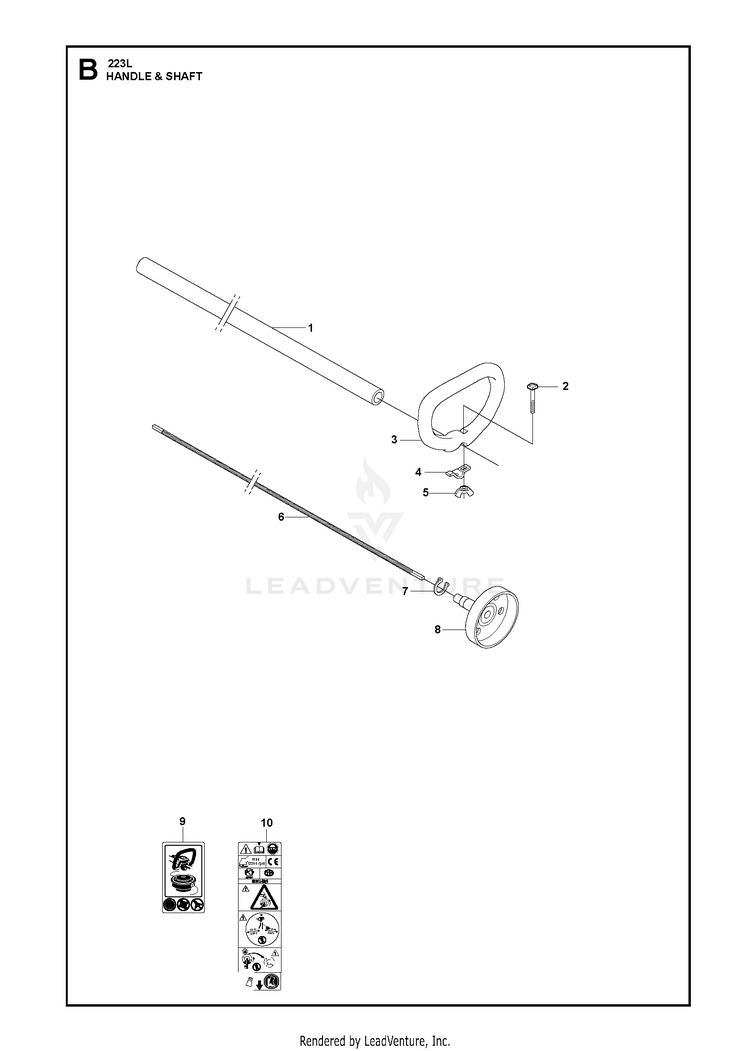

SHAFT & HANDLE

...
...
6
DRIVE SHAFT FLEX HUS-537351701
...
7
RETAINING RING SGA 10 HUS-735311200
...
4
CLAMP HUS-530038599
...
1
TUBE ASSY HUS-579862601
...
8
CLUTCH DRUM HUS-537237502
...
10
LABEL WARNING HUS-537294704
...
3
HANDLE, LOOP HUS-537076801
...
2
SCREW HUS-503219835
...
9
DECAL WARNING "NO BLADES" HUS-503795601
...
5
WING NUT HUS-503222601
