Husqvarna 223 L (2006-01) Trimmer

Model: 223 L (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

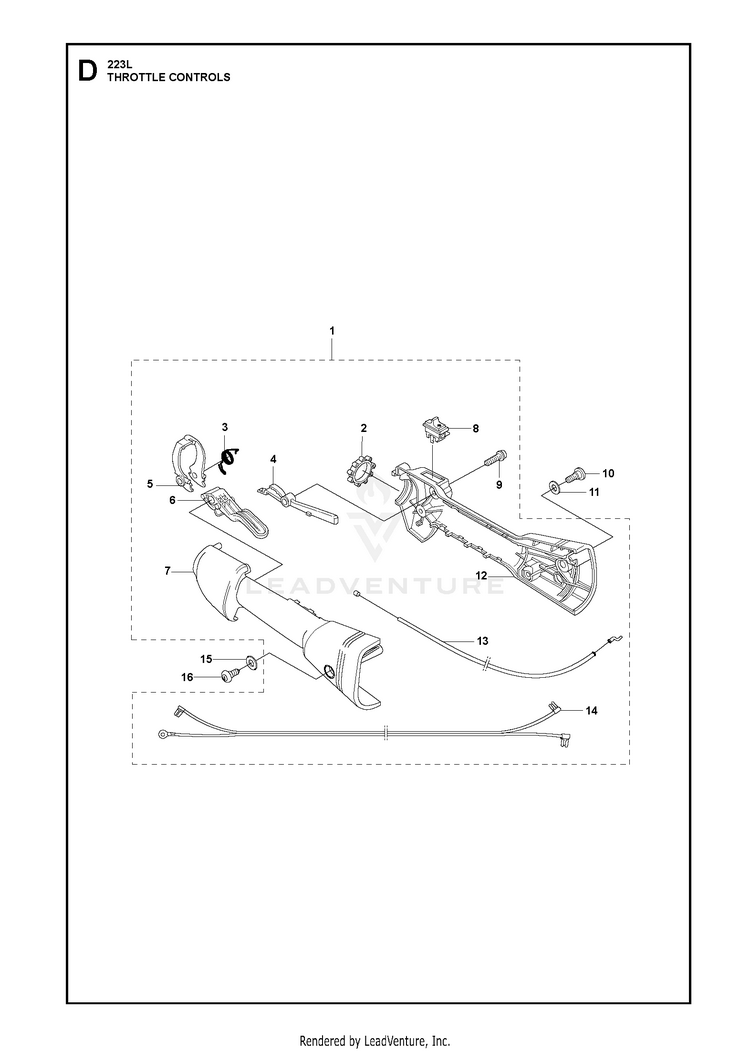

THROTTLE CONTROLS

...
...
12
HSG THROTTLE RH HUS-503995501
...
1
THROTTLE TRIGGER CPL HUS-537443802
...
8
STOP BUTTON HUS-537419001
...
11
O-RING 8X1.6 HUS-740420600
...
4
THROTTLE LOCK HUS-503878001
...
16
SCREW SPACER HUS-503961302
...
15
O-RING 8X1.6 HUS-740420600
...
14
SHORT-CIRCUIT CABLE HUS-537414201
...
10
SCREW SPACER HUS-503961302
...
7
HANDLE HALF HSG LH HUS-503995601
...
13
THROTTLE CABLE HUS-544171701
...
3
SPRING HUS-537011301
...
9
SCREW HUS-503216618
...
6
THROTTLE TRIGGER HUS-503877903
...
5
LEVER HUS-503918101
...
2
VIBRATION DAMPER HUS-503961401
