Husqvarna 221 LE Type 1 (2006-11) Chain Saw

Model: 221 LE Type 1 (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

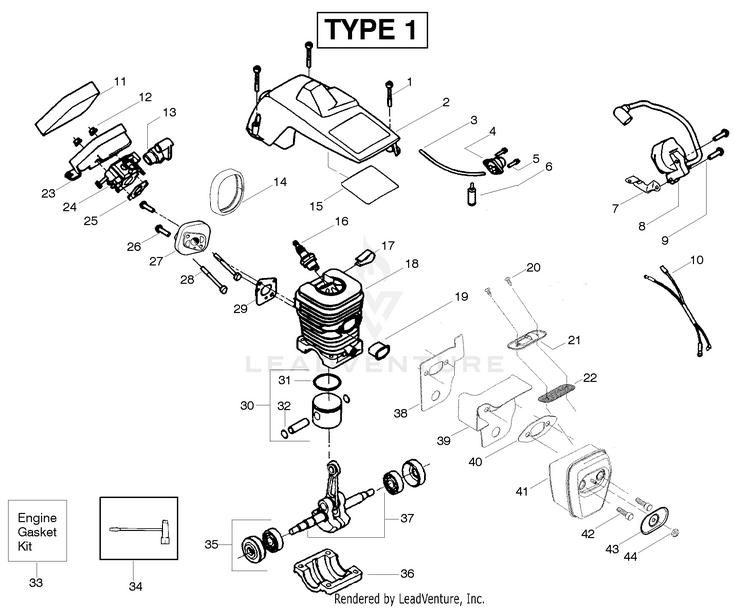

Engine - Type 1

...
...
1
Screw HUS-530016153
...
2
Assy-Cylinder Shield (includes # 15) HUS-530055638
...
3
Kit-Fuel Line (Small) HUS-530069247
...
4
Kit- Air Purge HUS-530071835
...
5
Screw HUS-530015780
...
6
Assy-Fuel Pick-up HUS-530095646
...
7
Strap-Ground HUS-530047442
...
8
Ignition Module HUS-530039198
...
9
Screw HUS-530015814
...
10
Assy-Wire Harness HUS-530049117
...
11
Foam- Air Filter HUS-530037793
...
12
Nut HUS-530016101
...
13
Grommet-Carb Adjust HUS-530035526
...
14
Seal-Carb Adapter HUS-530054144
...
15
Reflector-Heat HUS-530055698
...
16
BPMR7A NGK SPARK PLUG HUS-503235111
...
17
Clip-High Tension Lead HUS-530016136
...
18
Cylinder HUS-530012552
...
19
Insulator-Heat HUS-530037652
...
20
Screw-Outlet cover HUS-530016351
...
21
Cover - Outlet HUS-530055759
...
22
MUFFLER (Incl. 20,21) HUS-530071904
...
23
Air Filter Housing HUS-530047604
...
24
Kit-Carburetor (WT-599) HUS-530071409
...
24
Kit-Carburetor (W-9A) HUS-530071619
...
25
Gasket-Carb. HUS-530069608
...
26
Screw HUS-530016386
...
27
Carb. Adapter HUS-530049700
...
28
Screw HUS-530016187
...
29
Gasket-Carb Adaptor HUS-530069608
...
30
Kit-Piston (Incl. 31 & 32) HUS-530069719
...
31
Ring-Piston HUS-545160401
...
32
Retainer-Piston Pin HUS-530015697
...
33
Kit-Engine Gasket (Incl. 25, 29 & 40) HUS-530069608
...
34
Scrench HUS-530031163
...
35
Assy-Seal & Bearing HUS-530056363
...
36
Cap-Crankcase HUS-530037935
...
37
Assy-Crankshaft HUS-530047062
...
38
Backplate HUS-530054885
...
39
Guide-Outlet HUS-530054880
...
40
Gasket-Muffler HUS-530069608
...
41
Assy-Muffler (Incl. 38-40,42) HUS-530054886
...
42
Bolt-Muffler HUS-530016338
...
43
Cover-Bolt HUS-530055586
...
44
NUT 10MM BRASS HUS-574266401
...
44
Operator Manual Not Shown HUS-530163638
...
44
Decal-Warn. Instr. Not Shown HUS-530038257
