Husqvarna 220LE (2006-11) Chain Saw

Model: 220LE (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

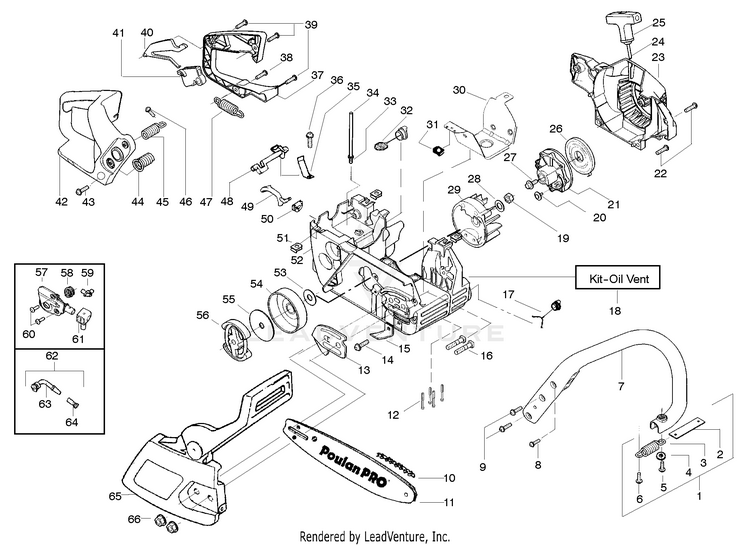

Starter

...
...
1
Assy.-Isolator HUS-530059667
...
2
AV Strap HUS-530037009
...
3
SPRING HUS-545006036
...
4
Washer HUS-530015123
...
5
Screw HUS-530016018
...
6
Screw HUS-530015843
...
7
HANDLE HUS-545048001
...
8
Screw HUS-530015940
...
9
Screw HUS-530015814
...
10
Chain -16" HUS-952051211
...
11
Bar-16" HUS-530044834
...
12
Screw HUS-530016132
...
13
Plate-Bar Mount. HUS-530038238
...
14
Screw HUS-530015814
...
15
Chain Catcher HUS-530029850
...
16
Bolt-Bar HUS-530016133
...
17
Assy-Oil Cap HUS-530057236
...
18
Kit-Oil Vent HUS-530071666
...
19
Nut-Flywheel HUS-530016134
...
20
Screw HUS-530016080
...
21
STARTER PULLEY HUS-545034301
...
22
Screw HUS-530015892
...
23
Housing-Fan HUS-530049335
...
24
Kit-Rope HUS-530069232
...
25
Handle-Starter HUS-530056402
...
26
SPRING STARTER HUS-545008015
...
27
Screw HUS-530015920
...
28
Washer-Flywheel HUS-530015127
...
29
Assy-Flywheel HUS-530039187
...
30
Shield-Heat HUS-530055183
...
31
Clip-"U" HUS-530055322
...
32
FUEL CAP ASSY W/RET HUS-577858501
...
33
Fitting-fuel line HUS-530023877
...
34
Kit-Fuel line (Large) HUS-530069216
...
35
Spring-Switch HUS-530016149
...
36
Screw HUS-530015775
...
37
Cover-Rear Handle HUS-530047581
...
38
Screw HUS-530015886
...
39
Screw HUS-530015906
...
40
Throttle Lockout HUS-530036098
...
41
Trigger-Throttle HUS-530036097
...
42
Handle-Rear HUS-530047582
...
45
SPRING HUS-545006036
...
46
Screw HUS-530015875
...
47
SPRING HUS-545006036
...
48
Lever-Switch HUS-530057473
...
49
Lever-Choke HUS-530057474
...
50
Grommet-Knob HUS-530049005
...
51
Nut-"U"-Type HUS-530015922
...
52
Assy-Chassis (Incl.fuel lines and caps ) HUS-530058733
...
53
Washer-Thrust HUS-530015907
...
54
Assy.-Clutch Drum w/bearing HUS-530047061
...
55
Washer-Clutch HUS-530015611
...
56
Assy. Clutch HUS-530014949
...
57
Kit-Oil Pump (Incl. 58,59,61) HUS-530071259
...
58
Gear-Worm Spring HUS-530037820
...
59
Elbow-Oil Pickup HUS-530049477
...
60
SCREW 6-19X.437 HUS-545227101
...
61
Seal Block HUS-530019206
...
62
Assy-Oil Pick-up (Incl. 63,64) HUS-530047663
...
63
Pick-up Oiler HUS-530038373
...
64
Filter-Oil HUS-530056533
...
65
Assy.-Chain Brake HUS-545139915
...
66
Nut-Bar Mounting HUS-530015917
