Husqvarna 22 RL (1989-10) Brush Cutter

Model: 22 RL (1989-10)

Back To Assemblies

Save Part Not Listed?
product name

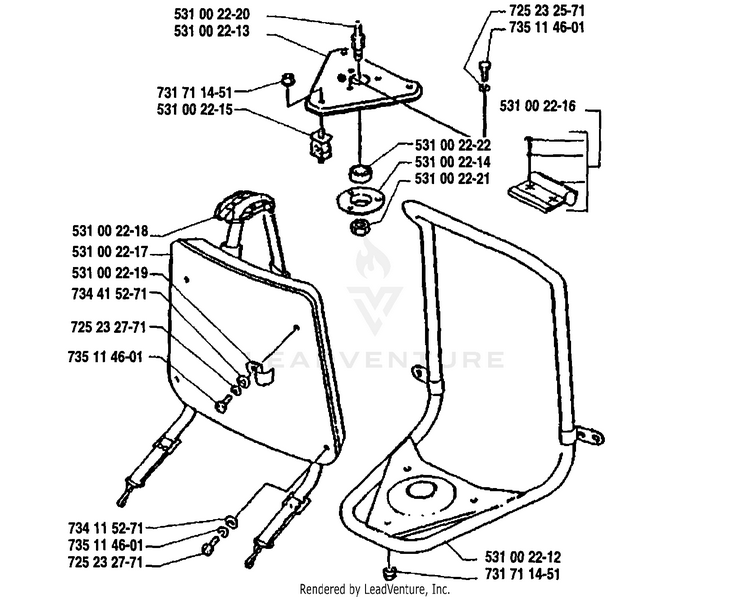

Frame

...
...
531002220
HUS-531002220
...
531002213
Bracket HUS-531002213
...
731711451
NUT HUS-731711451
...
531002215
Absorber HUS-531002215
...
531002218
HUS-531002218
...
531002217
Pad HUS-531002217
...
531002219
HUS-531002219
...
734415271
HUS-734415271
...
725232771
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
735114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
734115271
HUS-734115271
...
735114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
725232771
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
531002212
HUS-531002212
...
731711451
NUT HUS-731711451
...
531002216
Bracket HUS-531002216
...
531002222
HUS-531002222
...
531002214
HUS-531002214
...
531002221
HUS-531002221
...
725232571
SCREW HUS-725232571
...
735114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
