Husqvarna 22 RL (1989-09) Line Trimmer

Model: 22 RL (1989-09)

Back To Assemblies

Save Part Not Listed?
product name

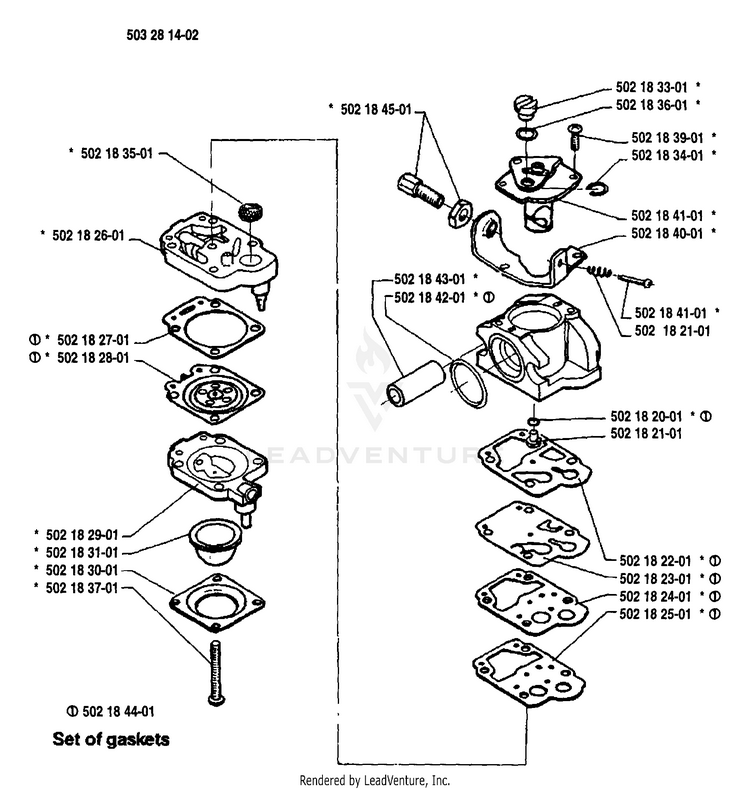

Carburetor Parts

...
...
5032814-02
CARBURETOR HUS-503281402
...
5021845-01
ADJUSTING SCREW HUS-502184501
...
5021835-01
FUEL INLET SCREEN HUS-501666101
...
5021826-01
PUMP BODY ASSY HUS-502182601
...
5021827-01
GASKET HUS-501362273
...
5021828-01
DIAPHRAGM HUS-503896701
...
5021843-01
HUS-5021843-01
...
5021842-01
HUS-5021842-01
...
5021829-01
BODY ASSY NLA HUS-502182901
...
5021831-01
PRIMER HUS-531002436
...
5021830-01
COVER/PRIMER PUMP HUS-502183001
...
5021837-01
HUS-5021837-01
...
5021844-01
CARBURETOR GASKET KIT HUS-531308504
...
5021820-01
O-RING HUS-531002421
...
5021821-01
JET CARB 25R .043 HUS-502182101
...
5021822-01
GASKET HUS-501363765
...
5021823-01
GASKET HUS-501363766
...
5021824-01
HUS-503584901
...
5021825-01
GASKET HUS-501363768
...
5021833-01
CONNECTION HUS-502183301
...
5021836-01
WASHER HUS-502183601
...
5021839-01
HUS-5021839-01
...
5021834-01
RETAINING RING HUS-502183401
...
5021841-01
HUS-5021841-01
...
5021840-01
SPRING IDLE SCREW HUS-530035168
...
5021841-01
HUS-5021841-01
...
5021821-01
JET CARB 25R .043 HUS-502182101
