Husqvarna 22 RL (1989-09) Line Trimmer

Model: 22 RL (1989-09)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

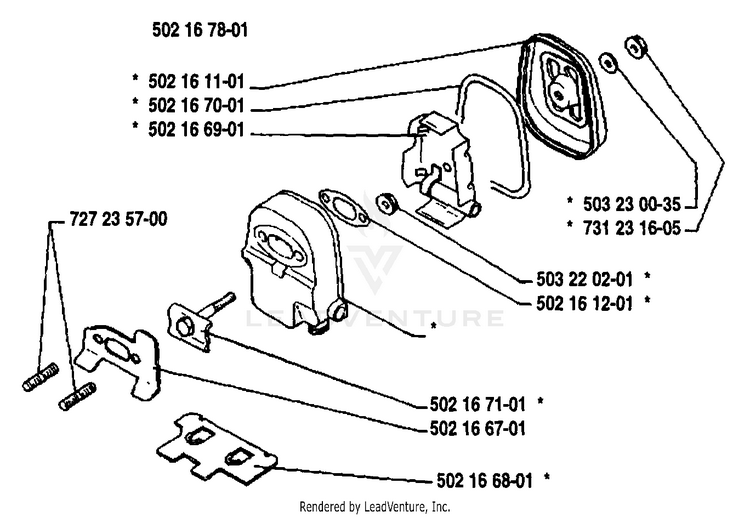

Muffler

...
...
5021678-01
MUFFLER ASS'Y NLA HUS-502167801
...
5021611-01
MUFFLER COVER HUS-502161101
...
5021670-01
GASKET HUS-502167001
...
5021669-01
PLATE W/PIPE NLA HUS-502166901
...
7272357-00
Bolt Stud HUS-727235700
...
5032300-35
WASHER 5.3X15 HUS-503230035
...
7312316-05
NUT HUS-731231605
...
5032202-01
Flange Nut HUS-503220201
...
5021612-01
FLANGE HUS-502161201
...
5021671-01
BOLT CPL HUS-502167101
...
5021667-01
GASKET MUFFLER HUS-502166701
...
5021668-01
GASKET HUS-502166801
