Husqvarna 22 R (1988-09) Line Trimmer

Model: 22 R (1988-09)

Save Part Not Listed?

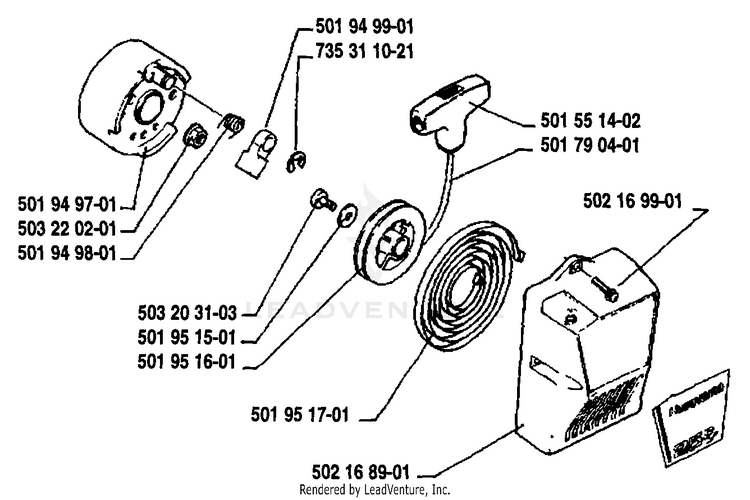

Starter Assembly

5019499-01

RACHET NLA HUS-501949901

7353110-21

Snap Ring HUS-735311021

5019497-01

Rotor HUS-501949701

5032202-01

Flange Nut HUS-503220201

5019498-01

RECOIL SPRING NLA HUS-501949801

5032031-03

SCREW HUS-724132755

5019515-01

Washer HUS-501951501

5019516-01

STARTER PULLEY HUS-501951601

5015514-02

STARTER HANDLE HUS-503543901

5017904-01

Starter Rope HUS-501790401

5021699-01

SCREW 5 X 23 HUS-502169901

5019517-01

SPRING HUS-531002462

5021689-01

STARTER HOUSING HUS-502168901

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
