Husqvarna 2101 (1990-06) Chain Saw

Model: 2101 (1990-06)

Back To Assemblies

Save Part Not Listed?
product name

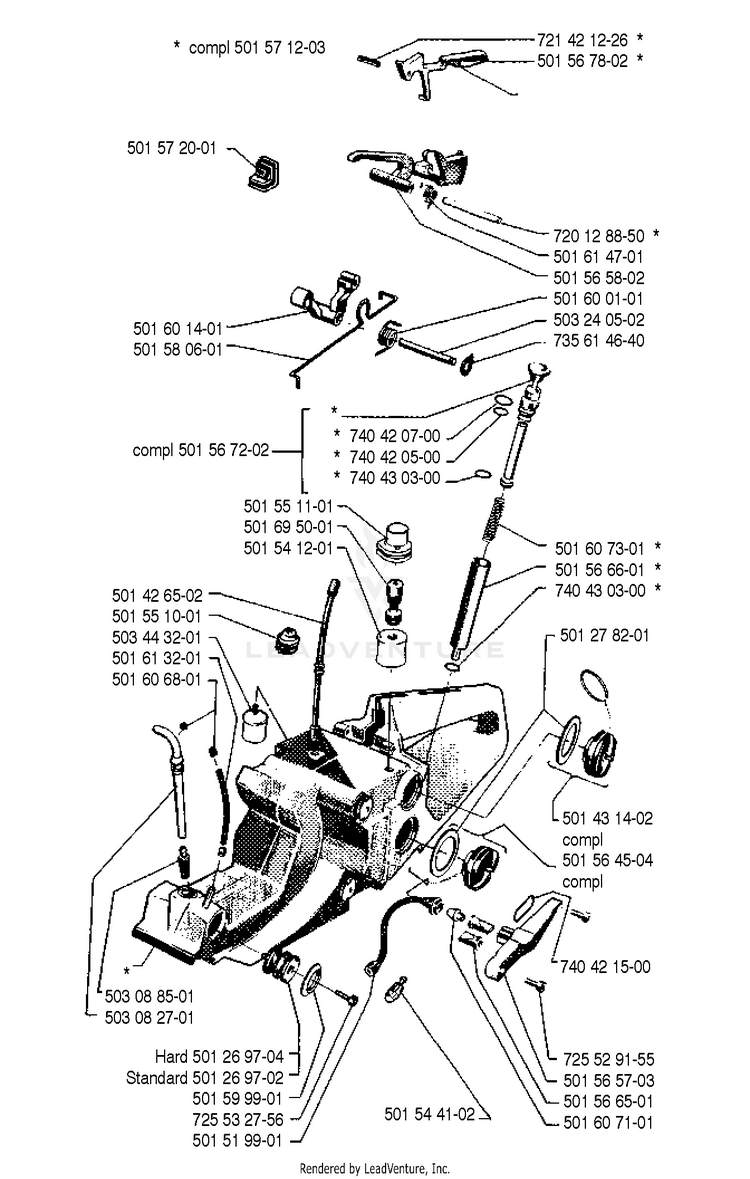

Tank Assembly

...
...
501571203
TANK UNIT CPL HUS-501571203
...
721421226
SPRING PIN 3X24 HUS-721421226
...
501567802
LOCK BUTTON NLA HUS-501567802
...
501572001
HUS-501572001
...
720128850
HUS-720128850
...
501514701
HUS-501514701
...
501565802
LEVER HUS-501565802
...
501600101
RETURN SPRING HUS-501600101
...
503240502
PIN 6X35 NLA HUS-503240502
...
735614640
COMPRESSION RING 5 HUS-735614640
...
501601401
LEVER HUS-501601401
...
501580601
THROTTLE ROD HUS-501580601
...
740420700
O-RING HUS-740420700
...
740420500
O-RING HUS-740420500
...
740430300
O-RING HUS-740430300
...
501567202
MANUAL OILPUMP HUS-501567202
...
501551101
SEAL HUS-501551101
...
501695001
HUS-501695001
...
501541201
HUS-501541201
...
501607301
SPRING HUS-501607301
...
501566601
TUBE HUS-501566601
...
501426502
FUEL HOSE HUS-501426502
...
501551001
SEAL HUS-501551001
...
503443201
KIT FUEL FILTER HUS-591375401
...
501613201
OIL HOSE NLA HUS-501613201
...
501606801
CLAMP HUS-501606801
...
740430300
O-RING HUS-740430300
...
501278201
WASHER HUS-501278201
...
501431402
TANK CAP HUS-501431402
...
501564504
OILTANK CAP HUS-501564504
...
740421500
O-RING HUS-740421500
...
503088501
OIL SCREEN HUS-503088501
...
503082701
OIL HOSE HUS-503082701
...
501269704
ANTIVIBRATION ELEMENT HUS-501269705
...
501269702
ANTIVIBE ELEMENT HUS-501269702
...
501599901
COLLAR HUS-501599901
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
501519901
OIL HOSE HUS-501519901
...
501544102
OIL SCREEN HUS-501544102
...
725529155
SCREW MC6S 4X12 HUS-725529155
...
501565703
VALVE HOUSE HUS-501565703
...
501566501
VALVE HUS-501566501
...
501607101
SLEEVE HUS-501607101
