Husqvarna 2101 (1987-04) Chain Saw

Model: 2101 (1987-04)

Back To Assemblies

Save Part Not Listed?
product name

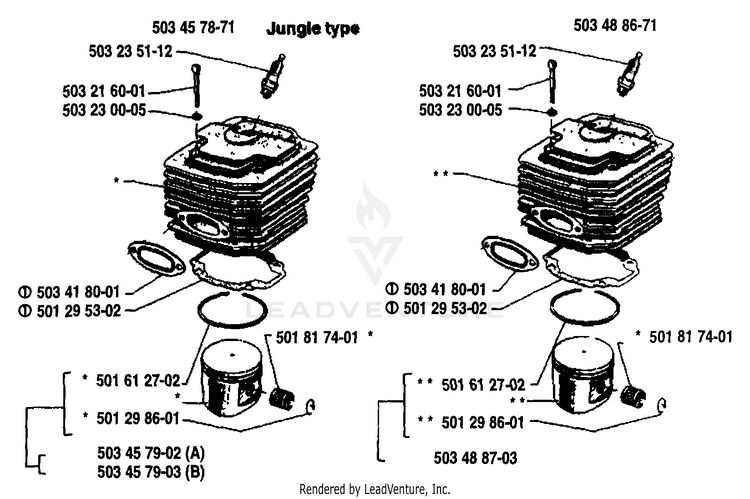

Piston/Cylinder

...
...
503457871
CYLINDER CPL HUS-503488671
...
503235112
BPMR6A NGK SPARK PLUG HUS-503235112
...
503216001
SCREW HUS-503216025
...
503230005
WASHER 6.5X11 HUS-503230005
...
503418001
GASKET HUS-503418001
...
501295302
GASKET HUS-501295303
...
501817401
SUPPORT BUSHING HUS-503256101
...
501298601
CLIP HUS-737441300
...
503457902
PISTON HUS-503488703
...
503457903
PISTON HUS-503488703
...
501612702
PISTON RING HUS-503289024
...
503488671
CYLINDER CPL HUS-503488671
...
503235112
BPMR6A NGK SPARK PLUG HUS-503235112
...
503216001
SCREW HUS-503216025
...
503230005
WASHER 6.5X11 HUS-503230005
...
503418001
GASKET HUS-503418001
...
501295302
GASKET HUS-501295303
...
501817401
SUPPORT BUSHING HUS-503256101
...
501612702
PISTON RING HUS-503289024
...
501298601
CLIP HUS-737441300
...
503488703
PISTON HUS-503488703
