Husqvarna 2101 (1987-04) Chain Saw

Model: 2101 (1987-04)

Back To Assemblies

Save Part Not Listed?
product name

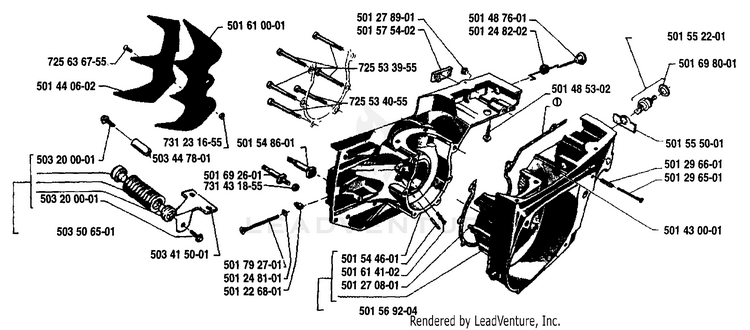

Crankcase Assembly

...
...
725636755
SCREW MF6S 6X14 HUS-725636755
...
501440602
HUS-501440602
...
731231655
NUT HUS-503222402
...
501610001
FELLING DOG HUS-501610001
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
503506501
AV MOUNT HUS-503496201
...
501692601
BAR BOLT HUS-501692601
...
731431855
HUS-731480055
...
501548601
BAR STUD HUS-501548601
...
503415001
SPRING RETAINER HUS-503415001
...
501792701
SCREW HUS-501792701
...
501248101
COUPLING HUS-501248101
...
501226801
PAWL HUS-501226801
...
503447801
CHAIN CATCHER HUS-503447801
...
501278901
BUFFER HUS-501278901
...
501487601
CHOKE CONTROL HUS-501487602
...
501248202
GROMMET HUS-501248202
...
725533955
SCREW MC6S 5X40 HUS-725533955
...
725534055
SCREW MC6S 5X45 HUS-725534055
...
501485302
BUFFER HUS-501485302
...
501575402
COVER HUS-501575402
...
501544601
OIL NIPPLE 4,5 MM HUS-501544601
...
501270801
GUIDE BUSHING HUS-593806001
...
501614102
NIPPLE HUS-501614102
...
501569204
HUS-501569204
...
501552201
HUS-501552201
...
501698001
NUT HUS-501698001
...
501555001
HUS-501555001
...
501296601
SPRING HUS-501296601
...
501296501
SCREW HUS-501296501
...
501430001
GROMMET HUS-501430001
