Husqvarna 21" MULTI CUT (917374456) (2008-02) Walk Mower

Model: 21" MULTI CUT (917374456) (2008-02)

Save Part Not Listed?
product name

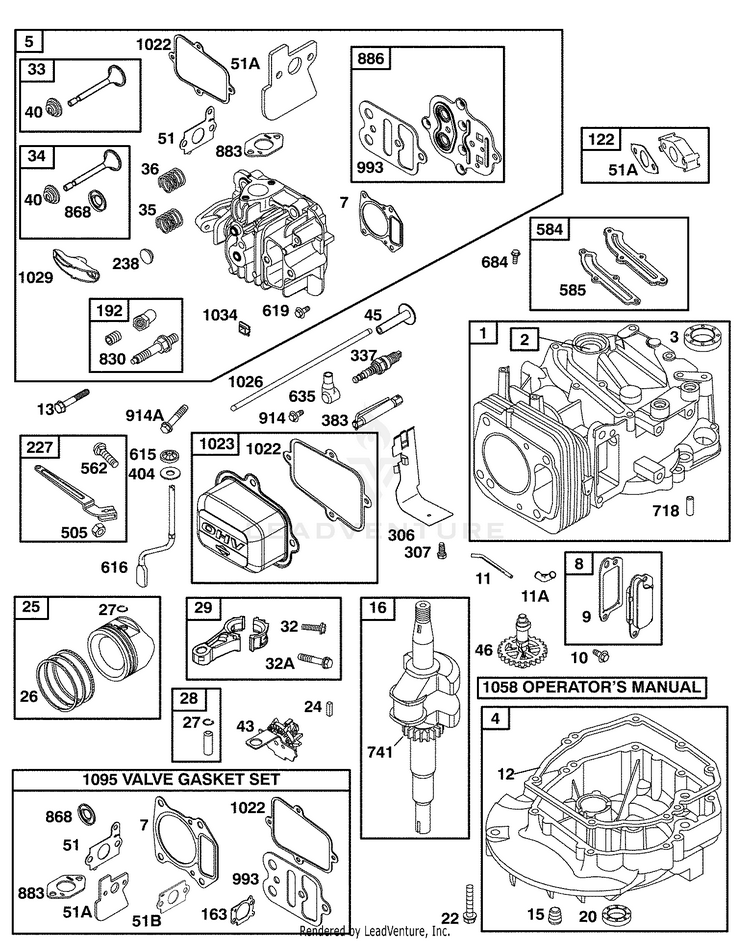

Briggs & Stratton 4-Cycle Engine

...
...
1
Cylinder Assembly HUS-692670
...
2
Kit-Bushing/Seal HUS-399269
...
3
Seal-Oil (Magneto Side) Included in Engine Gasket Set, Key No. 358 HUS-299819S
...
4
Sump-Engine HUS-493279
...
5
Head-Cylinder HUS-792381
...
7
Gasket-Cylinder Head Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095 HUS-697230
...
8
Breather Assembly HUS-495786
...
9
Gasket-Breather Included in Engine Gasket Set, Key No. 358 HUS-699833
...
10
Screw (Breather Assembly) HUS-691125
...
11
Tube-Breather HUS-691781
...
11A
Tube-Breather HUS-692937
...
12
Gasket-Crankcase Included in Engine Gasket Set, Key No. 358 HUS-692232
...
13
Screw (Cylinder Head) HUS-691137
...
15
Plug-Oil Drain HUS-691680
...
16
Crankshaft HUS-691456
...
20
Seal-Oil (PTO Side) Included in Engine Gasket Set, Key No. 358 HUS-399781S
...
22
Screw (Engine Sump) HUS-691092
...
23
Flywheel HUS-697610
...
24
Key-Flywheel HUS-222698S
...
25
Piston Assembly (Standard Size) HUS-795429
...
xx
Piston Assembly (.020" Oversize) HUS-795430
...
26
Ring Set (Standard) HUS-795431
...
xx
Ring Set (.020" Oversize) HUS-795432
...
27
Lock-Piston Pin HUS-691866
...
28
Pin-Piston HUS-499423
...
29
Rod-Connecting HUS-499424
...
32
Screw (Connecting Rod) HUS-691664
...
32A
Screw (Connecting Rod) HUS-695759
...
33
Valve-Exhaust HUS-499642
...
34
Valve-Intake HUS-499641
...
35
Spring-Valve (Intake) HUS-691304
...
36
Spring-Valve (Exhaust) HUS-691304
...
37
Guard-Flywheel HUS-793756
...
40
Retainer-Valve HUS-692194
...
43
Slinger-Governor/Oil HUS-691997
...
45
Tappet-Valve HUS-690977
...
46
Camshaft HUS-694039
...
48
Short Block HUS-692748
...
51
Gasket-Intake Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095 HUS-692668
...
51A
Gasket-Intake Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095 HUS-692555
...
51B
Gasket-Intake Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095 HUS-697735
...
55
Housing-Rewind Starter HUS-691421
...
58
Rope-Starter (Cut to Required Length) HUS-697316
...
60
Grip-Starter Rope HUS-281434S
...
65
Screw (Rewind Starter) HUS-690837
...
78
Screw (Flywheel Guard) HUS-691108
...
95
Screw (Throttle Valve) HUS-691636
...
97
Shaft-Throttle HUS-790121
...
104
Pin-Float Hinge Included in Carb. Overhaul Kit, Key No. 121 HUS-691242
...
117
Jet-Main (Standard) HUS-498981
...
118
Jet-Main (High Altitude) HUS-498978
...
121
Kit-Carburetor Overhaul HUS-792383
...
122
Spacer-Carburetor HUS-792382
...
125
Carburetor HUS-790120
...
127
Plug-Welch Included in Carb. Overhaul Kit, Key No. 121 HUS-694468
...
130
Valve-Throttle HUS-696564
...
133
Float-Carburetor HUS-398187
...
134
Valve-Needle/Seat Included in Carb. Overhaul Kit, Key No. 121 HUS-398188
...
137
Gasket-Float Bowl Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 HUS-693981
...
163
Gasket-Air Cleaner Included in Engine Gasket Set, Key No. 358 Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 Included in Valve Gasket Set, Key No. 1095 HUS-691894
...
187
Line-Fuel (Cut to Required Length) HUS-791766
...
188
Screw (Control Bracket) HUS-691147
...
190
Screw (Fuel Tank) HUS-690940
...
192
Ball-Rocker Arm HUS-694543
...
202
Link-Mechanical Governor HUS-691303
...
209
Spring-Governor HUS-691851
...
222
Bracket-Control HUS-697614
...
227
Control Lever-Governor HUS-691467
...
238
Cap-Valve HUS-691300
...
259
Bracket-Casing Clamp HUS-691189
...
276
Washer-Sealing Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 HUS-271716
...
287
Screw (Dipstick Tube) HUS-690940
...
300
Muffl er HUS-697590
...
304
Housing-Blower HUS-695976
...
305
Screw (Blower Housing) HUS-691108
...
306
Shield-Cylinder HUS-691232
...
307
Screw (Cylinder Shield) HUS-690345
...
332
Nut (Flywheel) HUS-690662
...
333
Armature-Magneto HUS-802574
...
334
Screw (Armature Magneto) HUS-691061
...
337
Plug-Spark HUS-692051
...
356
Wire-Stop HUS-692390
...
358
Gasket Set-Engine HUS-795442
...
363
Puller-Flywheel HUS-19069
...
365
Screw (Carburetor) HUS-691129
...
383
Wrench-Spark Plug HUS-19374S
...
404
Washer (Governor Crank) HUS-690272
...
425
Screw (Air Cleaner Cover) HUS-690244
...
443
Screw (Air Cleaner Primer Base) HUS-690255

Briggs & Stratton 4-Cycle Engine

...

No Parts Available for this Schematic

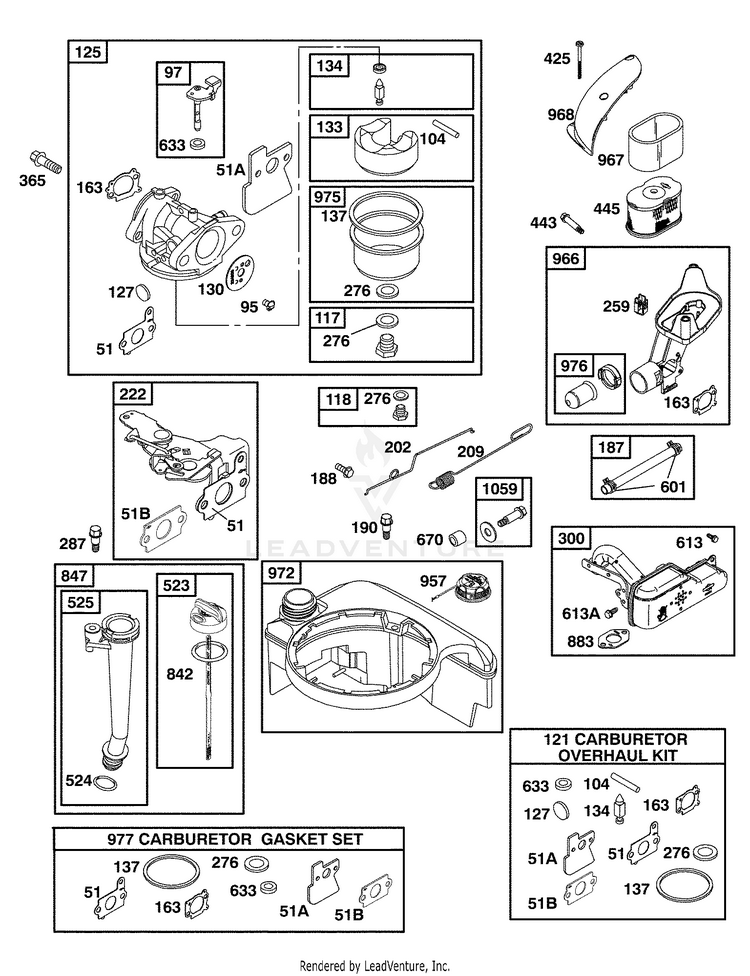

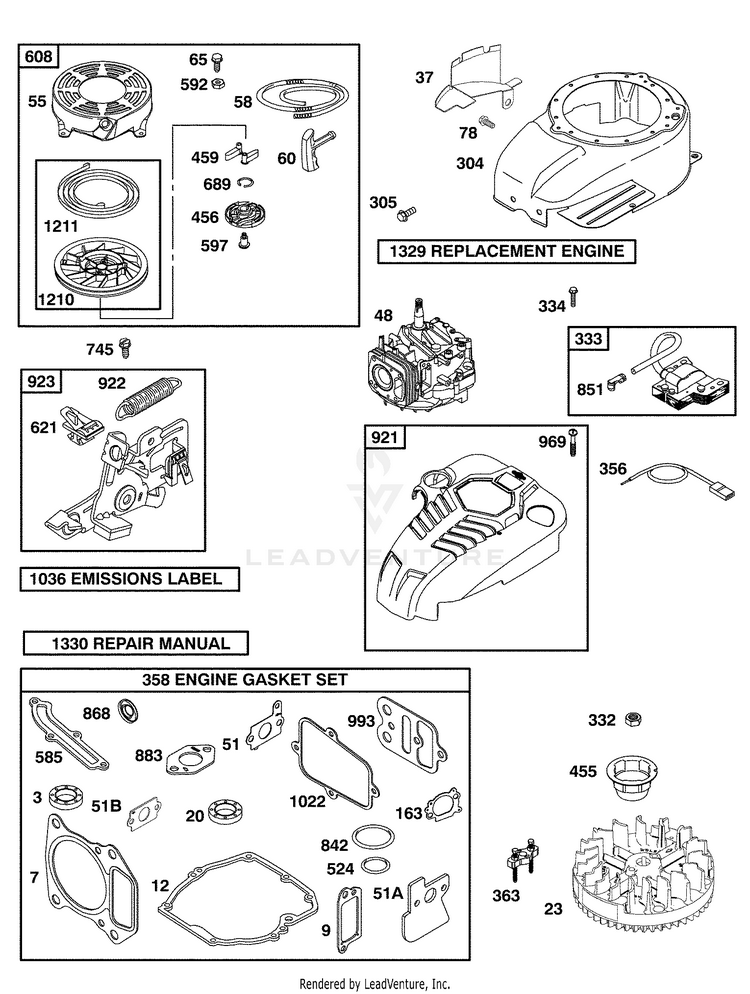

Briggs & Stratton 4-Cycle Engine

...
...
445
Filter, Air Cleaner Cartridge HUS-697029
...
455
Cup-Flywheel HUS-791960
...
456
Plate-Pawl Friction HUS-692299
...
459
Pawl-Ratchet HUS-281505S
...
505
Nut (Governor Control Lever) HUS-691251
...
523
Dipstick HUS-499621
...
524
Seal-Dipstick Tube Included in Engine Gasket Set, Key No. 358 HUS-692296
...
525
Tube-Dipstick HUS-495265
...
562
Bolt (Governor Control Lever) HUS-92613
...
584
Cover-Breather Passage HUS-697734
...
585
Gasket-Breather Passage Included in Engine Gasket Set, Key No. 358 HUS-691879
...
592
Nut (Rewind Starter) HUS-690800
...
597
Screw (Pawl Friction Plate) HUS-691696
...
601
Clamp-Hose HUS-791850
...
608
Starter-Rewind HUS-497680
...
613
Screw (Muffler) HUS-691108
...
613A
Screw (Muffler) HUS-691140
...
615
Retainer-Governor Shaft HUS-690340
...
616
Crank-Governor HUS-698801
...
619
Screw (Cylinder Head Plate) HUS-691108
...
621
Switch-Stop HUS-692310
...
633
Seal-Throttle Shaft Included in Carb. Overhaul Kit, Key No. 121 Included in Carb. Gasket Set, Key No. 977 HUS-691321
...
635
Boot-Spark Plug HUS-66538S
...
670
Spacer-Fuel Tank HUS-692294
...
684
Screw (Breather Passage Cover) HUS-690345
...
689
Spring-Friction HUS-691855
...
718
Pin-Locating HUS-690959
...
741
Gear-Timing HUS-794388
...
745
Screw (Brake) HUS-691648
...
830
Stud (Rocker Arm) HUS-694544
...
842
Seal-O Ring (Dipstick Tube) Included in Engine Gasket Set, Key No. 358 HUS-691031
...
847
Assembly-Dipstick/Tube HUS-692047
...
851
Terminal-Spark Plug HUS-493880S
...
868
Seal-Valve Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095 HUS-795440
...
883
Gasket-Exhaust Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095 HUS-691893
...
886
Gasket Kit, Cylinder Head/Plate HUS-696268
...
914
Screw (Rocker Cover) HUS-691108
...
914A
Screw (Rocker Cover) HUS-691127
...
921
Cover-Blower Housing HUS-691465
...
922
Spring-Brake HUS-692135
...
923
Brake HUS-695891
...
957
Cap-Fuel Tank HUS-793606
...
966
Base-Air Cleaner Primer HUS-690243
...
967
Filter-Pre Cleaner HUS-273356S
...
968
Cover-Air Cleaner HUS-691342
...
969
Screw (Blower Housing Cover) HUS-691138
...
972
Tank-Fuel HUS-699374
...
975
Bowl-Float HUS-493640
...
976
Primer-Carburetor HUS-694395
...
977
Set-Carburetor Gasket HUS-792385
...
993
Gasket, Cylinder Head Plate Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095 HUS-694088
...
1022
Gasket-Rocker Cover Included in Engine Gasket Set, Key No. 358 Included in Valve Gasket Set, Key No. 1095 HUS-691890
...
1023
Cover-Rocker Arm HUS-499624
...
1026
Rod-Push HUS-795444
...
1029
Arm-Rocker HUS-691230
...
1034
Guide-Push Rod HUS-691343
...
1058
Operator’s Manual HUS-277102TRI
...
1059
Kit-Screw/Washer HUS-692311
...
1095
Set-Valve Gasket HUS-792386
...
1210
Assembly-Pulley/Spring (Pulley) HUS-498144
...
1211
Assembly-Pulley/Spring (Spring) HUS-498144
...
1329
Replacement Engine (Replacement engine listed is not available in the State of California. Repair with individual parts.) HUS-12S502-0025
...
1330
Repair Manual HUS-272147
...
xx
Spark Arrester (available accessory) HUS-398067

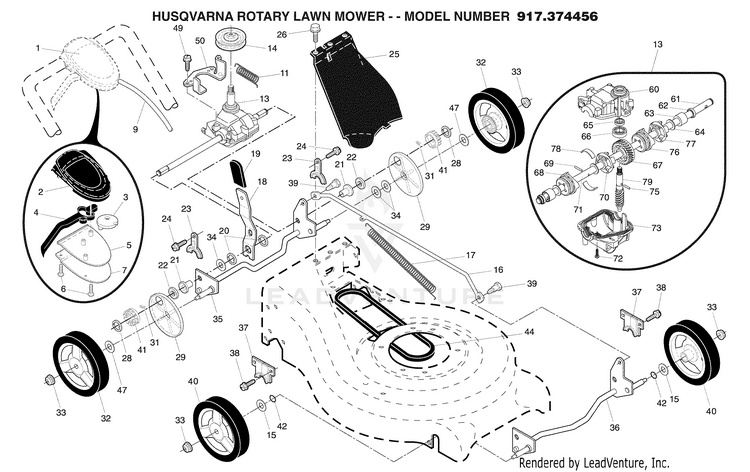

Husqvarna Rotary Lawn Mower

...
...
1
Drive Control Assembly HUS-407344
...
2
Cover, Top HUS-406260X460
...
3
Pulley HUS-406262
...
4
Lever, Drive Control HUS-190039
...
5
Cover, Bottom HUS-406261X460
...
6
Screw HUS-181698
...
7
Mounting Bracket HUS-400235X479
...
9
Cable, Drive HUS-406258
...
11
Spring, Return HUS-406558
...
13
Gear Case Assembly HUS-404839
...
14
Pulley, Drive HUS-193443
...
15
Washer, Flat HUS-88348
...
16
Rod, Connecting HUS-407147
...
17
Spring, Extension HUS-409616
...
18
Spring, Selector HUS-418835X004
...
19
Knob, Selector Spring HUS-189808X418
...
20
E-Ring 7/8 HUS-12000022
...
21
Bearing, Support HUS-404838
...
22
Bearing, Ball HUS-191039
...
23
Retainer, Drive Assembly HUS-161118X004
...
24
Screw, Tapping, Hex Head 1/4-20 x 3/4 HUS-17060410
...
25
Cover Drive HUS-199775X418
...
26
Screw, Threaded, Rolled #10-25 x .50 HUS-750634
...
28
E-Ring 7/16 HUS-12000058
...
29
Cover, Dust, Wheel HUS-189403
...
31
Pawl HUS-404845
...
32
Wheel & Tire Assembly, Rear 8 x 1-3/4 HUS-405746X460
...
33
Nut, Flangelock 3/8-16 HUS-409148
...
34
Washer HUS-851226
...
35
Shaft Assembly, Rear HUS-403102X004
...
36
Shaft Assembly, Front HUS-407175X004
...
37
Retainer, Front Shaft HUS-161463
...
38
Screw #12 x 5/8 HUS-163409
...
39
Bolt, Shoulder, Semi-Gimlett Point HUS-407059
...
40
Wheel & Tire Assembly, Front 8 x 1-3/4 HUS-401273X460
...
41
Pinion HUS-404835
...
42
O-Ring HUS-197480
...
44
V-Belt HUS-406580
...
47
Washer, Flat HUS-67725
...
49
Screw, Hi-Lo Thread HUS-163409
...
50
Belt Keeper HUS-404832X004
...
60
Case, Upper HUS-412736
...
61
Shaft, Output, Long HUS-412757
...
62
Seal, Output Shaft HUS-183508
...
63
Bushing HUS-183511
...
64
Washer HUS-183509
...
65
Seal, Worm Shaft HUS-183514
...
66
Bearing, Ball HUS-183506
...
67
Gear, 28 Teeth HUS-412742
...
68
Fixed Dog Clutch, LH HUS-412739
...
69
Pin, Output Shaft HUS-412741
...
70
Movable Dog Clutch, LH HUS-412740
...
71
Shaft, Output, Short HUS-412756
...
72
Screw, Case HUS-183513
...
73
Case, Lower HUS-412747
...
75
Pin, Worm Shaft HUS-412746
...
76
Movable Dog Clutch, RH HUS-412743
...
77
Fixed Dog Clutch, RH HUS-412744
...
78
Spring, Leaf HUS-410731
...
79
Shaft, Worm HUS-412737

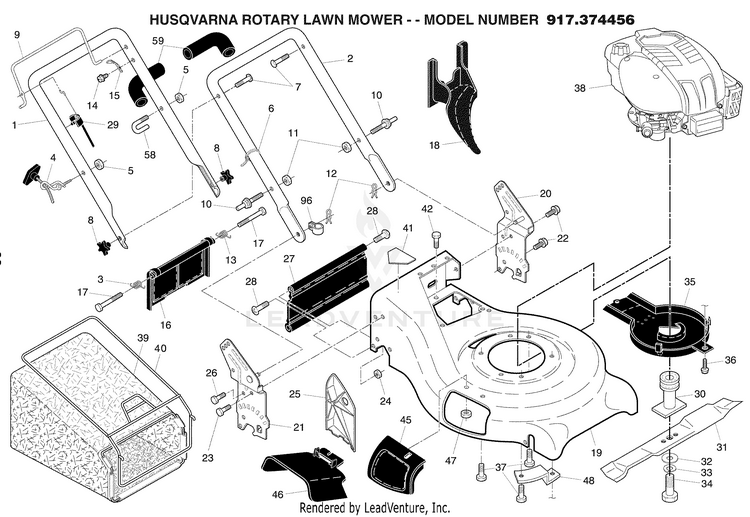

Repair Parts

...
...
1
Upper Handle Assembly (Includes Foam Grip) HUS-199982
...
2
Handle, Lower HUS-193664X498
...
3
Spring, Rear Door, RH HUS-405416
...
4
Rope Guide HUS-194788
...
5
Nut, Hex, with Lockwasher Insert 1/4-20 HUS-132004
...
6
Wire, Tie HUS-66426
...
7
Bolt, Handle 5/16-18 x 2-5/8 HUS-191574
...
8
Knob, Handle HUS-185588
...
9
Control Bar HUS-194580X422
...
10
Pin, Handle Adjustment HUS-188821
...
11
Nut, Hex HUS-751153
...
12
Cotter, Hairpin HUS-51793
...
13
Spring, Rear Door, LH HUS-405415
...
14
Screw HUS-750634
...
15
Bracket, Upstop HUS-850733X004
...
16
Rear Door Assembly HUS-401815X428
...
17
Bolt, Rear Door HUS-184193
...
18
Plug, Mulcher HUS-198170
...
19
Kit, Housing HUS-410453
...
20
Handle Bracket Asembly, LH HUS-193917X422
...
21
Handle Bracket Assembly, RH HUS-193916X422
...
22
Screw, Hex Washer Head HUS-150078
...
23
Bolt, Hex Head 5/16-18 x 5/8 HUS-163183
...
24
Nut, Hex, with Lockwasher Insert 5/16-18 HUS-73800500
...
25
Baffl e, Side HUS-161333
...
26
Screw, Hi-Lo Thread #12 x 5/8 HUS-163409
...
27
Skirt, Rear HUS-408442
...
28
Screw, Hinge 1/4-20 x 1.25 HUS-88652
...
29
Cable, Operator Presence HUS-191221
...
30
Blade Adapter / Pulley HUS-189179
...
31
Blade, 21" HUS-406712
...
32
Washer HUS-851074
...
33
Washer, Lock HUS-850263
...
34
Bolt, Hex Head HUS-851084
...
35
Debris Shield HUS-405843
...
36
Bolt HUS-192325
...
37
Bolt, Engine HUS-150406
...
39
Grassbag HUS-409726
...
40
Frame, Grassbag HUS-411951
...
41
Danger Decal HUS-404763
...
42
Screw HUS-54583
...
45
Mulcher Door Assembly HUS-183058X418
...
46
Discharge Guard HUS-169699X418
...
47
Nut, Hex HUS-88349
...
48
Mounting Bracket, Debris Shield HUS-188839X004
...
58
Clip, Packaging HUS-182003
...
59
Grip, Foam HUS-182748
...
96
Clip, Cable HUS-197991
...
xx
Warning Decal (not shown) HUS-404764
...
xx
Owner’s Manual, English / Spanish Available accessories not included with lawn mower: HUS-419903
...
xx
Gas Can (2.5 Gallon Container) HUS-7133623
...
xx
Fuel Stabilizer HUS-7133500
...
xx
SAE 30W Oil (20 Ounce Bottle) HUS-7133000
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
