Husqvarna 2075, 2075C, 20750C Type 5 (2007-07) Chain Saw

Model: 2075, 2075C, 20750C Type 5 (2007-07)

Save Part Not Listed?
product name

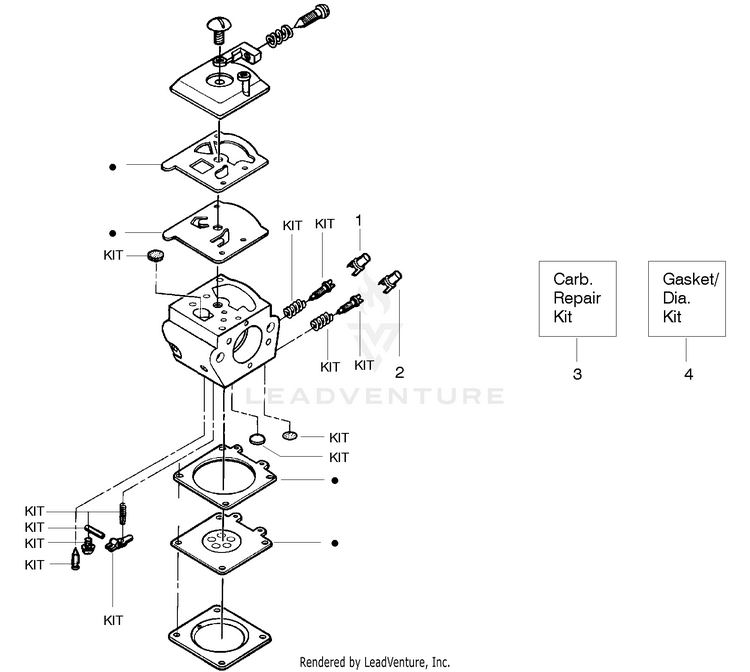

Carburetor Assembly

...
...
1
Limiter Cap-High (brown) HUS-530038479
...
2
Limiter Cap-Low (tan) HUS-530038478
...
3
Carburetor Repair Kit (KIT= Indicates Contents) HUS-530069826
...
4
Gasket Diaphragm Kit (Indicates Contents) HUS-530069844

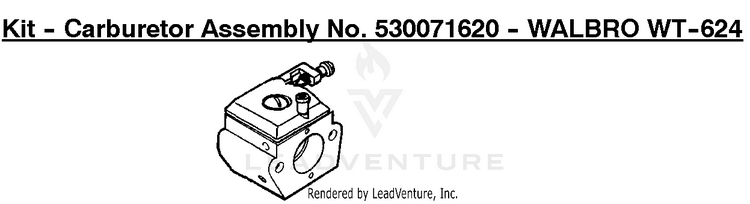

Kit - Carburetor Assembly

...
...
530071620
Kit-Carburetor (Walbro-WT-89) HUS-545081885

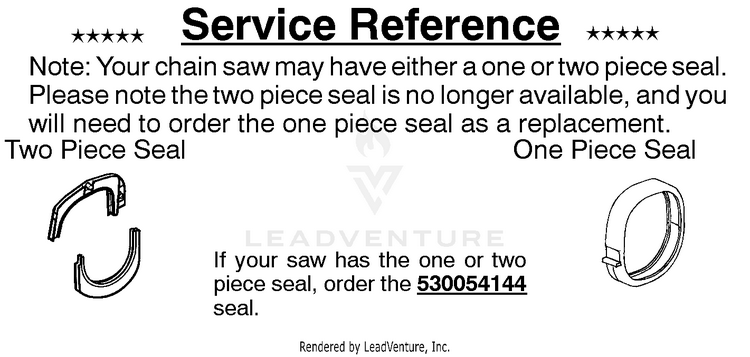

Service Reference

...

No Parts Available for this Schematic

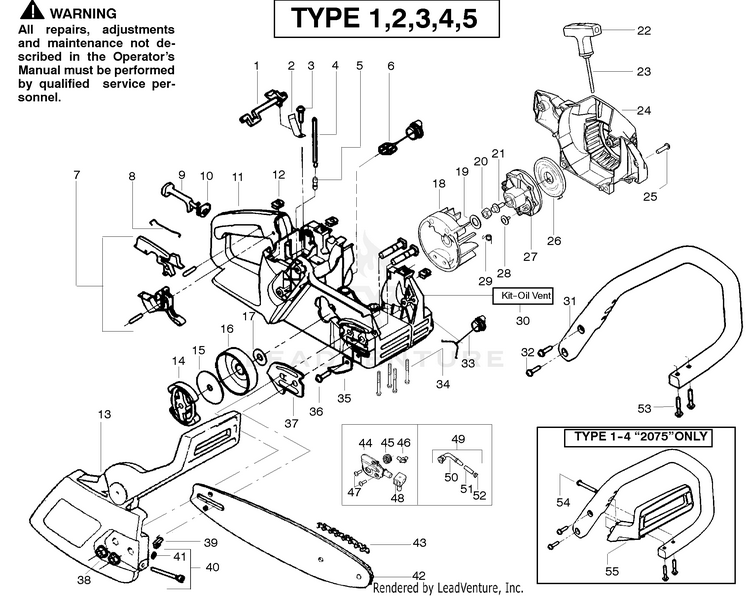

Starter - Type 1-5

...
...
1
Lever-Switch HUS-530038227
...
2
Spring-Switch HUS-530016149
...
3
Screw HUS-530015775
...
4
Kit-Fuel Line (Large) HUS-530069216
...
5
Fitting-fuel line HUS-530023877
...
6
FUEL CAP ASSY W/RET HUS-577858501
...
7
Kit-Trigger & Lockout (Includes Pin) HUS-530071305
...
8
Wire-Throttle HUS-530037809
...
9
Lever-Choke HUS-530047989
...
10
Grommet-Choke Knob HUS-530038406
...
11
Assy-Chassis 2075 HUS-530069822
...
11
Assy-Chassis 2075C HUS-530056605
...
11
Assy-Chassis 2075OC HUS-530055588
...
12
Nut-Speed HUS-530015922
...
13
Assy.-Chain Brake HUS-545139906
...
13
Assy-Chainbrake 2075C HUS-530055190
...
13
Assy-Chain Brake HUS-545139902
...
14
Assy.-Clutch HUS-530014949
...
15
Washer-Clutch HUS-530015611
...
16
Assy-Drum W/brg. HUS-530047061
...
17
Washer-Thrust HUS-530015907
...
18
FLYWHEEL HUS-530063575
...
19
Washer-Flywheel HUS-530015127
...
20
Nut-Flywheel HUS-530016134
...
21
Screw HUS-530015920
...
22
Handle-Starter HUS-530056402
...
23
Kit-Rope HUS-530069232
...
24
Housing-Fan 2075 HUS-530049334
...
24
Housing-Fan 2075C HUS-530055188
...
24
Housing-Fan 2075OC HUS-530056049
...
25
Screw HUS-530015892
...
26
SPRING STARTER HUS-545008015
...
27
STARTER PULLEY HUS-545034301
...
28
Screw HUS-530016080
...
29
Spring-starter dog HUS-530023817
...
30
Kit-Oil Vent HUS-530071666
...
31
Handle-Front HUS-530059173
...
32
Screw HUS-530015814
...
33
Assy-Oil Cap HUS-530057236
...
34
Screw HUS-530016132
...
35
Chain Catcher HUS-530029850
...
36
Screw HUS-530015814
...
37
Plate-Bar Mounting HUS-530038238
...
38
Nut-Bar Mounting HUS-530015917
...
39
Pin-Bar Adjust HUS-530015826
...
40
Kit-Bar Adj. (Incl 39,41) HUS-530069611
...
41
Retainer-Bar Adjust HUS-530038593
...
42
Bar-14" 2075 HUS-952044368
...
42
Bar-16" 2075 HUS-952044370
...
42
Bar-16" 2075c,2075oc HUS-530044836
...
42
Bar-18" 2075 HUS-952044418
...
43
Chain-14" HUS-952051209
...
43
Chain-16" HUS-952051211
...
43
Chain-18" HUS-952051338
...
44
Kit-Oil Pump (Incl 45,46,48) HUS-530071259
...
45
Gear-Worm Spring HUS-530037820
...
46
Elbow-Oil Pickup HUS-530049477
...
47
SCREW 6-19X.437 HUS-545227101
...
48
Block-Seal HUS-530019206
...
49
Assy-Oil-Pickup (Incl. 50,52) HUS-530047663
...
50
Pickup-Oiler HUS-530038373
...
51
Filter-Oil HUS-530056533
...
52
Filter-Oil HUS-530056533
...
53
Screw HUS-530015940
...
54
Bolt-Handguard HUS-530016020
...
55
Handguard HUS-530038224

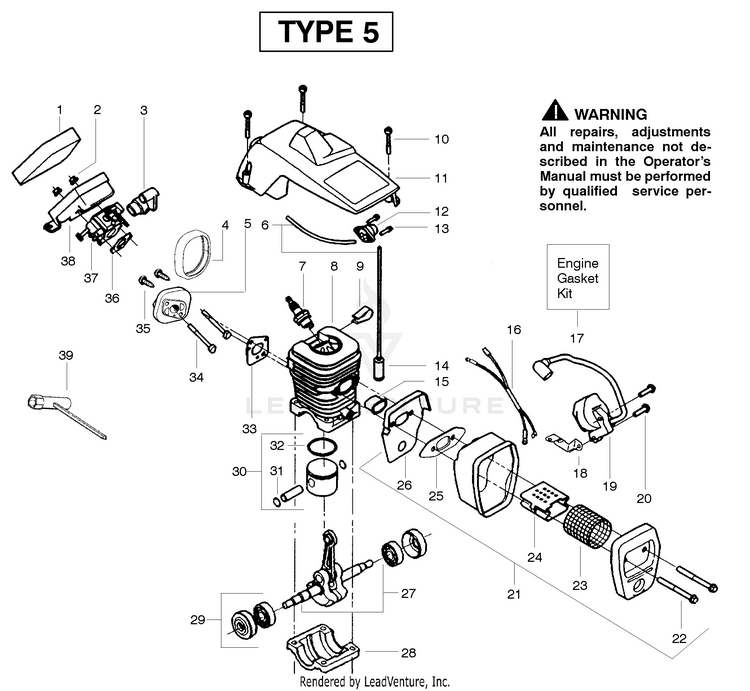

Starter - Type 5

...
...
1
Foam- Air Filter HUS-530037793
...
2
Nut HUS-530016101
...
3
Grommet-Carb Adjust HUS-530035526
...
4
Seal-Carb Adapter HUS-530054144
...
5
Carb. Adapter HUS-530049700
...
6
Fuel Line Kit (Small) HUS-530069247
...
7
BPMR7A NGK SPARK PLUG HUS-503235111
...
8
Cylinder HUS-530012550
...
9
Clip-High Tension Lead HUS-530016136
...
10
Screw HUS-530016153
...
11
Cylinder Shield HUS-530071310
...
12
Kit- Air Purge HUS-530071835
...
13
Screw HUS-530015780
...
14
Fuel Pick-up Ass’y. HUS-530095646
...
15
Heat Insulator HUS-530037652
...
16
Assy. -Wire Harness HUS-530052296
...
17
Kit-Engine Gasket (Incl. 25, 33 & 36) HUS-530069608
...
18
Strap-Ground HUS-530047442
...
19
Module- Ignition HUS-530039198
...
20
Screw HUS-530015814
...
21
MUFFLER (Incl. 22-26) HUS-530071904
...
22
Screw HUS-530016132
...
23
Screen-Spark HUS-530036103
...
24
Diffuser-Muffler HUS-530037813
...
25
Gasket-Muffler (kit) HUS-530069608
...
26
Backplate-Muffler HUS-530049870
...
27
Assy.-Crankshaft HUS-530047062
...
28
Cap-Crankcase HUS-530037935
...
29
Assy.-Seal & Bearing HUS-530056363
...
30
Kit-Piston (Incl. 31 & 32) HUS-530071408
...
31
Retainer-Piston Pin HUS-530015697
...
32
Ring-Piston HUS-545160401
...
33
Gasket-Carb. Adap.(kit) HUS-530069608
...
34
Screw HUS-530016187
...
35
Screw HUS-530016386
...
36
Gasket-Carb. (kit) HUS-530069608
...
37
Kit-Carburetor (Walbro-WT-89) HUS-545081885
...
38
Air Filter Housing HUS-530057480
...
39
Wrench-Bar HUS-530031163
...
39
Operator Manual Not Shown HUS-530163675
...
39
Decal Instruction Not Shown HUS-530057268
...
39
Decal Stop Not Shown HUS-530038486
