Husqvarna 2055 Type 7 (2008-03) Chain Saw

Model: 2055 Type 7 (2008-03)

Save Part Not Listed?
product name

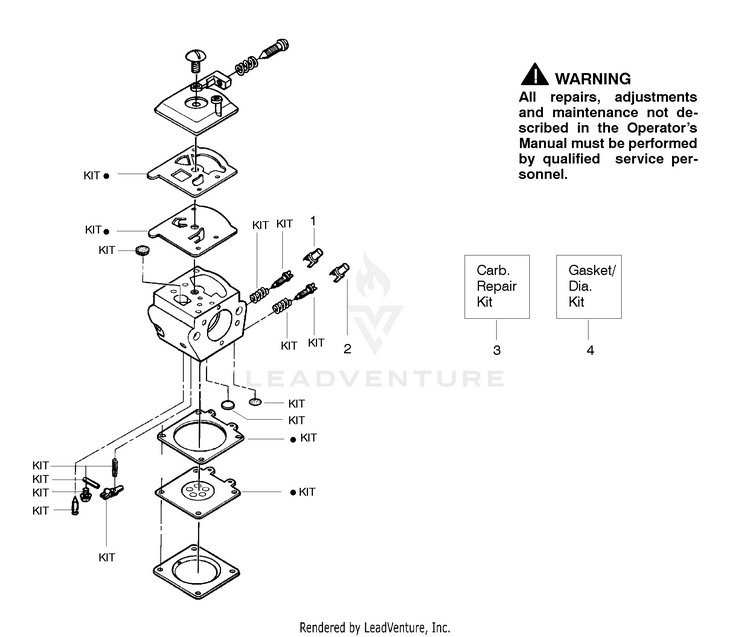

Carburetor

...
...
1
Limiter Cap-High HUS-530038479
...
2
Limiter Cap-Low HUS-530038478
...
3
Carburetor Repair Kit (KIT= Indicates Contents) HUS-530069826
...
4
Gasket Diaphragm Kit THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY. HUS-530069844

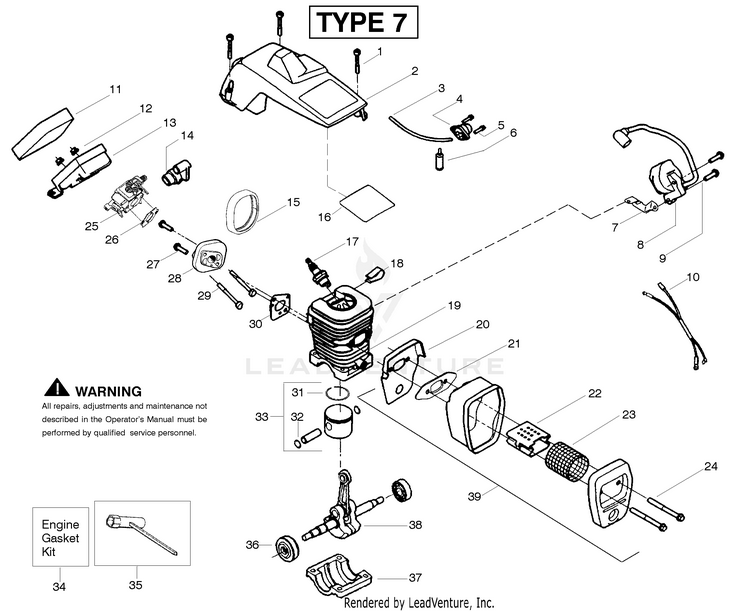

Engine - Type 7

...
...
1
Screw HUS-530016153
...
2
Assy-Cylinder Shield (Includes # 16) HUS-530055637
...
3
Kit-Fuel Line (Small) HUS-530069247
...
4
Kit- Air Purge (Incl. #5) HUS-530071835
...
5
Screw HUS-530015780
...
6
Assy-Fuel Pick-up HUS-530095646
...
7
Strap-Ground HUS-530047442
...
8
Ignition Module HUS-530039198
...
9
Screw HUS-530015814
...
10
Assy-Wire Harness HUS-530052296
...
11
Foam- Air Filter HUS-530037793
...
12
Nut HUS-530016101
...
13
Assy- Air Box HUS-530057480
...
14
Grommet-Carb Adjust HUS-530035526
...
15
Seal-Carb Adapter HUS-530054144
...
16
Reflector-Heat HUS-530055698
...
17
BPMR7A NGK SPARK PLUG HUS-503235111
...
18
Clip-High Tension Lead HUS-530016136
...
19
Cylinder HUS-530012550
...
20
Backplate-Muffler HUS-530049870
...
21
Gasket-Muffler(kit) HUS-530069608
...
22
Diffuser-Muffler HUS-530037813
...
23
Screen-Spark HUS-530036103
...
24
Bolt-Muffler HUS-530016132
...
25
Kit-Carburetor Walbro (WT-89) (Incl. Grommet) HUS-545081885
...
26
Gasket-Carb. (kit) HUS-530069608
...
27
Screw HUS-530016386
...
28
Carb. Adapter HUS-530049700
...
29
Screw HUS-530016187
...
30
Gasket- Adaptor(kit) HUS-530069608
...
31
Ring-Piston HUS-545160401
...
32
Retainer-Piston Pin HUS-530015697
...
33
Kit-Piston (Incl. 31 & 32) HUS-530071408
...
34
Kit-Engine Gasket (Incl. 21, 26 & 30) HUS-530069608
...
35
Bar Wrench HUS-530031163
...
36
Assy-Seal & Bearing HUS-530056363
...
37
Cap-Crankcase HUS-530037935
...
38
Assy-Crankshaft HUS-530047062
...
39
MUFFLER (Incl . 20-24) HUS-530071904
...
39
Manuals Not Shown HUS-545123537
...
39
Decal-Warning Not Shown HUS-530057757
...
39
Decal-Start Inst. Not Shown HUS-530059229

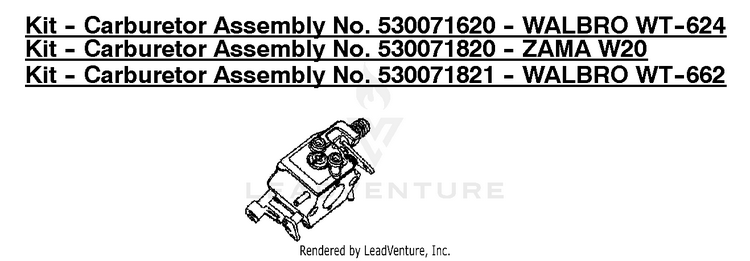

Kit - Carburetor Assembly

...
...
530071620
Kit-Carburetor (Walbro-WT-89) HUS-545081885
...
530071820
CARBURETOR HUS-530071820
...
530071821
Kit-Carburetor (Walbro-WT-662) HUS-530071821

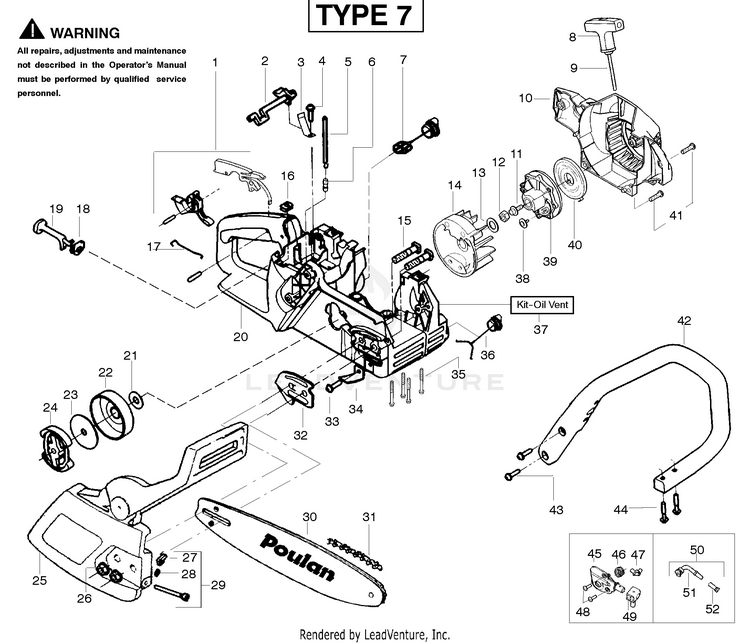

Starter - Type 7

...
...
1
Kit-Trigger & Lockout HUS-530071832
...
2
Lever-Switch (Includes Pin) HUS-530038227
...
3
Spring-Switch HUS-530016149
...
4
Screw HUS-530015775
...
5
Kit-Fuel Line (Large) HUS-530069216
...
6
Fitting HUS-530023877
...
7
FUEL CAP ASSY W/RET HUS-577858501
...
8
Handle-Starter HUS-530056402
...
9
Kit-Rope HUS-530069232
...
10
Housing-Fan HUS-530049334
...
11
Screw HUS-530015920
...
12
Nut-Flywheel HUS-530016134
...
13
Washer-Flywheel HUS-530015127
...
14
Assy-Flywheel HUS-530039187
...
15
Bolt-Bar Mounting HUS-530016133
...
16
Nut-Speed HUS-530015922
...
17
Wire-Throttle HUS-530037809
...
18
Grommet-Choke Knob HUS-530049005
...
19
Lever-Choke HUS-530047989
...
20
Assy-Chassis HUS-530058909
...
21
Washer - Thrust HUS-530015907
...
22
Assy-Drum W/brg. HUS-530047061
...
23
Washer-Clutch HUS-530015611
...
24
Assy. - Clutch HUS-530014949
...
25
Assy-Chain Brake HUS-545139906
...
26
Nut-Bar Mounting HUS-530015917
...
27
Pin-Bar Adjust HUS-530015826
...
28
Retainer-Bar Adjust HUS-530038593
...
29
Kit-Bar Adjust (Incl.27,28) HUS-530069611
...
30
Bar- 14" HUS-952044368
...
31
Chain- 14" HUS-952051209
...
32
Plate-Bar Mounting HUS-530038238
...
33
Screw HUS-530015814
...
34
Chain Catcher HUS-530029850
...
35
Screw HUS-530016132
...
36
Assy-Oil Cap w/ret. HUS-530057236
...
37
Kit-Oil Vent HUS-530071666
...
38
Screw HUS-530016080
...
39
STARTER PULLEY HUS-545034301
...
40
SPRING STARTER HUS-545008015
...
41
Screw HUS-530015892
...
42
Handle-Front HUS-530059173
...
43
Screw HUS-530015814
...
44
Screw HUS-530015940
...
45
Kit-Oil Pump (Incl 46,47,49) HUS-530071259
...
46
Gear-Worm Spring HUS-530037820
...
47
Elbow-Oil Pickup HUS-530049477
...
48
SCREW 6-19X.437 HUS-545227101
...
49
Seal Block HUS-530019206
...
50
Assy-Oil-Pickup (Incl. 51-52) HUS-530047663
...
51
Pickup-Oiler HUS-530038373
...
52
Filter-Oil HUS-530056533
