Husqvarna 2055 Type 6 (2008-03) Chain Saw

Model: 2055 Type 6 (2008-03)

Back To Assemblies

Save Part Not Listed?
product name

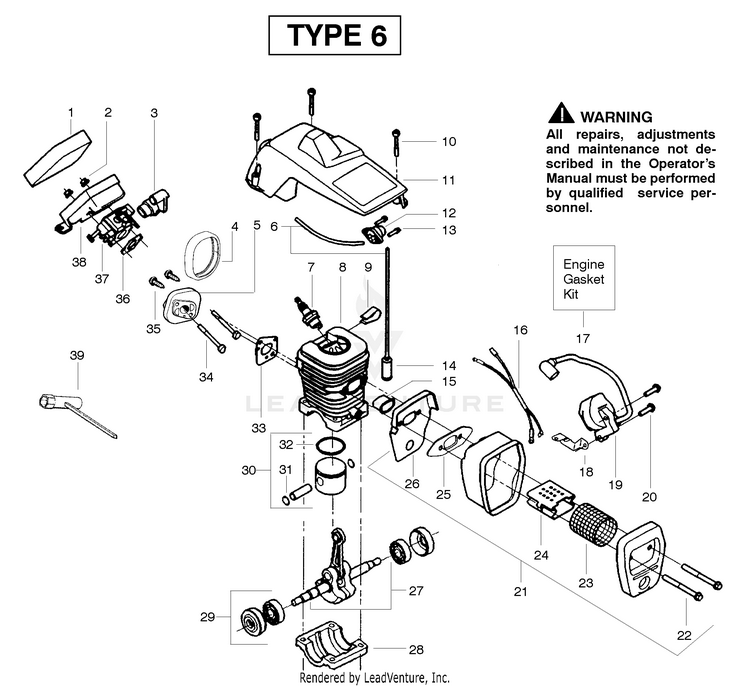

Engine - Type 6

...
...
1
Foam- Air Filter HUS-530037793
...
2
Nut HUS-530016101
...
3
Grommet-Carb Adjust HUS-530035526
...
4
Seal-Carb Adapter HUS-530054144
...
5
Carb. Adapter HUS-530049700
...
6
Fuel Line Kit (Small) HUS-530069247
...
7
BPMR7A NGK SPARK PLUG HUS-503235111
...
8
Cylinder HUS-530012550
...
9
Clip-High Tension Lead HUS-530016136
...
10
Screw HUS-530016153
...
11
Cylinder Shield HUS-530071310
...
12
Kit- Air Purge HUS-530071835
...
13
Screw HUS-530015780
...
14
Fuel Pick-up Ass’y. HUS-530095646
...
15
Heat Insulator HUS-530037652
...
16
Assy. -Wire Harness HUS-530052296
...
17
Kit-Engine Gasket (Incl. 25, 33 & 36) HUS-530069608
...
18
Strap-Ground HUS-530047442
...
19
Module- Ignition HUS-530039167
...
20
Screw HUS-530015814
...
21
MUFFLER (Incl. 22-26) HUS-530071904
...
22
Screw HUS-530016132
...
23
Screen-Spark HUS-530036103
...
24
Diffuser-Muffler HUS-530037813
...
25
Gasket-Muffler (kit) HUS-530069608
...
26
Backplate-Muffler HUS-530049870
...
27
Assy.-Crankshaft HUS-530047062
...
28
Cap-Crankcase HUS-530037935
...
29
Assy.-Seal & Bearing HUS-530056363
...
30
Kit-Piston (Incl. 31 & 32) HUS-530071408
...
31
Retainer-Piston Pin HUS-530015697
...
32
Ring-Piston HUS-545160401
...
33
Gasket-Carb. Adap.(kit) HUS-530069608
...
34
Screw HUS-530016187
...
35
Screw HUS-530016386
...
36
Gasket-Carb. (kit) HUS-530069608
...
37
Kit-Carburetor (Walbro-WT-89) HUS-545081885
...
38
Air Filter Housing HUS-530057480
...
39
Wrench-Bar HUS-530031163
...
39
Operator Manual Not Shown HUS-530163675
...
39
Decal Instruction Not Shown HUS-530057268
...
39
Decal Stop Not Shown HUS-530038486
