Husqvarna 2055 Type 2 (2008-03) Chain Saw

Model: 2055 Type 2 (2008-03)

Save Part Not Listed?
product name

Carburetor

...
...
1
Limiter Cap-High HUS-530038479
...
2
Limiter Cap-Low HUS-530038478
...
3
Carburetor Repair Kit (KIT= Indicates Contents) HUS-530069826
...
4
Gasket Diaphragm Kit THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY. HUS-530069844

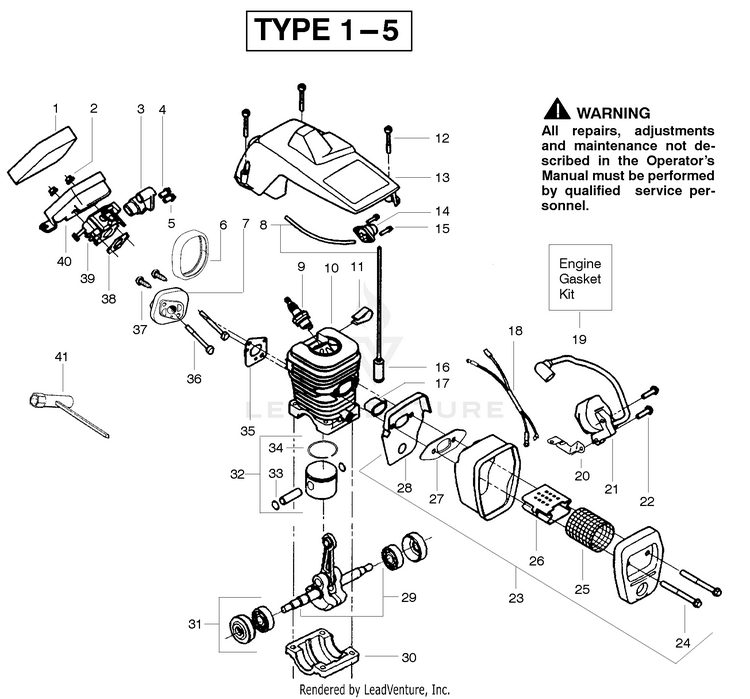

Engine - Type 1-5

...
...
1
Foam- Air Filter HUS-530037793
...
2
Nut HUS-530016101
...
3
Grommet-Carb Adjust HUS-530049244
...
4
Limiter Cap-High HUS-530038479
...
5
Limiter Cap-Low HUS-530038478
...
6
Seal-Carb Adapter HUS-530054144
...
7
Carb. Adapter HUS-530049700
...
8
Kit-Fuel Line (Small) HUS-530069247
...
9
BPMR7A NGK SPARK PLUG HUS-503235111
...
10
CYLINDER HUS-530071579
...
11
Clip-High Tension Lead HUS-530016136
...
12
Screw HUS-530016153
...
13
Shield-Cylinder HUS-530037798
...
14
Kit- Air Purge HUS-530071835
...
15
Screw HUS-530015780
...
16
Assy-Fuel Pick-up HUS-530095646
...
17
Insulator-Heat HUS-530037652
...
18
Assy. -Wire Harness HUS-530052296
...
19
Kit-Engine Gasket (Incl. 27, 35 & 38) HUS-530069608
...
20
Strap-Ground HUS-530047442
...
21
Module- Ignition HUS-530039198
...
22
Screw HUS-530015814
...
23
MUFFLER (Incl. 24,25,26,27,28) HUS-530071904
...
24
Screw HUS-530016132
...
25
Screen-Spark HUS-530036103
...
26
Diffuser-Muffler HUS-530037813
...
27
Gasket-Muffler (kit) HUS-530069608
...
28
Backplate-Muffler HUS-530049870
...
29
Assy.-Crankshaft HUS-530047062
...
30
Cap-Crankcase HUS-530037935
...
31
Assy.-Seal & Bearing HUS-530056363
...
32
Kit-Piston (Incl. 33 & 34) HUS-530069604
...
33
Retainer-Piston Pin HUS-530015697
...
34
Ring-Piston HUS-530029805
...
35
Gasket-Carb. Adap.(kit) HUS-530069608
...
36
Screw HUS-530016187
...
37
Screw HUS-530016386
...
38
Gasket-Carb. (kit) HUS-530069608
...
39
Kit-Carburetor (Incl. 4 & 5) HUS-530069703
...
40
Air Filter Housing HUS-530057480
...
41
Wrench-Bar HUS-530031163
...
41
Operator Manual Not Shown HUS-530086664
...
41
Decal Instruction Not Shown HUS-530038257

Kit - Carburetor Assembly

...
...
530071620
Kit-Carburetor (Walbro-WT-89) HUS-545081885
...
530071820
CARBURETOR HUS-530071820
...
530071821
Kit-Carburetor (Walbro-WT-662) HUS-530071821

Starter - Type 1-6

...
...
1
Lever-Switch (Includes Pin) HUS-530038227
...
2
Spring-Switch HUS-530016149
...
3
Screw HUS-530015775
...
4
Kit-Fuel Line (Large) HUS-530069216
...
5
Fitting HUS-530023877
...
6
FUEL CAP ASSY W/RET HUS-577858501
...
7
Wire-Throttle HUS-530037809
...
8
Lever-Choke HUS-530047989
...
9
Grommet-Choke Knob HUS-530038406
...
10
Kit-Chassis Assy. HUS-530056602
...
11
Nut-Speed HUS-530015922
...
12
Kit-Trigger & Lockout HUS-530071305
...
13
Housing-Fan HUS-530049334
...
14
Screw HUS-530015920
...
15
Nut-Flywheel HUS-530016134
...
16
Washer-Flywheel HUS-530015127
...
17
FLYWHEEL HUS-530063575
...
18
Washer - Thrust HUS-530015907
...
19
Assy-Drum W/brg. HUS-530047061
...
20
Washer-Clutch HUS-530015611
...
21
Assy. - Clutch HUS-530014949
...
22
Assy.-Chain Brake HUS-545139906
...
23
Nut-Bar Mounting HUS-530015917
...
24
Retainer-Bar Adjust HUS-530038593
...
25
Kit-Bar Adjust (Incl.24,26) HUS-530069611
...
26
Pin-Bar Adjust HUS-530015826
...
27
Bar-14" HUS-952044368
...
28
Chain-14" HUS-952051209
...
29
Plate-Bar Mounting HUS-530038238
...
30
Screw HUS-530015814
...
31
Chain Catcher HUS-530029850
...
32
Screw HUS-530016132
...
33
Assy-Oil Cap HUS-530057236
...
34
Screw HUS-530015814
...
35
Handle-Front HUS-530059173
...
36
Kit-Oil Vent HUS-530071666
...
37
Screw HUS-530016080
...
38
STARTER PULLEY HUS-545034301
...
39
SPRING STARTER HUS-545008015
...
40
Screw. HUS-530015892
...
41
Kit-Rope HUS-530069232
...
42
Handle-Starter HUS-530056402
...
43
Screw HUS-530015940
...
44
Kit-Oil Pump (Incl 45,46,48) HUS-530071259
...
45
Gear-Worm Spring HUS-530037820
...
46
Elbow-Oil Pickup HUS-530049477
...
47
SCREW 6-19X.437 HUS-545227101
...
48
Seal Block HUS-530019206
...
49
Assy-Oil-Pickup (Incl. 50-52) HUS-530047663
...
50
Pickup-Oiler HUS-530038373
...
51
Filter-Oil HUS-530056533
...
52
Filter-Oil HUS-530056533
