Husqvarna 2055 LE Type 2 (2008-03) Chain Saw

Model: 2055 LE Type 2 (2008-03)

Back To Assemblies

Save Part Not Listed?
product name

Starter - Type 2

...
...
1
Kit-Trigger & Lockout (Includes Pin) HUS-530071832
...
2
Lever-Switch HUS-530038227
...
3
Spring-Switch HUS-530016149
...
4
Screw HUS-530015775
...
5
Kit-Fuel Line (Large) HUS-530069216
...
6
Fitting-Fuel line HUS-530023877
...
7
FUEL CAP ASSY W/RET HUS-577858501
...
8
Clip-"U" HUS-530055322
...
9
Shield-Heat HUS-530055183
...
10
Lever-Choke HUS-530047989
...
11
Grommet-Choke lever HUS-530049005
...
12
Wire-Throttle HUS-530037809
...
13
Nut-Speed HUS-530015922
...
14
Assy.-Clutch HUS-530014949
...
15
Washer-Clutch HUS-530015611
...
16
Assy-Drum W/brg. HUS-530047061
...
17
Washer-Thrust HUS-530015907
...
18
Kit-Chassis Assy. HUS-530071849
...
19
Assy-Flywheel HUS-530039187
...
20
Washer-Flywheel HUS-530015127
...
21
Nut-Flywheel HUS-530016134
...
22
Screw HUS-530015920
...
23
Housing-Fan HUS-530049334
...
24
Screw HUS-530015892
...
25
Handle-Starter HUS-530056402
...
26
Kit-Rope HUS-530069232
...
27
SPRING STARTER HUS-545008015
...
28
STARTER PULLEY HUS-545034301
...
29
Screw HUS-530016080
...
30
Kit-Oil Check Valve HUS-530071666
...
31
Assy-Oil Cap HUS-530057236
...
32
Bolt-Bar HUS-530016133
...
33
Chain Catcher HUS-530029850
...
34
Screw HUS-530015814
...
35
Plate-Bar Mounting HUS-530038238
...
36
Assy.-Chain Brake HUS-545139906
...
37
Nut-Bar Mounting HUS-530015917
...
38
Retainer-Bar Adjust HUS-530038593
...
39
Pin-Bar Adjust HUS-530015826
...
40
Kit-Bar Adjust (Incl 38,39) HUS-530069611
...
41
Bar-14" HUS-952044368
...
42
Chain-14" HUS-952051209
...
43
Screw HUS-530016132
...
44
Screw HUS-530015814
...
45
Handle-Front HUS-530059173
...
46
Screw HUS-530015940
...
47
Kit-Oil Pump (Incl 48,49,51) HUS-530071259
...
48
Gear-Worm Spring HUS-530037820
...
49
Elbow-Oil Pickup HUS-530049477
...
50
SCREW 6-19X.437 HUS-545227101
...
51
Block-Seal HUS-530019206
...
52
Assy-Oil-Pickup (Incl. 53, 54) HUS-530047663
...
53
Pickup-Oiler HUS-530038373
...
54
Filter-Oil HUS-530056533
...
54
Manual-Operator Not Shown HUS-530164364
...
54
Decal-Warning Not Shown HUS-530057757

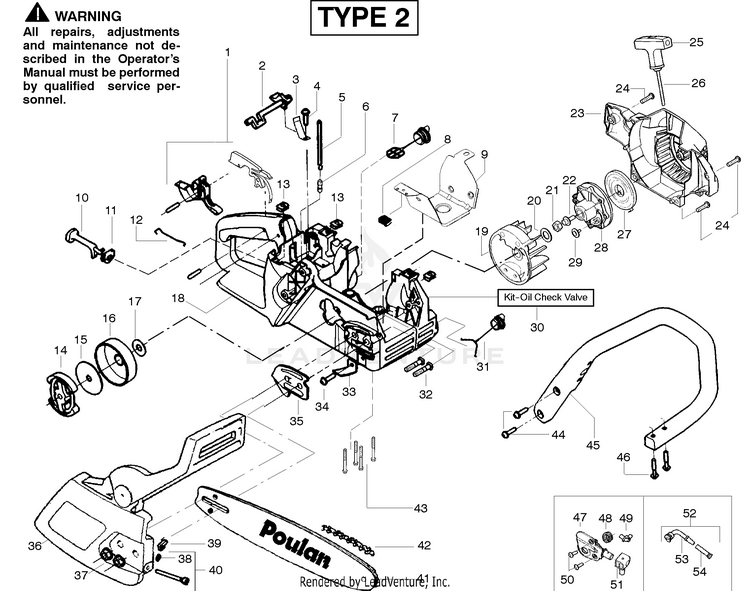

Schematic Image Zoomed
