Husqvarna 2042 LS - 96043004800 (2007-12) Riding Tractor

Model: 2042 LS - 96043004800 (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

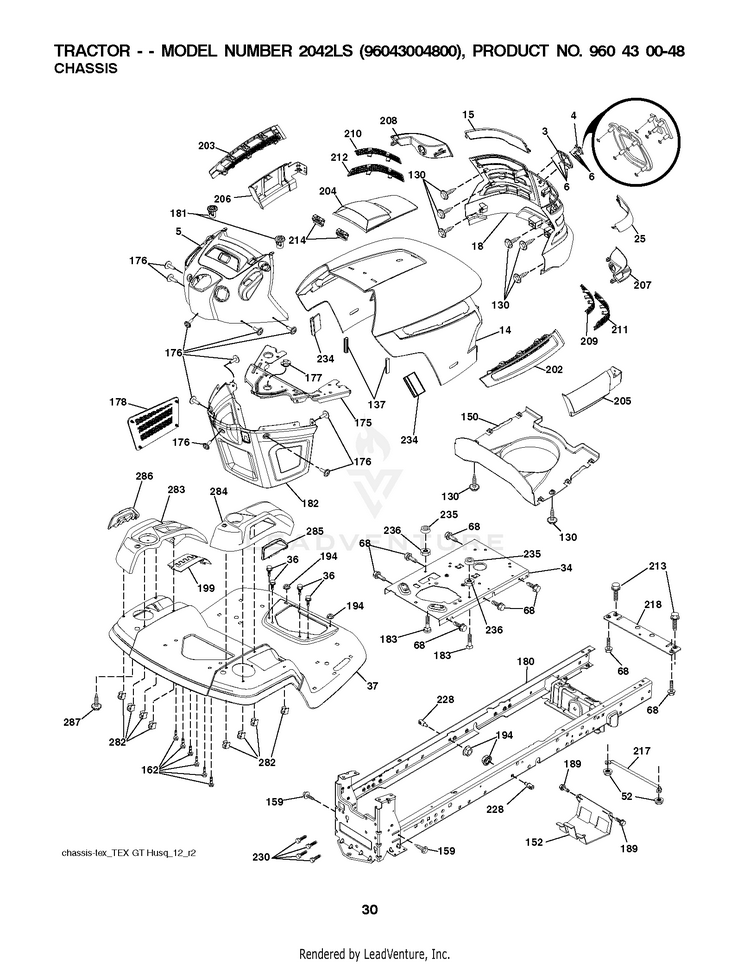

CHASSIS / FRAME

...
...
284
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
137
BUMPER DASH HUS-532407590
...
68
Screws HUS-596030701
...
150
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
25
LENS.RH.TEX.GT.HUSQ.CL HUS-532198906
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
14
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
209
INSERT.HEX.GRILL.HUSQ.GREY HUS-532199130
...
211
INSERT.HEX.GRILL.HUSQ. HUS-532199132
...
4
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
217
ROD.PIVOT.HOOD HUS-532409167
...
285
CONSOLE INSERT RH HUS-532416315
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
15
LENS.LH.TEX.GT.HUSQ.CL HUS-532198907
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
235
Spacers HUS-596564201
...
180
KITS.CHASSIS.WELD.SERVICE HUS-579841501
...
177
BUSHING, STEERING HUS-532195227
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
210
INSERT.HEX.GRILL.HUSQ. HUS-532199131
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY HUS-532401711
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
130
Screws HUS-596321701
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY HUS-532403076
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY HUS-532403048
...
208
BEZEL.LH.TEX.GT.HUSQ HUS-532197199
...
287
SCREW 1/4X20 HUS-817600406
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
283
CONSOLE ASM.DCKLFT.N/F HUS-532413492
...
5
DASH.ASM.HUSQ.GT.E.RECT.W/CK HUS-532408701
...
6
NUT PUSH M HUS-532110452
...
52
Hardware HUS-596040501
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
3
TRIM.HUSQ.TG/CRD.SERVICE HUS-532408606
...
183
Screws HUS-595305701
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY HUS-532401709
...
37
FENDER.TLT.FS.W/CUPHLD.ORANGE HUS-532441266
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
194
GSPW Nuts HUS-596135701
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
230
SHOULDER BOLT 5/16-18TT HUS-532170165
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
207
BEZEL.RH.TEX.GT.HUSQ HUS-532197198
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
212
INSERT.HEX.GRILL.HUSQ. HUS-532199133
