Husqvarna 1E2A9A (1993) Tractor

Model: 1E2A9A (1993)

Back To Assemblies
Save
Part Not Listed?Part Not Listed?
product name

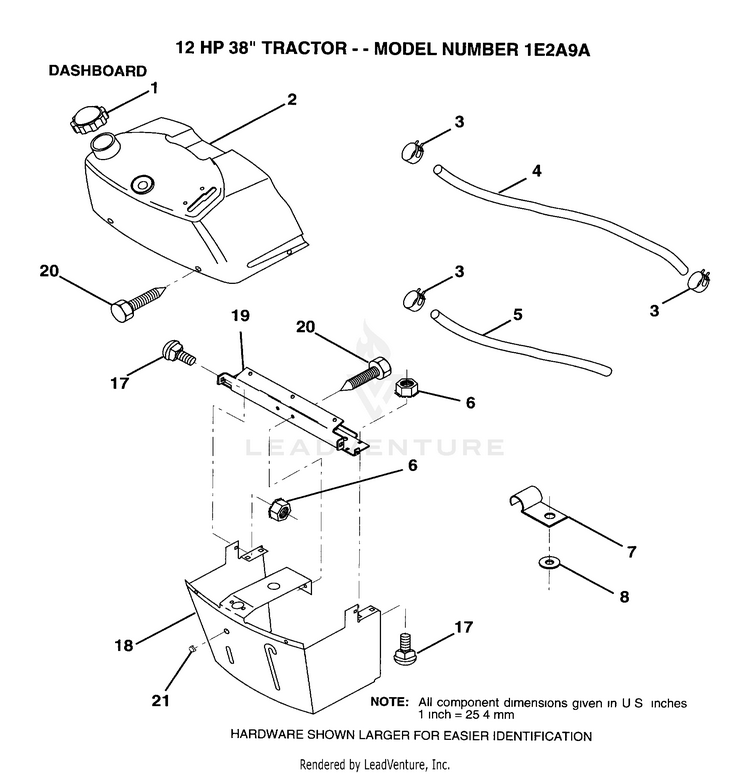

DASHBOARD

...
...
1
CAP.FUEL.N/VENT PLN-132734

...
2
TANK.ASM.DASH.LR PLN-138392

...
3
HOSE CLAMP PLN-123487X

...
4
SUB= 295J PLN-8544R

...
5
FUEL LINE T PLN-8548R


...
7
CLIP T PLN-2751R

...
8
WASHER PM PLN-19091216

...

...
18
SUPT ASM DASH PLN-131886

...
19
CROSS BRACE PLN-134744

...
20
SCREW.1/4-20X1/2 PLN-17060408

...
21
PLUG DOME PLN-134014
...
...
...
