Husqvarna 1CA (2000) Walk Behind Rotary Mower

Model: 1CA (2000)

Back To Assemblies

Save Part Not Listed?
product name

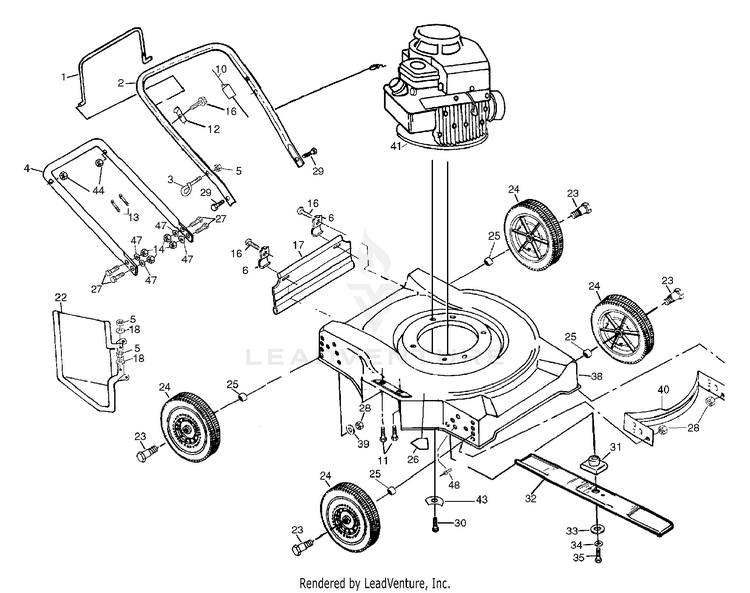

General Assembly

...
...
1
Control Bar HUS-86902
...
2
Upper Handle HUS-169711X479
...
3
Rope Guide HUS-132001
...
4
Lower Handle HUS-172146X479
...
5
Locknut 1/4-20 HUS-63601
...
6
Bracket HUS-87584X004
...
10
Engine Zone Control Cable HUS-163799
...
11
Hex Head Screw 1/4 HUS-74760412
...
12
Up-Stop Bracket HUS-86899X004
...
13
Tie Wire HUS-664-26
...
14
Locknut HUS-132010
...
16
Hex Washer Head Tapping Screw #10-2 HUS-750097
...
17
Rear Deflector HUS-140541
...
18
Flat Washer HUS-53847
...
22
Discharge Guard HUS-752052
...
23
Shoulder Bolt HUS-67609
...
24
Wheel Assembly HUS-800060
...
25
Spacer HUS-136624
...
26
Danger Decal HUS-107339X
...
27
Hex Head Bolt 3/8-16 x 1 HUS-137009
...
28
Locknut 3/8-16 HUS-751592
...
29
Hex Head Screw HUS-74350424
...
30
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 HUS-150406
...
31
Blade Adapter HUS-850977
...
32
20" Blade HUS-145106
...
33
Hardened Washer HUS-851074
...
34
Helical Washer, Lock 3/8 HUS-850263
...
35
Hex Head Screw 3/8-24 x 1-3/8 Gr. 8 HUS-851084
...
38
Lawn Mower Housing Kit HUS-701106
...
39
Washer HUS-61537
...
40
Front Baffle HUS-700839X479
...
43
Engine Washer HUS-851201X004
...
44
Hex Nut 1/4-20 HUS-132004
...
47
Washer HUS-55611
...
48
Pop Rivet HUS-128415
...
xx
Warning Decal (Not Shown) HUS-162300
...
xx
Operator's Manual HUS-172777
...
xx
Repair Parts Manual HUS-171871
...
xx
Grass Catcher Available accessory not included with lawn mower HUS-GCK3200
