Husqvarna 1C1A7A (1994) Tractor

Model: 1C1A7A (1994)

Back To Assemblies

Save Part Not Listed?
product name

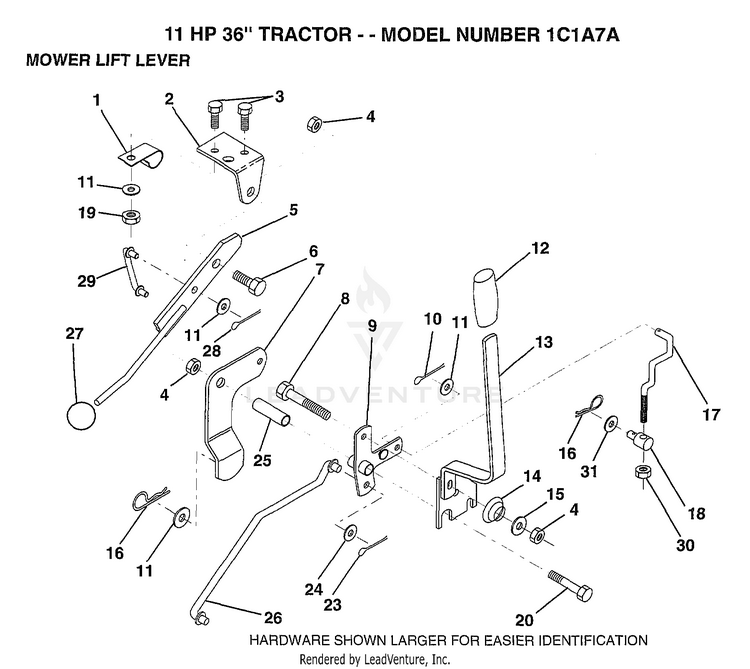

MOWER LIFT LEVER/11 HP 36"

...
...
1
"CLIP,INSULATOR" HUS-126470X
...
2
BRKT CLUTCH HUS-122018X
...
3
BOLT HUS-74780408
...
4
NUT HUS-73800600
...
5
CLUTCH LEVER AS HUS-123417X
...
6
"BOLT, SHOULDER LT" HUS-106451X
...
7
MWR CLUTCH ARM AS HUS-135371
...
8
BOLT HUS-74760636
...
9
"BELLCRANK,LIFT" HUS-121930X
...
10
COTTER PIN HUS-76020412
...
11
WASHER HUS-19131316
...
12
SUB= 532131861 HUS-131861
...
13
HANDLE.ASM.LIFT HUS-139352
...
14
SPRING COMPRESSIO HUS-123496X
...
15
WASHER T HUS-19131212
...
16
SPRING.RETAINER HUS-4921H
...
17
"LINK,LIFT FRT" HUS-127359
...
18
TRUNION HUS-133205
...
19
SUB= 73690400 HUS-73680400
...
20
BOLT HUS-74760644
...
23
PIN COTTER 1/8 HUS-76020416
...
24
WASHER GT HUS-19171612
...
25
TUBE SPACER HUS-121933X
...
26
ROD LIFT MOWER HUS-141470
...
27
KNOB T(3/8 HOLE) HUS-106932X
...
28
SUB= 3145 HUS-76020312
...
29
CLUTCH LINK HUS-131655
...
30
NUT HUS-73350600
...
31
WASHER HUS-19132012
Schematic Image Zoomed
