Husqvarna 1950 Type 7 (2007-08) Chain Saw

Model: 1950 Type 7 (2007-08)

Back To Assemblies

Save Part Not Listed?
product name

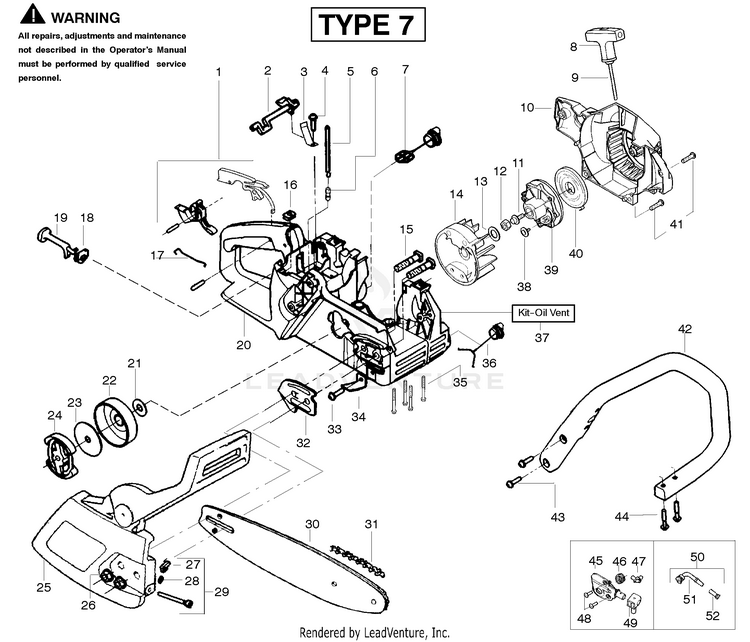

Starter - Type 7

...
...
1
Kit-Trigger & Lockout HUS-530071832
...
2
Lever-Switch HUS-530038227
...
3
Spring-Switch (Includes Pin) HUS-530016149
...
4
Screw HUS-530015775
...
5
Kit-Fuel Line (Large) HUS-530069216
...
6
Fitting HUS-530023877
...
7
FUEL CAP ASSY W/RET HUS-577858501
...
8
Handle-Starter HUS-530056402
...
9
Kit-Rope HUS-530069232
...
10
Housing-Fan HUS-530049334
...
11
Screw HUS-530015920
...
12
Nut-Flywheel HUS-530016134
...
13
Washer-Flywheel HUS-530015127
...
14
Assy-Flywheel HUS-530039187
...
15
Bolt-Bar Mounting HUS-530016133
...
16
Nut-Speed HUS-530015922
...
17
Wire-Throttle HUS-530037809
...
18
Grommet-Choke Knob HUS-530049005
...
19
Lever-Choke HUS-530047989
...
20
Assy-Chassis Green HUS-530058909
...
20
Assy-Chassis Black HUS-530057470
...
21
Washer - Thrust HUS-530015907
...
22
Assy-Drum W/brg. HUS-530047061
...
23
Washer-Clutch HUS-530015611
...
24
Assy. - Clutch HUS-530014949
...
25
Assy-Chain Brake HUS-545139906
...
26
Nut-Bar Mounting HUS-530015917
...
27
Pin-Bar Adjust HUS-530015826
...
28
Retainer-Bar Adjust HUS-530038593
...
29
Kit-Bar Adjust (incl.27,28) HUS-530069611
...
30
Bar- 14" HUS-952044368
...
31
Chain- 14" HUS-952051209
...
32
Plate-Bar Mounting HUS-530038238
...
33
Screw HUS-530015814
...
34
Chain Catcher HUS-530029850
...
35
Screw HUS-530016132
...
36
Assy-Oil Cap HUS-530057236
...
37
Kit-Oil Vent HUS-530071666
...
38
Screw HUS-530016080
...
39
STARTER PULLEY HUS-545034301
...
40
SPRING STARTER HUS-545008015
...
41
Screw HUS-530015892
...
42
Handle-Front HUS-530059173
...
43
Screw HUS-530015814
...
44
Screw HUS-530015940
...
45
Kit-Oil Pump (Incl 46,47,49) HUS-530071259
...
46
Gear-Worm Spring HUS-530037820
...
47
Elbow-Oil Pickup HUS-530049477
...
48
SCREW 6-19X.437 HUS-545227101
...
49
Seal Block HUS-530019206
...
50
Assy-Oil-Pickup (Incl. 51,52) HUS-530047663
...
51
Pickup-Oiler HUS-530038373
...
52
Filter-Oil HUS-530056533
