Husqvarna 1950 Type 7 (2007-08) Chain Saw

Model: 1950 Type 7 (2007-08)

Back To Assemblies

Save Part Not Listed?
product name

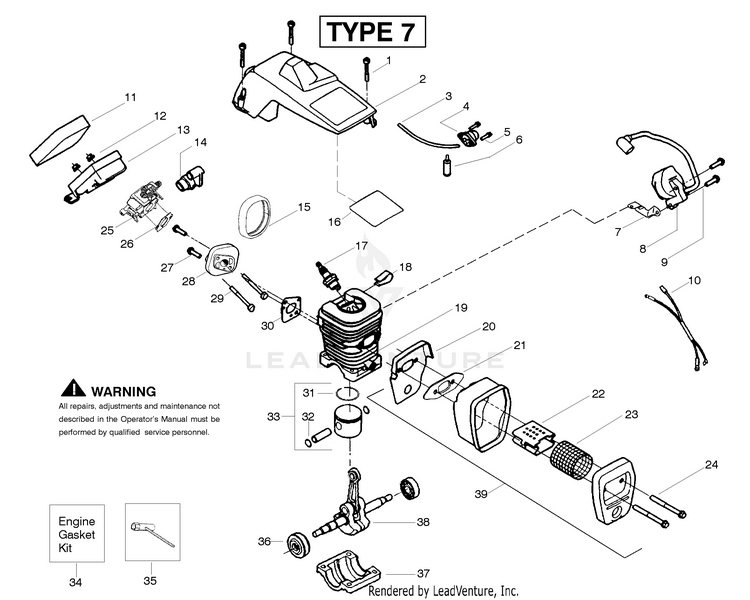

Engine Type 7

...
...
1
Screw HUS-530016153
...
2
Assy-Cylinder Shield (Includes # 16) HUS-530055637
...
3
Kit-Fuel Line (Small) HUS-530069247
...
4
Kit- Air Purge HUS-530071835
...
5
Screw HUS-530015780
...
6
Assy-Fuel Pick-up HUS-530095646
...
7
Strap-Ground HUS-530047442
...
8
Ignition Module HUS-530039198
...
9
Screw HUS-530015814
...
10
Assy-Wire Harness HUS-530052296
...
11
Foam- Air Filter HUS-530037793
...
12
Nut HUS-530016101
...
13
Assy- Air Box HUS-530057480
...
14
Grommet-Carb Adjust HUS-530035526
...
15
Seal-Carb Adapter HUS-530054144
...
16
Reflector-Heat HUS-530055698
...
17
BPMR7A NGK SPARK PLUG HUS-503235111
...
18
Clip-High Tension Lead HUS-530016136
...
19
Cylinder HUS-530012550
...
20
Backplate-Muffler HUS-530049870
...
21
Gasket-Muffler(kit) HUS-530069608
...
22
Diffuser-Muffler HUS-530037813
...
23
Screen-Spark HUS-530036103
...
24
Bolt-Muffler HUS-530016132
...
25
Kit-Carburetor Zama (W-20) HUS-530071820
...
25
Kit-Carburetor Walbro (WT-662) HUS-530071821
...
26
Gasket-Carb. (kit) HUS-530069608
...
27
Screw HUS-530016386
...
28
Carb. Adapter HUS-530049700
...
29
Screw HUS-530016187
...
30
Gasket- Adaptor(kit) HUS-530069608
...
31
Ring-Piston HUS-545160401
...
32
Retainer-Piston Pin HUS-530015697
...
33
Kit-Piston (Incl. 31 & 32) HUS-530071408
...
34
Kit-Engine Gasket (Incl. 21, 26 & 30) HUS-530069608
...
35
Bar Wrench HUS-530031163
...
36
Assy-Seal & Bearing HUS-530056363
...
37
Cap-Crankcase HUS-530037935
...
38
Assy-Crankshaft HUS-530047062
...
39
MUFFLER (Incl. 20-24) HUS-530071904
...
39
Manual North America Not Shown HUS-545123582
...
39
Manual Non-CE 1 Not Shown HUS-545123745
...
39
Manual Non-CE (Russia) Not Shown HUS-545123746
...
39
Decal-Warning Not Shown HUS-530057757
...
39
Decal-Wanring (Russia) Not Shown HUS-545003001
