Husqvarna 1830 HV - 96193008100 (2011-07) Snow Blower

Model: 1830 HV - 96193008100 (2011-07)

Save Part Not Listed?
product name

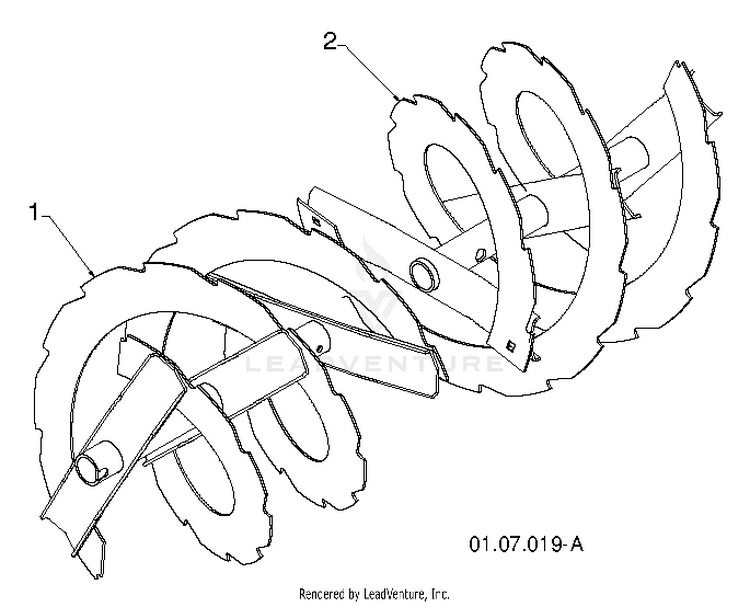

AUGER HOUSING & IMPELLER

...
...
1
AUGER KIT 30" LH 420497X498 LH HUS-547571901
...
2
AUGER KIT 30" RH 420498X498 RH HUS-547572001

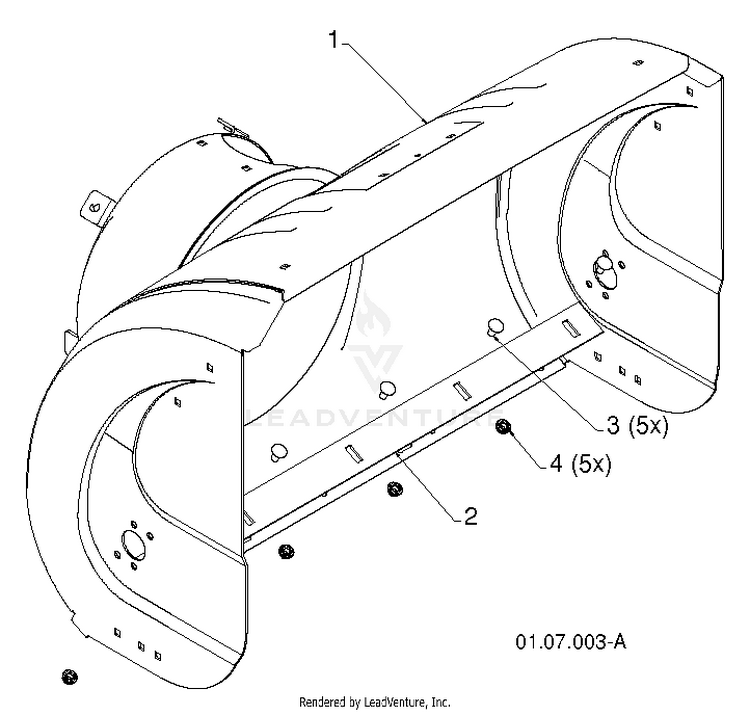

AUGER HOUSING & IMPELLER 2

...
...
3
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
1
KIT.AUGER.HOUSING.404930X668 HUS-581708369
...
2
BAR.SCRAPER.30.BLACK HUS-532435830
...
4
GSPW Hardware HUS-596039201

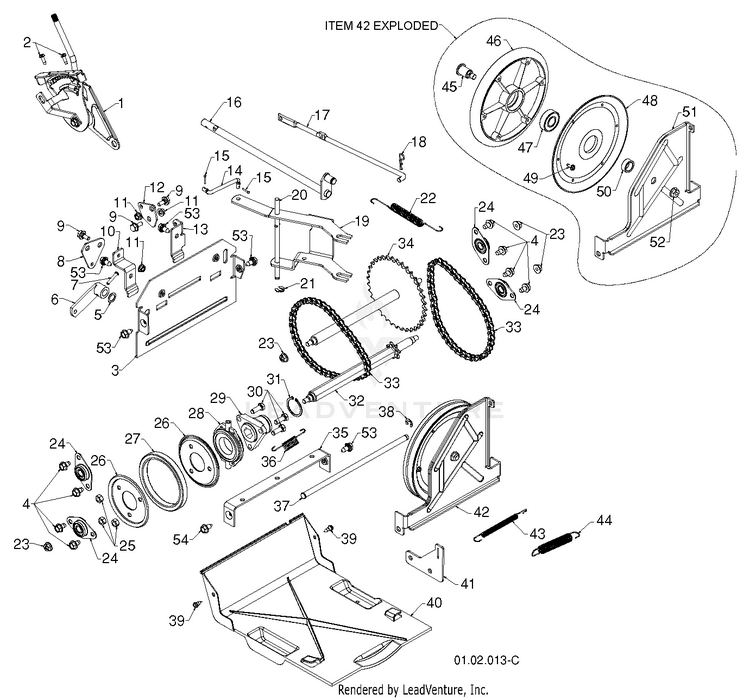

DRIVE

...
...
45
SHAFT.FRICTION.PULLEY.SNOW HUS-532402504
...
20
ROD.PIVOT.SHIFTER HUS-532402310
...
49
SCREW HUS-817541008
...
40
PAN.BOTTOM.PLASTIC HUS-532410877
...
5
THRUST WASHER HUS-532057079
...
52
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
LINK, SPEED CONTROL HUS-532187101
...
24
BEARING FLANGE BALL HUS-532408981
...
38
E-RING.RETAINER.REINFORCED.375 HUS-532428288
...
53
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
26
PLATE.RUBBER.WHEEL.BLACK HUS-532435789
...
46
PULLEY.PLATE.ASM.DRIVE HUS-585111201
...
21
KLIP RING TI HUS-812000036
...
50
SPACER BEARING HUS-532402511
...
33
CHAIN.DRIVE.SNOWTHROWER.#420 HUS-532401619
...
22
SPRING.TRACTION.RETURN HUS-532402878
...
18
SPRING RETAINER HUS-532169675
...
8
PLATE.SHIFTER.BZP HUS-532415450
...
54
BOLT.5/16HEX.WHS.HD HUS-817000510
...
39
Screws HUS-594975601
...
11
NUT.HEX.FLANGE.1/4 HUS-532191730
...
29
HUB, RUBBER WHEEL HUS-532178613
...
27
RING.RUBBER.4.5".SNOW.DR(2 2MC HUS-585021001
...
6
ARM, AUGER CONTROL HUS-532405485
...
44
SPRING, BRAKE HUS-532178828
...
36
SPRING, BIAS HUS-532180135
...
41
BRACKET.TRACTION.SPRING. HUS-532416682
...
4
Screws HUS-596030701
...
31
RING.RETAINING. HUS-583607301
...
37
ROD.PIVOT.SWING.PLATE.SNOW HUS-532402652
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
35
BRACKET.YOKE.SHIFTER.SPEED.BLA HUS-532401984
...
9
BOLT.SHOULDER.3/X.25 HUS-532402881
...
12
PLATE.CLUTCH.BZP HUS-532415435
...
3
PLATE.END.CHAIN.ASM.PNT.ORANGE HUS-532436080
...
51
PLATE.SWING.DRIVE.BLACK HUS-532422941
...
34
SPROCKET.WELDMENT HUS-532437303
...
15
RETAINER CLIP HUS-532700279
...
13
BRACKET.CLUTCH.PLATE.BZP HUS-532416864
...
10
BRACKET.SHIFTER.PLATE.BZP HUS-532415433
...
23
NUT.LOCK.5/16-18 HUS-532751153
...
43
SPRING.TRACTION.IDLER HUS-532414557
...
1
KIT.CONTROL.SPEED.SELECTOR.SNO HUS-532429667
...
19
BRACKET.YOKE.SHIFTER.BLACK HUS-581422501
...
47
BEARING HUS-532198791
...
32
SHAFT.HEX.W/SPOCKET HUS-532402187
...
17
ROD.CLUTCH.SWING.PLATE HUS-532402568
...
42
PULLEY.PLATE.ASM.DRIVE HUS-585111201
...
16
KIT.CONTROL.SHAFT.SNOW HUS-532429668
...
2
SCREW #10-24 X 5/8 HUS-817501010
...
28
BEARING HOUSING ASSY TRUNNION HUS-597412801
...
48
PULLEY.PLATE.ASM.DRIVE HUS-585111201
...
30
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
7
CLEVIS PIN HUS-532198580

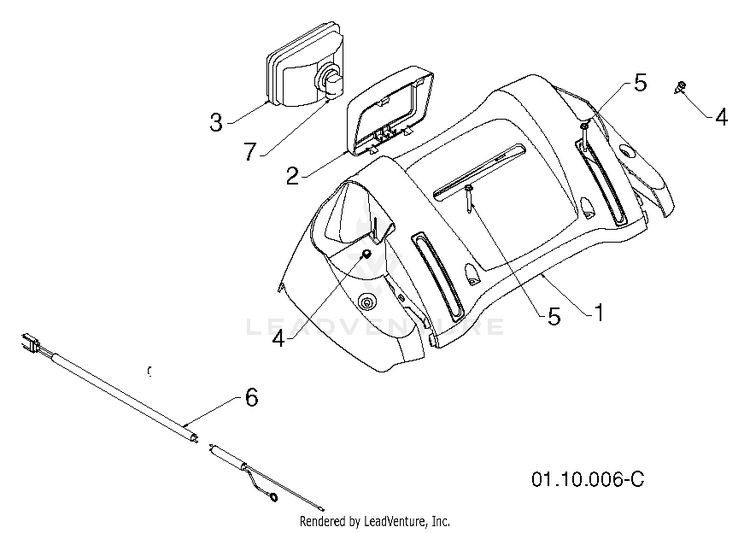

HANDLE

...
...
3
RP.HEADLIGHT.FLOOD.SNOW HUS-532180927
...
7
BULB.HEADLIGHT.FLOOD.1156-12V HUS-532183784
...
6
HARNESS.WIRE.FLOOD.(HEADLIGHT) HUS-532445029
...
4
Screws HUS-594975601
...
2
BEZEL.HEADLIGHT.BLACK HUS-532178668
...
1
PANEL.CONSOLE.LIGHTS/GREY HUS-532421382
...
5
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
