Husqvarna 181 (1983-06) Chain Saw

Model: 181 (1983-06)

Back To Assemblies

Save Part Not Listed?
product name

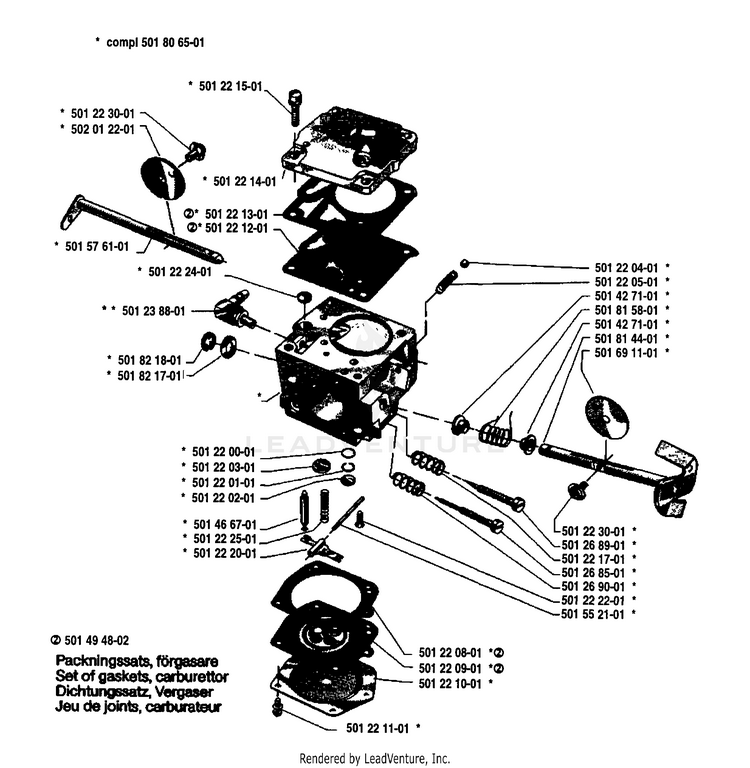

Carburetor Parts

...
...
501806501
HUS-501806501
...
501221501
SCREW HUS-501221501
...
501223001
SCREW HUS-503652701
...
502012201
CHOKE FLAP HUS-502012201
...
501221401
CAP HUS-501221401
...
501221301
GASKET, PUMP SIDE HUS-501221301
...
501221201
FUEL PUMP DIAPHRAGM HUS-501221201
...
501576101
CHOKE SHAFT AND LEVER HUS-501576101
...
501222401
FILTER HUS-578004601
...
501238801
NIPPLE HUS-503534001
...
501821801
RETAINING RING HUS-501821801
...
501821701
WASHER HUS-501821701
...
501220001
SCREEN HUS-501220001
...
501220301
Plug HUS-501220301
...
501220101
LOCKING RING HUS-501220101
...
501220201
PLUG (TIL 179-60X) HUS-501220201
...
501466701
VALVE/INLET. HUS-503117001
...
501222501
SPRING HUS-501222501
...
501222001
LEVER HUS-501222001
...
501494802
DIAPHRAGM SET HUS-501494802
...
501220801
GASKET, METERING SIDE HUS-501220801
...
501220901
METERING DIAPHRAGM HUS-501220901
...
501221001
CAP HUS-501221001
...
501223001
SCREW HUS-503652701
...
501268901
NEEDLE H HUS-501268901
...
501221701
SPRING HUS-501221701
...
501268501
IDLE ADJ. SCREW HUS-501268501
...
501269001
SPRING HUS-501269001
...
501222201
SCREW HUS-501222201
...
501552101
SPRING HUS-501815801
...
501220401
BALL HUS-501220401
...
501220501
SPRING HUS-501220501
...
501427101
Bushing HUS-501427101
...
501815801
SPRING HUS-501815801
...
501427101
Bushing HUS-501427101
...
501814401
THROTTLE SHAFT HUS-501814401
...
501691101
THROTTLE FLAP HUS-501691101
...
501221101
COVER SCREW HUS-503486301
