Husqvarna 153 R (2007-01) Brushcutter/Clearing Saw

Model: 153 R (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

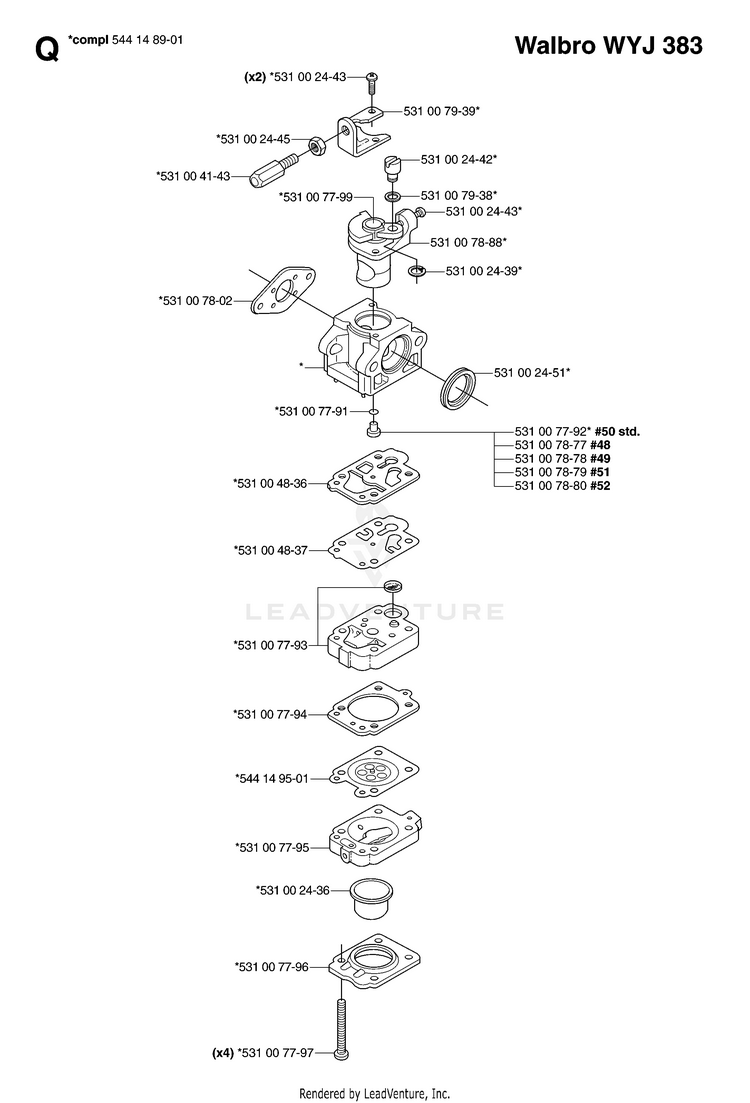

CARBURETOR DETAILS

...
...
531 00 48-37
GASKET HUS-501363766
...
531 00 77-91
RING HUS-531007791
...
531 00 24-36
PRIMER HUS-531002436
...
531 00 77-94
GASKET HUS-531007794
...
544 14 95-01
DIAPHRAGM METERING DIAPHRAGM M HUS-544149501
...
531 00 77-99
HUS-531007799
...
531 00 78-78
HUS-531007878
...
531 00 79-39
NEEDS DESCRIPTION HUS-531007939
...
531 00 78-77
HUS-531007877
...
531 00 78-02
HUS-531007802
...
531 00 24-51
GASKET HUS-531002451
...
531 00 77-97
SCREW HUS-531007797
...
531 00 78-79
HUS-531007879
...
544 14 89-01
CARBURETTOR ASSY MODEL 143R HUS-544148901
...
531 00 77-93
HUS-531007793
...
531 00 24-42
CONNECTION HUS-531002442
...
531 00 24-45
NUT HUS-531002445
...
531 00 77-92
HUS-531007792
...
531 00 24-39
RETAINING RING HUS-531002439
...
531 00 41-43
HUS-531004143
...
531 00 48-36
GASKET HUS-501363765
...
531 00 78-88
NEEDS DESCRIPTION HUS-531007888
...
531 00 77-96
PUMP COVER HUS-531007796
...
531 00 77-95
HOUSING HUS-531007795
...
531 00 24-43
SCREW HUS-531002443
...
531 00 24-43
SCREW HUS-531002443
...
531 00 78-80
HUS-531007880
...
531 00 79-38
NEEDS DESCRIPTION HUS-531007938
