Husqvarna 153 R (2007-01) Brushcutter/Clearing Saw

Model: 153 R (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

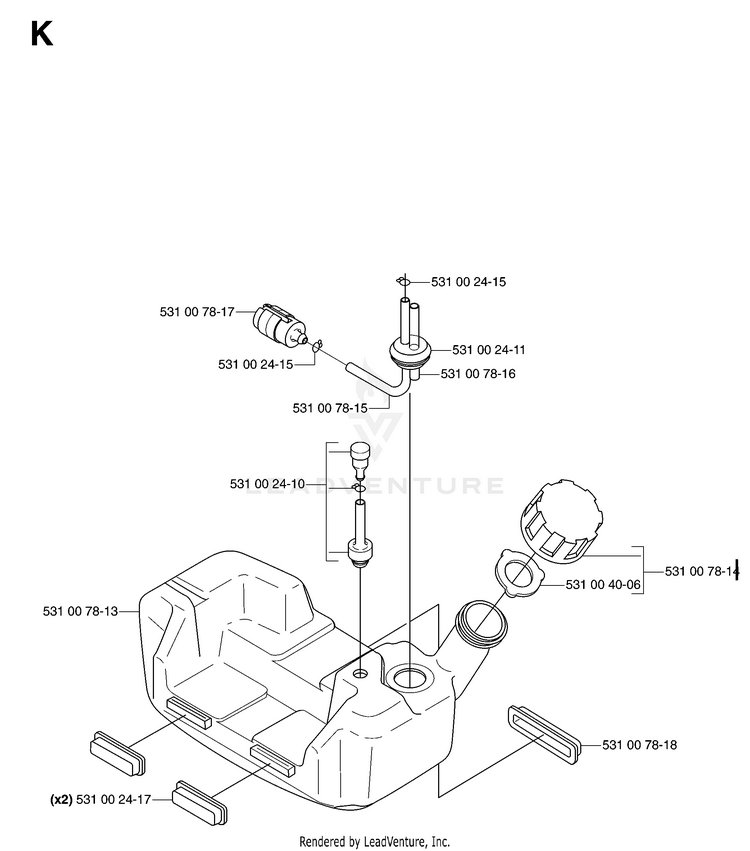

FUEL TANK

...
...
531 00 78-17
HUS-531007817
...
531 00 78-18
HUS-531007818
...
531 00 78-16
HUS-531007816
...
531 00 78-15
HOSE HUS-531007815
...
531 00 24-17
SLEEVE HUS-531002417
...
531 00 24-11
GROMMET HUS-531002411
...
531 00 78-13
HUS-531007813
...
531 00 40-06
GASKET HUS-531004006
...
531 00 24-15
CLIP HUS-531002415
...
531 00 78-14
HUS-531007814
...
531 00 24-10
VALVE HUS-531002410
