Husqvarna 150 BT BLOWERS

Model: 150 BT

Back To Assemblies

Save Part Not Listed?
product name

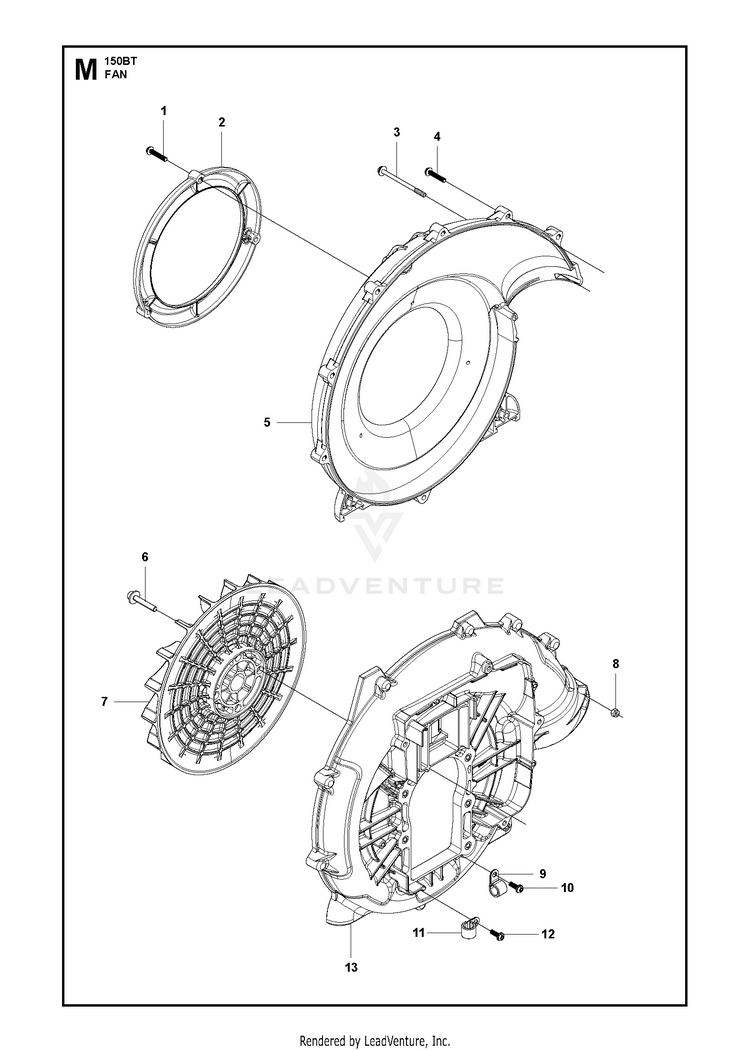

FAN

...
...
3
SCREW HUS-544264601
...
1
SCREW HUS-512848101
...
9
CLAMP HUS-504122301
...
4
SCREW HUS-512848101
...
10
SCREW Alternative 544 26 43-01 HUS-512847901
...
5
VOLUTE COVER HUS-511805001
...
6
BOLT HUS-510906101
...
2
FUNNEL HUS-511805201
...
8
NUT HUS-514183901
...
11
RP_CLAMP HUS-544264901
...
12
SCREW Alternative 544 26 43-01 HUS-512847901
...
7
IMPELLER FAN HUS-502850201
...
13
FAN HOUSING VOLUTE HUS-502850301
