Husqvarna 150 BT BLOWERS

Model: 150 BT

Back To Assemblies

Save Part Not Listed?
product name

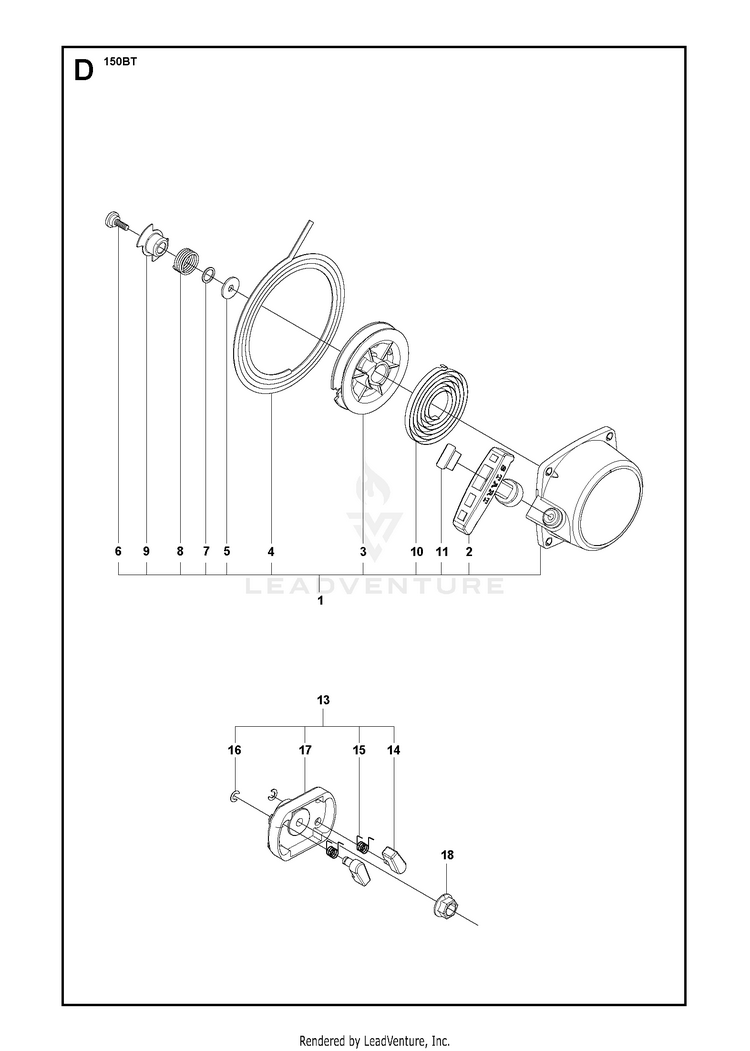

STARTER 2

...
...
2
STARTER HANDLE s/n 20213100102 - Current HUS-501929201
...
1
STARTER ASSY s/n 20213100102 - Current HUS-579813601
...
3
ROPE REEL s/n 20213100102 - Current HUS-598651601
...
8
FRICTION SPRING s/n 20213100102 - Current HUS-598656301
...
18
NUT HUS-513241901
...
7
WASHER s/n 20213100102 - Current HUS-598745401
...
9
FRICTION PLATE s/n 20213100102 - Current HUS-598656401
...
15
SPRING s/n 20213100102 - Current HUS-501938901
...
11
STOPPER s/n 20213100102 - Current HUS-501938701
...
4
STARTER ROPE s/n 20213100102 - Current HUS-579814101
...
6
SCREW s/n 20213100102 - Current HUS-598740101
...
13
STARTER PULLEY ASSY s/n 20213100102 - Current HUS-579814201
...
14
STARTER RATCHET s/n 20213100102 - Current HUS-598656501
...
10
SPRING s/n 20213100102 - Current HUS-501935201
...
16
CLIP s/n 20213100102 - Current HUS-501939001
...
17
NEEDS DESCRIPTION s/n 20213100102 - Current HUS-579814401
...
5
WASHER s/n 20213100102 - Current HUS-501931701
