Husqvarna 150 BT BLOWERS

Model: 150 BT

Back To Assemblies

Save Part Not Listed?
product name

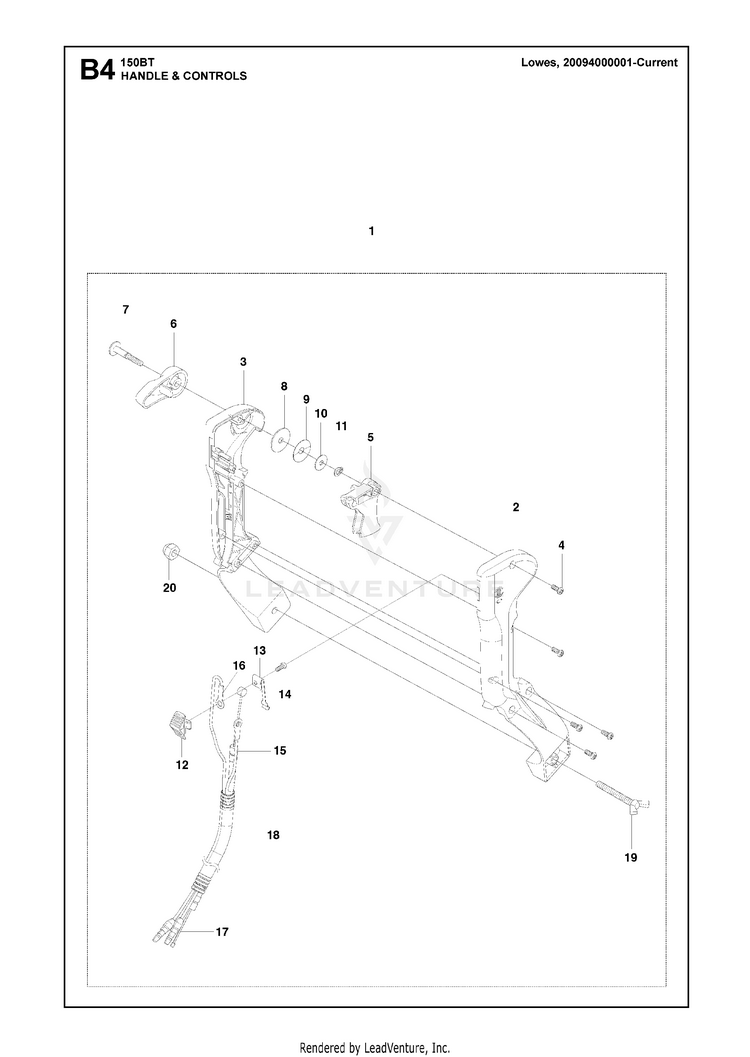

HANDLE & CONTROLS 4

...
...
9
SPRING WASHER HUS-521841201
...
1
LEVER HUS-573931401
...
13
SPRING (RPLS T402325720) HUS-521841601
...
5
LEVER THROTTLE HUS-512694901
...
8
LEVER(R)SET HUS-578027101
...
6
RP_LEVER (RPLS T402325430) HUS-521673501
...
15
CORD(T) HUS-521841801
...
10
WASHER HUS-514154401
...
7
RP_SHAFT(T) HUS-521841001
...
20
NUT HUS-513671401
...
19
BOLT WING HUS-514338401
...
3
CASE HUS-511746901
...
12
SWTICH (T) HUS-512698001
...
2
COVER HUS-512690801
...
4
SCREW 4X14(T) HUS-521840701
...
17
CABLE HUS-512699701
...
14
RP_SCREW 4X10(T) HUS-521841701
...
11
CLIP HUS-512696601
...
16
CORD(T) HUS-521841901
...
18
TUBE (RPLS T402383210) HUS-521524301
