Husqvarna 150 BT BLOWERS

Model: 150 BT

Back To Assemblies

Save Part Not Listed?
product name

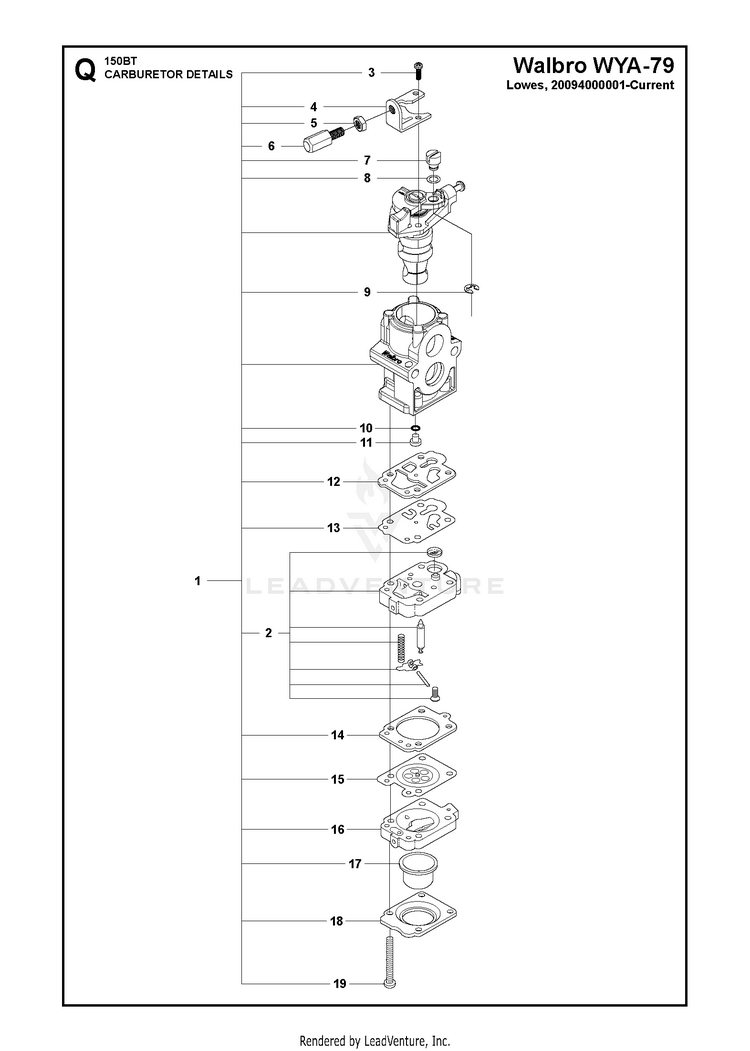

CARBURETOR DETAILS

...
...
18
1OVER HUS-506741001
...
14
GASKET HUS-506740801
...
13
DIAPHRAGM HUS-506689801
...
4
BRACKET HUS-506746001
...
17
PUMP HUS-505306701
...
19
SCREW HUS-506741101
...
1
CARBURETOR HUS-502845001
...
5
NUT HUS-510487401
...
8
WASHER HUS-506746101
...
11
JET (RPLS T104881250) HUS-512259001
...
7
SWIVEL HUS-506741201
...
6
SCREW (RPLS 191881170) HUS-521756001
...
9
RING HUS-516523601
...
12
GASKET HUS-506745101
...
10
O-RING HUS-505307501
...
15
DIAPHRAGM HUS-505306801
...
2
BODY-A-PUMP HUS-544363501
...
3
SCREW HUS-505307901
...
16
BODY HUS-506740901
