product name

Husqvarna 14527 E - 96193007501 (2011-07) Snow Blower

Model: 14527 E - 96193007501 (2011-07)

Save Part Not Listed?
product name

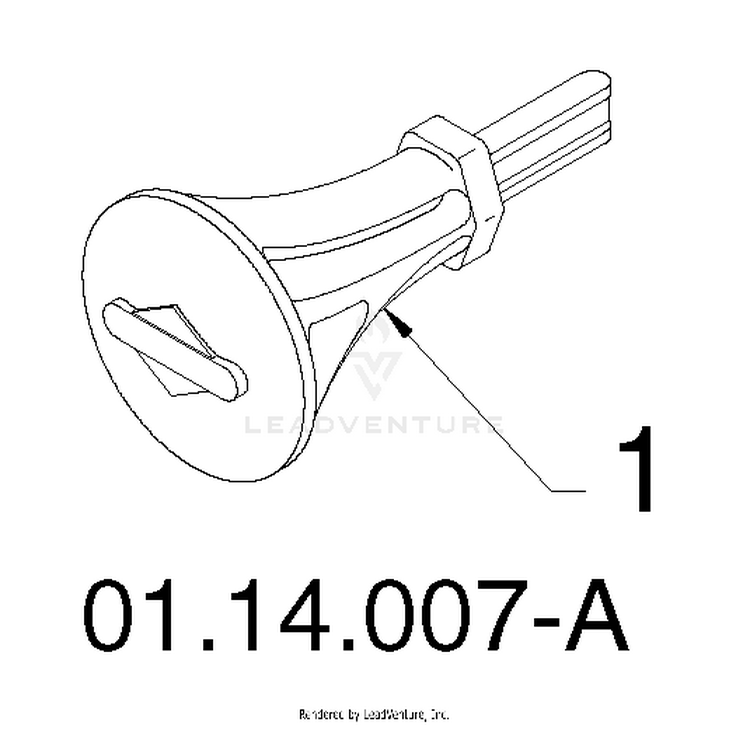

ACCESSORIES

...
...
1
Keys HUS-598672770

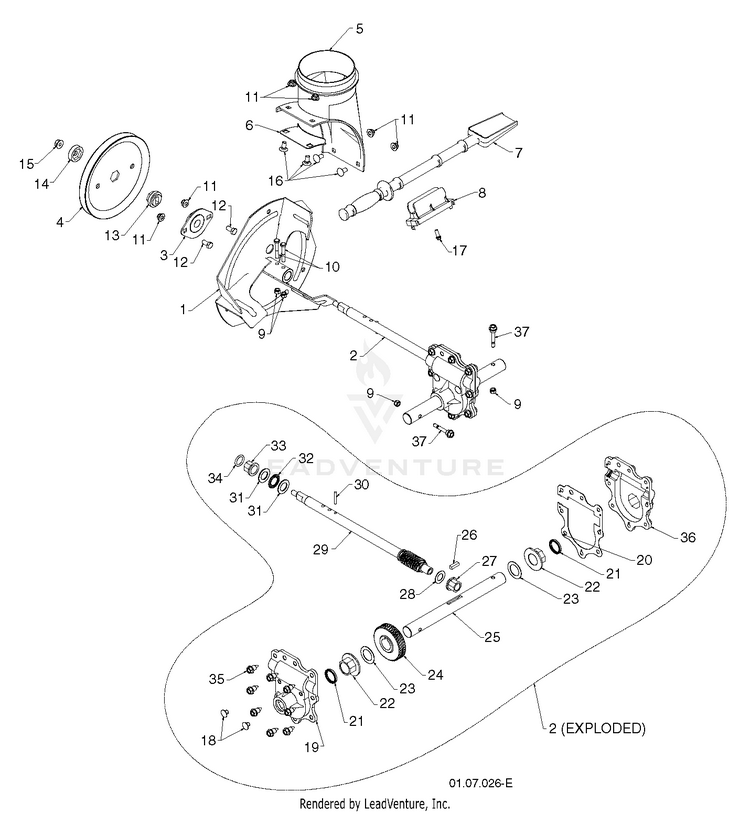

AUGER HOUSING & IMPELLER

...
...
14
SLEEVE.IMP.PULLEY.D-SHAFT HUS-532427154
...
8
CLIP.CLEANOUT.TOOL HUS-532405400
...
18
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
7
CLEAN OUT TOOL HUS-532192199
...
19
GEAR.BOX.COVER.RIGHT.SIDE RH HUS-532427302
...
20
GASKET.GEAR.BOX HUS-532427345
...
5
CHUTE.DISCHARGE.BASE HUS-585056901
...
22
BUSHING FLANGE 1" HUS-532174701
...
26
KEY, SQUARE 1/4 X .875 HUS-532189282
...
37
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
9
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
35
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
30
PIN.ROLL.3/16 X 1" HUS-532001572
...
3
BEARING FLANGE HUS-532188909
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
13
HUB.IMP.PULLEY.D-SHAFT HUS-532427145
...
25
SHAFT, AUGER HUS-532174657
...
10
BOLT HEXAGON BOLT 1/4-20 X 1-5 HUS-596322101
...
28
WASHER, THRUST 5/8 HUS-532174683
...
24
Service Kit HUS-598831601
...
27
BUSHING.FLANGE.(.625X.75) HUS-532174686
...
16
BOLT.CARRIAGE.5/16-18X HUS-532180355
...
1
SERVICE KIT IMPELLER WELDMENT HUS-531167901
...
2
Service Kit HUS-598831601
...
21
SEAL, OIL HUS-532174698
...
34
O-RING HUS-532407768
...
11
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
33
BUSHING, FLANGE 3/4 HUS-532407769
...
31
WASHER, THRUST 3/4 HUS-532174681
...
29
SHAFT.IMPELLER.D-SHAFT HUS-532427147
...
12
Screws HUS-596031601
...
23
WASHER RACE BEARING THRUST HUS-532007396
...
17
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
36
GEAR.BOX.COVER.LEFT.SIDE LH HUS-532427317
...
32
BEARING TRUST 3/4 NTA-1220 HUS-532174684
...
6
Brackets HUS-597433002
...
4
PULLEY.FLANGE.IMPELLER HUS-532427146

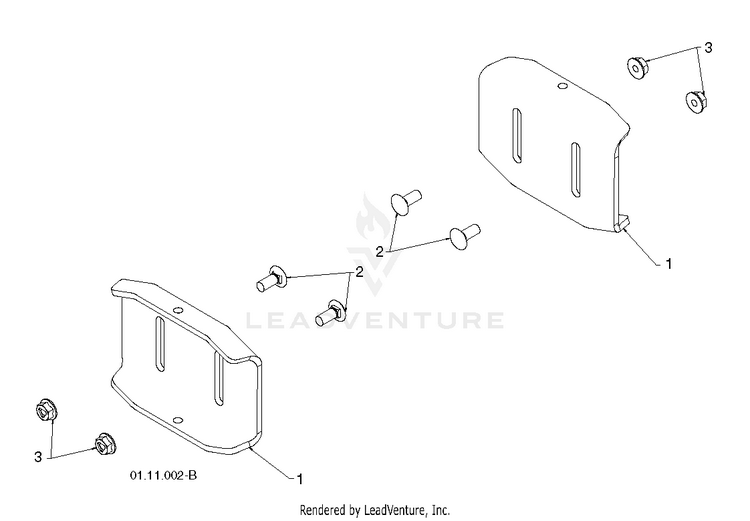

AUGER HOUSING & IMPELLER 2

...
...
3
NUT.LOCK.5/16-18 HUS-532751153
...
1
SKID PLATE HUS-532407834
...
2
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506

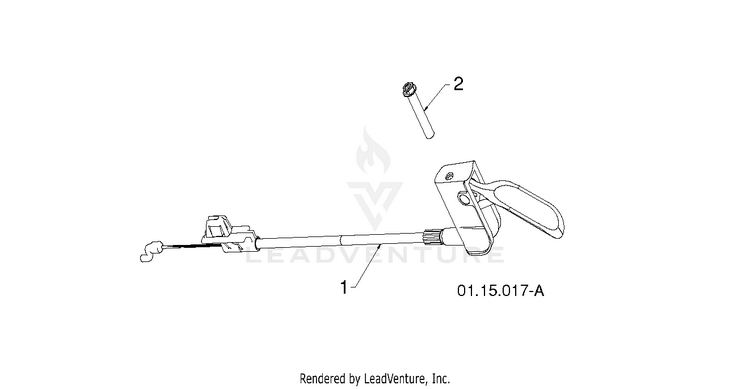

CONTROL PANEL & DISCHARGE CHUTE

...
...
2
SCREW HUS-874041024
...
1
KIT.POWER.STEER.CABLE.SNOW HUS-581795501

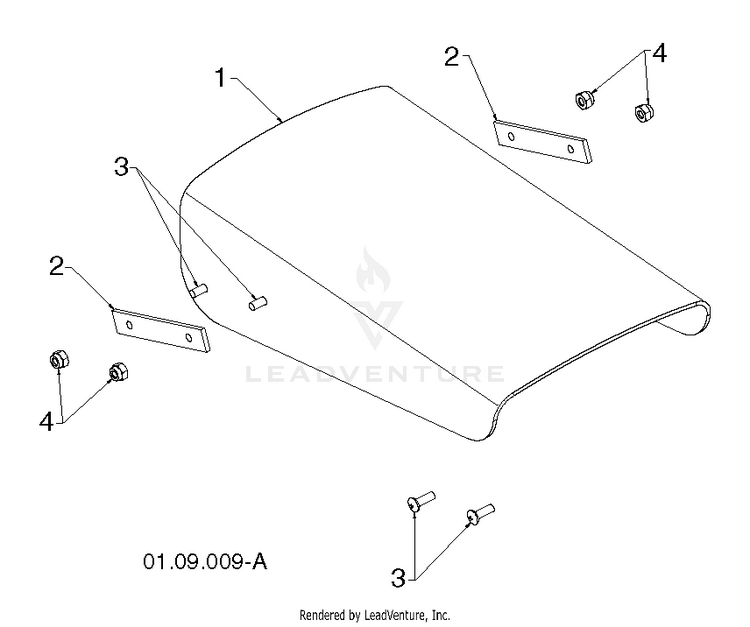

CONTROL PANEL & DISCHARGE CHUTE 2

...
...
4
NUT.HEX.#8 HUS-532182228
...
3
SCREW.#8.MACH HUS-532182227
...
2
STRAP.DEFLECTOR.SHEILD HUS-532435831
...
1
SHIELD.DEFLECTOR.BLACK.SNOW HUS-532421138
