Husqvarna 142 e (2006-12) Chain Saw

Model: 142 e (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

CYLINDER PISTON

...
...
3
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
6
PISTON RING HUS-537400001
...
5
KIT-PISTON HUS-530069454
...
8
CAP-CRANKSHAFT HUS-530049794
...
9
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
7
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
4
CYLINDER ASSY/141 HUS-530069941
...
17
SHOE COMP HUS-521636401
...
18
WASHER HUS-505298001
...
13
BOLT HUS-515391301
...
15
SCREW HUS-505297801
...
22
SPRING HUS-521523401
...
14
FAN COVER HUS-578854203
...
16
WASHER HUS-505298101

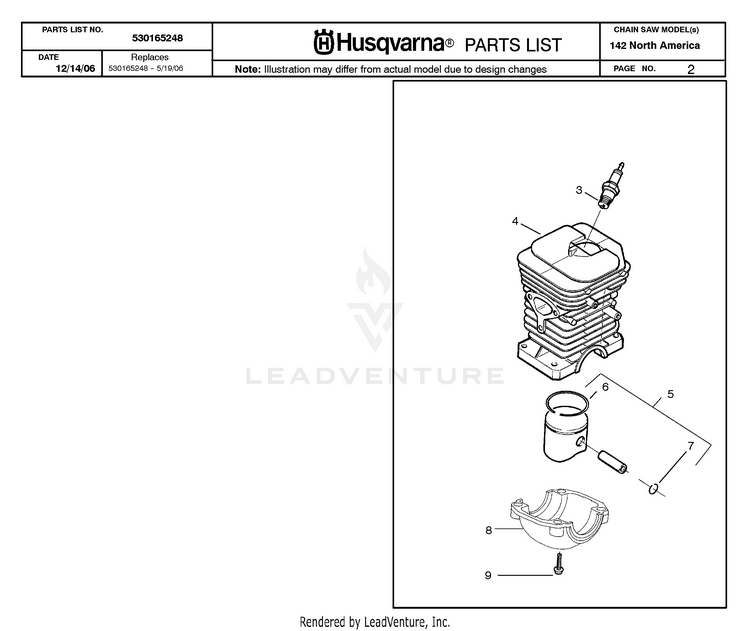

Schematic Image Zoomed
