Husqvarna 142 e (2005-03) Chain Saw

Model: 142 e (2005-03)

Back To Assemblies

Save Part Not Listed?
product name

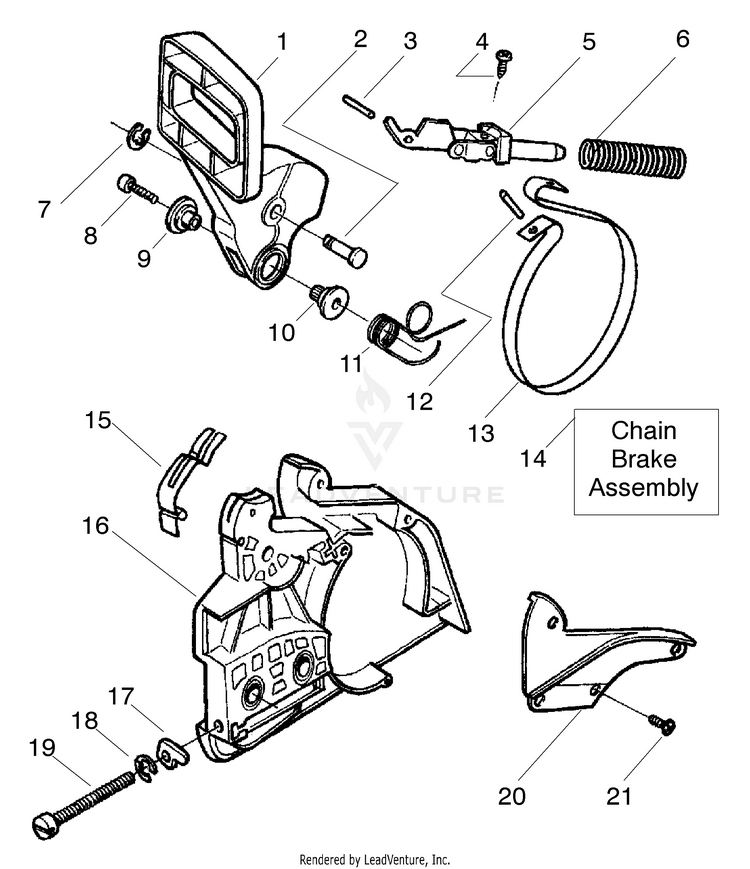

Chain Brake

...
...
1
HANDGUARD HUS-530071348
...
2
PIVOT PIN HUS-530029879
...
3
PIN HUS-530015915
...
4
SCREW M3.63-1.34 X 8MM HUS-574780301
...
5
FRONT LINK ASSY HUS-530054741
...
6
COMPRESSION SPRING HUS-545137301
...
7
E-RING HUS-530024419
...
8
SCREW HUS-530016384
...
9
JOURNAL, RIGHT HUS-530056531
...
10
SHAFT PIVOT HUS-530029881
...
11
SPRING,BRK HDL 36/41 HUS-530015910
...
12
PIN HUS-530015913
...
13
BRAKE BAND HUS-545137401
...
14
CHAIN BRAKE ASM. HUS-530054802
...
15
SPRING-POSITION HUS-530029878
...
16
CLUTCH COVER HUS-530049483
...
17
ADJUST PIN,BAR 36/41 HUS-530015826
...
18
RETAINER HUS-530038593
...
19
BAR ADJUSTING SCREW HUS-530016110
...
20
CHAIN BRAKE COVER HUS-530053035
...
21
SCREW M3.63-1.34 X 8MM HUS-574780301
