Husqvarna 142 e (2004-10) Chain Saw

Model: 142 e (2004-10)

Back To Assemblies

Save Part Not Listed?
product name

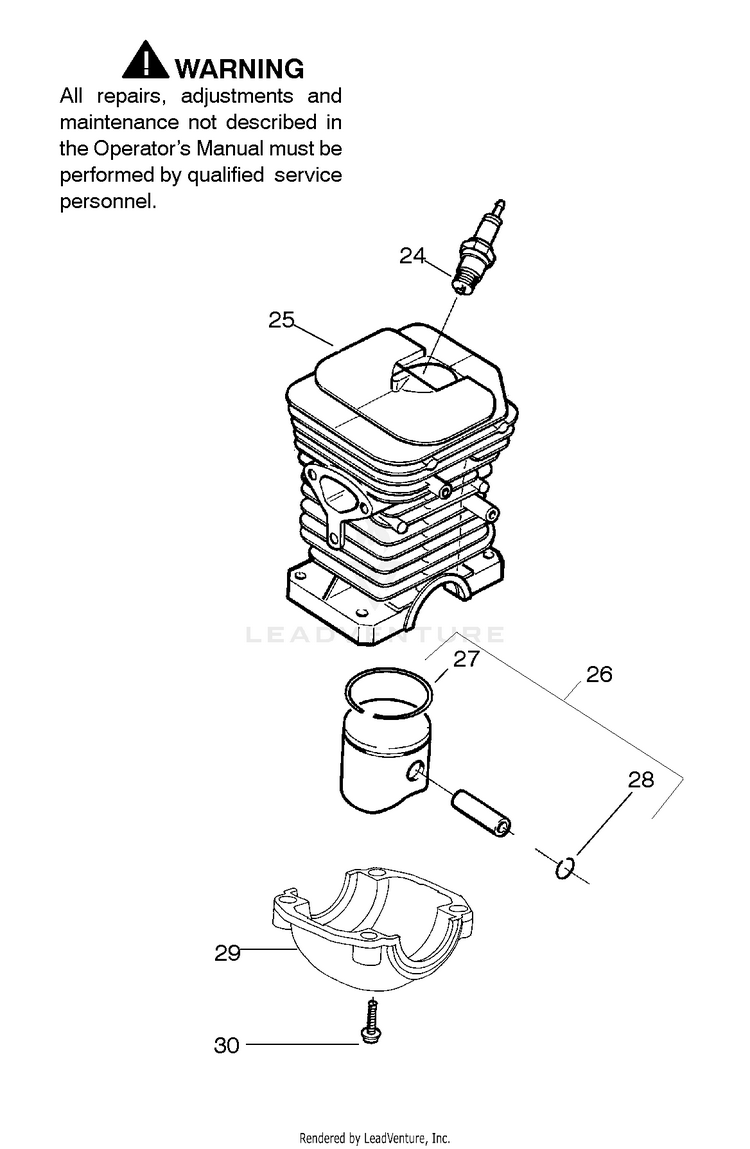

Piston/Cylinder

...
...
24
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
25
CYLINDER ASSY/141 (incl.#29 & #23 see "Crankshaft") HUS-530069941
...
26
KIT-PISTON (Includes pin and 27, 28) HUS-530069454
...
27
PISTON RING HUS-537400001
...
28
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
29
CAP-CRANKSHAFT HUS-530049794
...
30
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
xx
OPERATOR´S MANUAL Not Shown HUS-530165144
...
xx
WRENCH Not Shown HUS-587417201
...
xx
DECAL Not Shown HUS-530047839
