Husqvarna 142 (2009-03) Chain Saw

Model: 142 (2009-03)

Save Part Not Listed?
product name

Repair Parts

...
...

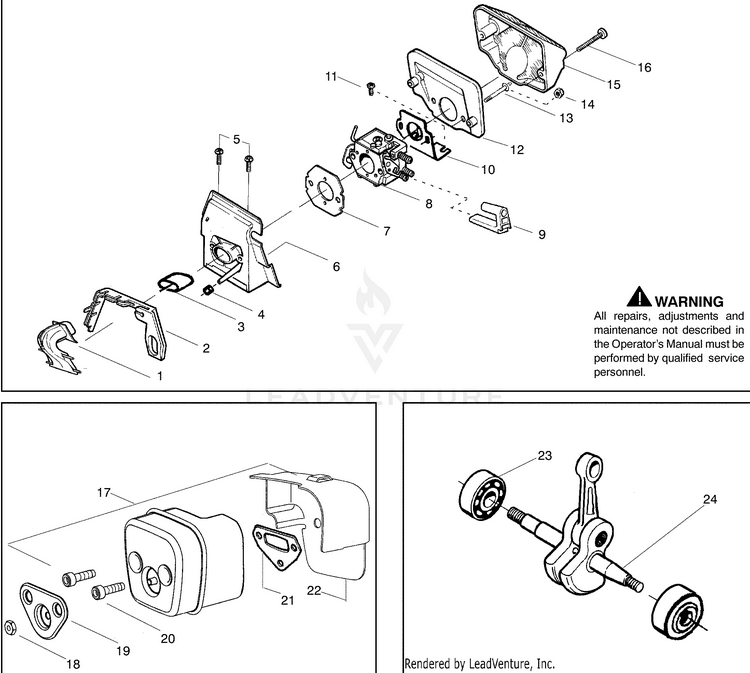

1
INTAKE HORN HUS-530029813
...
2
TURBO CLEAN SEAL HUS-530019203
...
3
INTAKE PIPE HUS-530029814
...
4
IMPULSE PIPE HUS-530053435
...
5
SCREW HUS-530015814
...
6
CARB ADAPTOR HUS-530037465
...
7
GSKT,CARB 36/41 HUS-530019172
...
xx
CARBURETOR ZAMA W-29 HUS-530035607
...
xx
CARBURETOR KIT WT-834 WALBRO HUS-545013502
...
9
GROMMET HUS-530035587
...
10
PLATE HUS-530047767
...
11
SCREW HUS-530015896
...
12
AIR FILTER (BOTTOM) HUS-530036582
...
13
STUD-CARBURETOR HUS-530015968
...
14
NUT 5M HUS-530016008
...
15
AIR FILTER - TOP HUS-545057801
...
16
SCREW HUS-530015899
...
17
MUFFLER KIT (Includes 20,21 & 22) HUS-545006044
...
18
HEXAGON NUT MUFFLER HUS-588135101
...
19
COVER BOLT HUS-530055600
...
20
SCREW MUFFLER HUS-530016338
...
21
GASKET-MUFFLER HUS-530055128
...
22
BACKPLATE, MUFFLER HUS-530055171
...
23
BEARING & SEAL ASSEMBLY HUS-530056363
...
24
ASSY-CRANKSHAFT & ROD HUS-503920801

Repair Parts

...
...

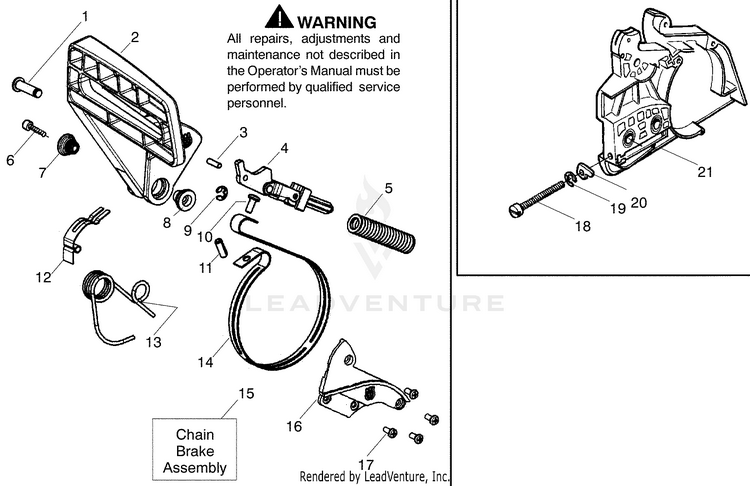

1
PIVOT PIN HUS-530029879
...
2
HANDGUARD (Incl. 4,14) HUS-530071348
...
3
PIN HUS-530015915
...
4
FRONT LINK ASSY HUS-530054741
...
5
COMPRESSION SPRING NEW PART NUMBER FOR THIS IPL HUS-545137301
...
6
SCREW HUS-530016384
...
7
JOURNAL, RIGHT HUS-530056531
...
8
SHAFT PIVOT HUS-530029881
...
9
E-RING HUS-530024419
...
10
SCREW M3.63-1.34 X 8MM HUS-574780301
...
11
PIN HUS-530015913
...
12
SPRING-POSITION HUS-530029878
...
13
SPRING,BRK HDL 36/41 HUS-530015910
...
14
BRAKE BAND NEW PART NUMBER FOR THIS IPL HUS-545137401
...
15
CHAIN BRAKE ASM. (Incl. 1,2,3,4,5,6,7,8,9,10,11,12,13,14,16,17,18,19,20,21) HUS-530054802
...
16
CHAIN BRAKE COVER HUS-530053035
...
17
SCREW M3.63-1.34 X 8MM HUS-574780301
...
18
BAR ADJUSTING SCREW HUS-530016110
...
19
RETAINER HUS-530038593
...
20
ADJUST PIN,BAR 36/41 HUS-530015826
...
21
CLUTCH COVER HUS-530049483
...
xx
WRENCH Not Shown HUS-587417201
...
xx
DECAL Not Shown HUS-530047839

Repair Parts

...
...

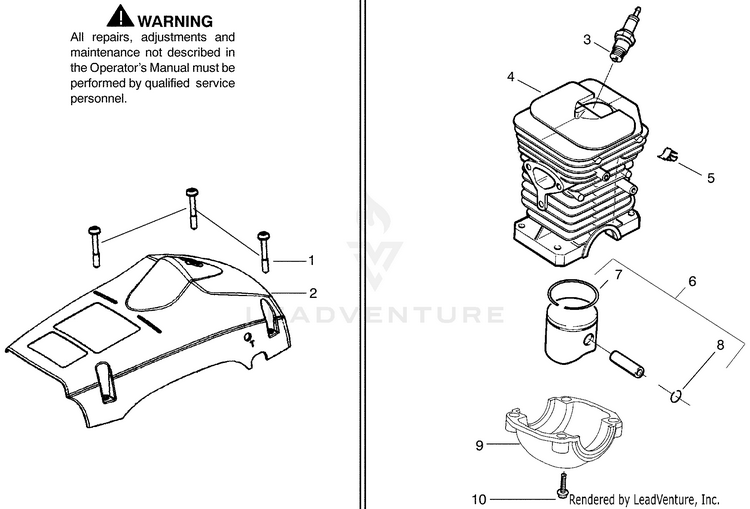

1
SCREW HUS-530016154
...
2
CYLINDER SHIELD HUS-530059960
...
3
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
4
CYLINDER ASSY/141 (incl. 4,9 & #23 pg. 3) HUS-530069941
...
5
CLIP - HIGH TENSION LE HUS-530015696
...
6
KIT-PISTON (Includes pin and 7, 8) HUS-530069454
...
7
PISTON RING HUS-537400001
...
8
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
9
CAP-CRANKSHAFT HUS-530049794
...
10
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897

Repair Parts

...
...

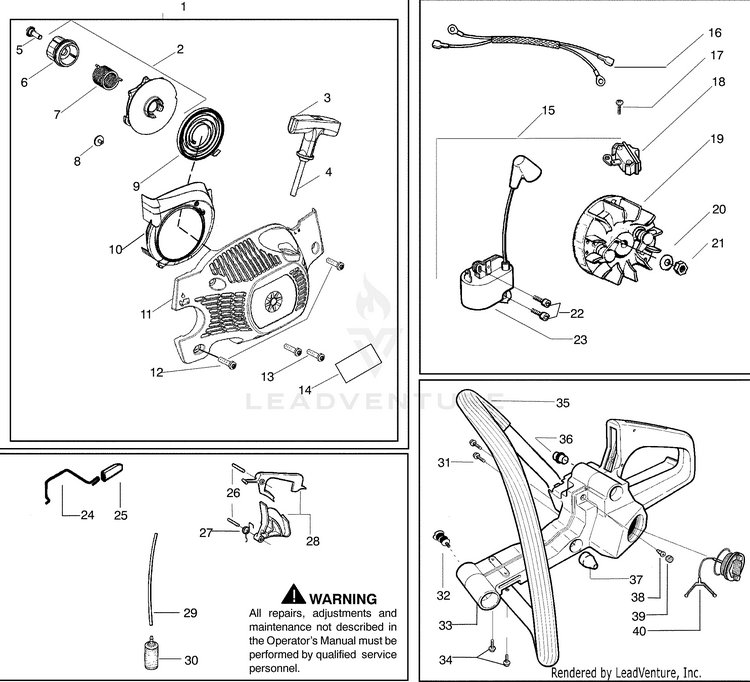

1
KIT FAN HSG & STARTER EPS (Incl. 2,3,4,5,6,7,8,9,10,11) HUS-530071968
...
2
KIT EPS STARTER (Incl. 5,6,7,8) HUS-530071966
...
3
STARTER HANDLE GRAY HUS-530150318
...
4
KIT-ROPE HUS-530069232
...
5
SCREW SHOULDER HUS-530021179
...
6
HUB STARTER EPS HUS-530059677
...
7
SPRING EPS HUS-530021180
...
8
SCREW HUS-530016080
...
9
SPRING STARTER HUS-545008013
...
10
BAFFLE AIR HUS-530059959
...
11
HOUSING FAN W/ EYELET HUS-530059958
...
12
SCREW HUS-530015893
...
13
SCREW,STRTR CVR 36/41 HUS-530015892
...
14
DECAL HUS-545005218
...
15
KIT EPS IGNITION (Incl. 18, 19, 23) HUS-530071967
...
16
LEAD WIRE ASSY HUS-530403257
...
17
SCREW HUS-530015896
...
18
SWITCH ON/OFF HUS-503717901
...
19
FLYWHEEL ASSY HUS-530059637
...
20
WASHER-FLYWHEEL HUS-530015127
...
21
NUT-FLYWHEEL HUS-530016134
...
22
SCREW HUS-545121901
...
23
IGNITION MODULE HUS-545063901
...
24
THROTTLE SHAFT 36/41 HUS-530029869
...
25
THROTTLE ACTUATOR 36/41 HUS-530029863
...
26
PIN,TRIGGER 36/41 HUS-530029860
...
27
TRIGGER SPRING 36/41 HUS-530029861
...
28
THROTTLE TRIGGER-KIT HUS-530069587
...
29
HOSE. FUEL HUS-530069247
...
30
FUEL PICK-UP ASSY HUS-530095646
...
31
SCREW HUS-530015940
...
32
ISOLATOR HUS-530029870
...
33
TANK HANDLE ASSY HUS-530055613
...
34
SCREW HUS-530015843
...
35
HANDLE FRONT HUS-530059961
...
36
FRONT HANDLE ISOLATOR HUS-530052439
...
37
SHOCK MOUNT(X2) 36/41 HUS-530029984
...
38
VALVE-CHECK (DUCKBILL) HUS-530026119
...
39
BRONZE PLUG HUS-530038264
...
40
FUEL CAP KIT HUS-530071266

Repair Parts

...
...
xx

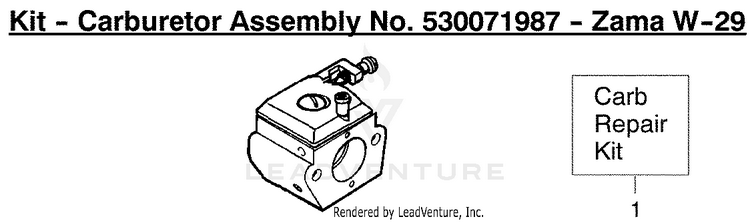

KIT, CARB REPAIR HUS-530035269
...
xx
REPAIR KIT HUS-530035260

Repair Parts

...
...

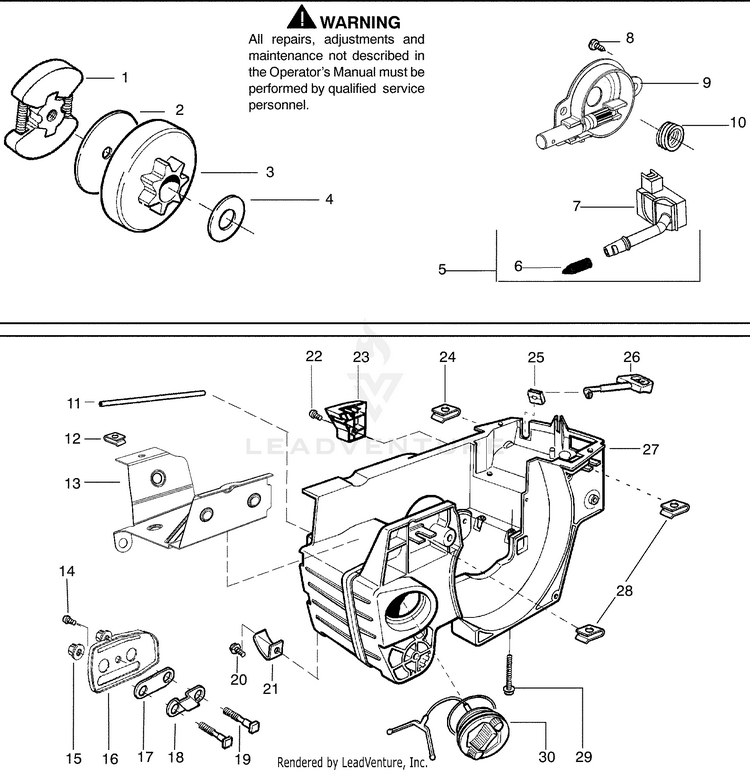

1
CLUTCH ASSEMBLY HUS-530014949
...
2
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
3
CLUTCH DRUM ASSY HUS-530047061
...
4
THRUST WASHER HUS-530015907
...
5
OIL HOSE (Incl 6,7) HUS-545037101
...
6
SCREEN/FILTER HUS-530056533
...
7
OIL HOSE HUS-545037101
...
8
SCREW HUS-530015896
...
9
PLUNGER & GEAR ASSY HUS-545036801
...
10
OILER GEAR 36/41 HUS-530029833
...
11
OIL TUBE HUS-545033501
...
12
CLIP-U HUS-530055322
...
13
HEATSHIELD, LOWER HUS-530055174
...
14
SCREW (optional) HUS-530015896
...
15
BAR NUT HUS-530015917
...
16
BAR PLATE HUS-530047855
...
17
OIL TANK GASKET HUS-530019228
...
18
PLATE,BAR MOUNT HUS-530036043
...
19
BAR BOLT 36/41 HUS-530015877
...
20
SCREW HUS-530015878
...
21
CHAIN CATCHER 36/41 HUS-530029850
...
22
SCREW HUS-530015893
...
23
LIMITER COVER HUS-530052428
...
24
CLIP HUS-530015922
...
25
CHOKE GUIDE 36/41 HUS-530029830
...
26
CHOKE 36/41 HUS-530029831
...
27
KIT ASSY CHASSIS HUS-530071991
...
28
CLIP HUS-530015922
...
29
SCREW M5-0.8X35M TAP HUS-530016037
...
30
OIL CAP HUS-501765602
