Husqvarna 142 (20070100001-20082299999) Chain Saw

Model: 142 (20070100001-20082299999)

Save Part Not Listed?
product name

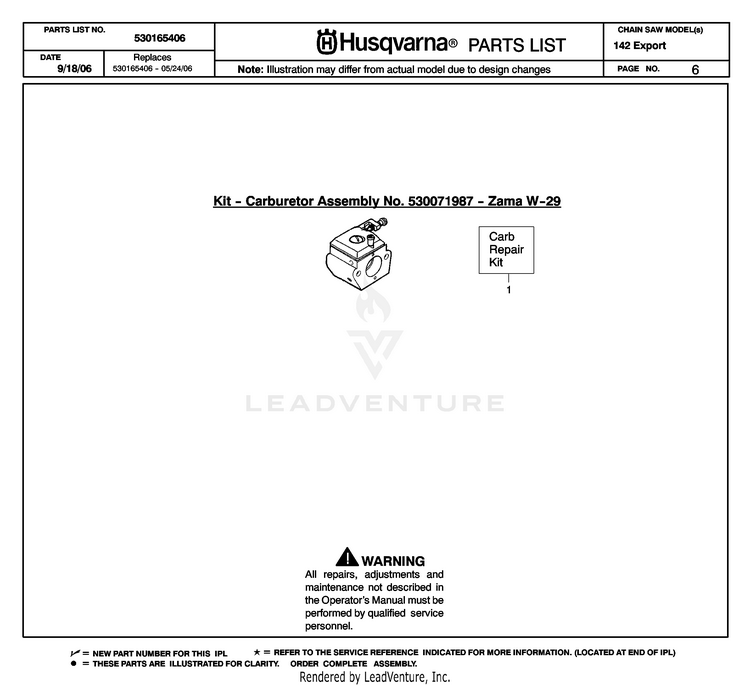

CARBURETOR

...
...
1
KIT, CARB REPAIR HUS-530035269

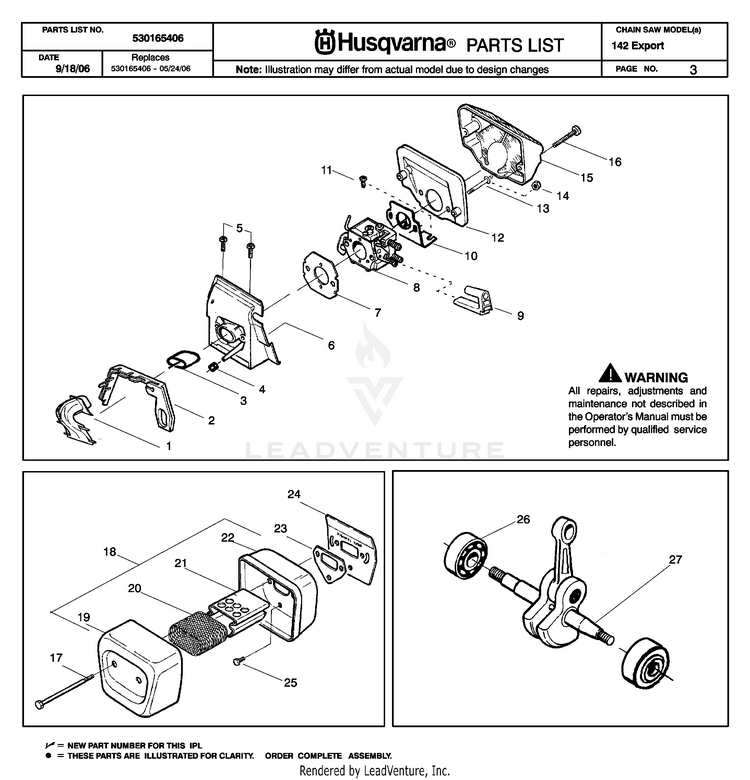

CARBURETOR & AIR FILTER

...
...
27
ASSY-CRANKSHAFT & ROD HUS-503920801
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
22
SILENCER BODY HUS-530037251
...
24
MUFFLER PLATE HUS-530037640
...
6
CARB ADAPTOR HUS-530037465
...
15
AIR FILTER - TOP HUS-545057801
...
10
PLATE HUS-530047767
...
14
NUT 5M HUS-530016008
...
5
SCREW HUS-530015814
...
18
MUFFLER KIT HUS-530069415
...
7
GSKT,CARB 36/41 HUS-530019172
...
16
SCREW HUS-530015899
...
19
SILENCER COVER HUS-530037254
...
1
INTAKE HORN HUS-530029813
...
25
BOLT-MUFFLER(SUPPORT) HUS-530015902
...
9
GROMMET HUS-530035587
...
12
AIR FILTER (BOTTOM) HUS-530036582
...
20
SPARK ARRESTOR 36/41 HUS-530029810
...
26
BEARING & SEAL ASSEMBLY HUS-530056363
...
23
GASKET HUS-530019205
...
2
TURBO CLEAN SEAL HUS-530019203
...
11
SCREW HUS-530015896
...
21
FLAME PROTECTOR HUS-530037246
...
4
IMPULSE PIPE HUS-530053435
...
3
INTAKE PIPE HUS-530029814
...
13
STUD-CARBURETOR HUS-530015968
...
17
BOLT HUS-530016044

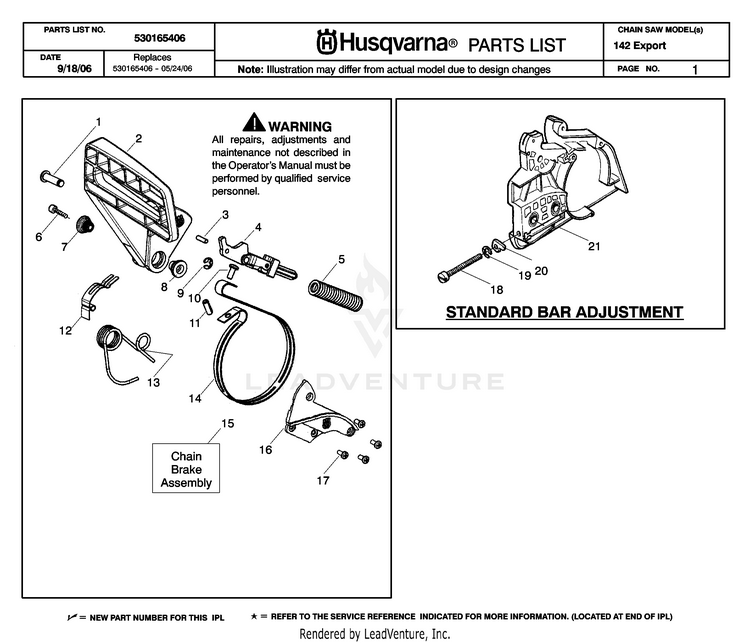

CHAIN BRAKE & CLUTCH COVER

...
...
20
ADJUST PIN,BAR 36/41 HUS-530015826
...
6
SCREW HUS-530016384
...
7
JOURNAL, RIGHT HUS-530056531
...
8
SHAFT PIVOT HUS-530029881
...
530031135
WRENCH HUS-587417201
...
5
COMPRESSION SPRING HUS-545137301
...
14
BRAKE BAND HUS-545137401
...
530054802
CHAIN BRAKE ASM. HUS-530054802
...
530047839
DECAL HUS-530047839
...
1
PIVOT PIN HUS-530029879
...
15
BRAKE BAND HUS-545137401
...
18
BAR ADJUSTING SCREW HUS-530016110
...
19
RETAINER HUS-530038593
...
11
PIN HUS-530015913
...
545003026
DECAL - WARNING HUS-545003026
...
2
HANDGUARD HUS-530071348
...
10
SCREW M3.63-1.34 X 8MM HUS-574780301
...
530049483
CLUTCH COVER HUS-530049483
...
13
SPRING,BRK HDL 36/41 HUS-530015910
...
21
ADJUST PIN,BAR 36/41 HUS-530015826
...
16
CHAIN BRAKE COVER HUS-530053035
...
9
E-RING HUS-530024419
...
17
SCREW M3.63-1.34 X 8MM HUS-574780301
...
4
FRONT LINK ASSY HUS-530054741
...
3
PIN HUS-530015915
...
12
SPRING-POSITION HUS-530029878

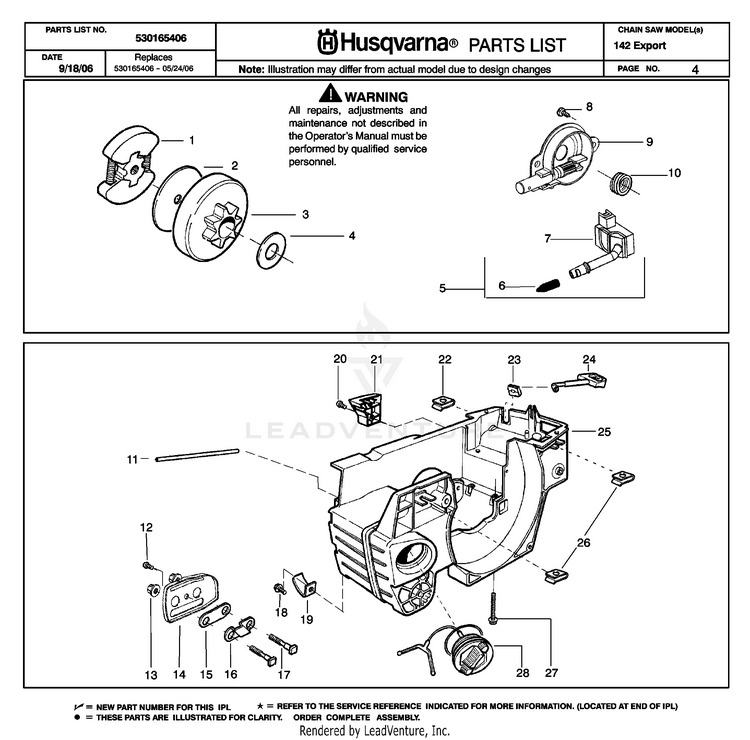

CLUTCH & OIL PUMP

...
...
21
LIMITER COVER HUS-530052428
...
15
OIL TANK GASKET HUS-530019228
...
13
BAR NUT HUS-530015917
...
3
ASSY CLUTCH DRUM .325" HUS-530048132
...
20
SCREW HUS-530015893
...
25
KIT ASSY CHASSIS HUS-530071991
...
28
OIL CAP HUS-501765602
...
10
OILER GEAR 36/41 HUS-530029833
...
12
SCREW HUS-530015896
...
16
PLATE,BAR MOUNT HUS-530036043
...
2
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
5
OIL HOSE HUS-545037101
...
24
CHOKE 36/41 HUS-530029831
...
3
CLUTCH DRUM ASSY HUS-530047061
...
18
SCREW HUS-530015878
...
23
CHOKE GUIDE 36/41 HUS-530029830
...
27
SCREW M5-0.8X35M TAP HUS-530016037
...
14
BAR PLATE HUS-530047855
...
8
SCREW HUS-530015896
...
1
CLUTCH ASSEMBLY HUS-530014949
...
6
SCREEN/FILTER HUS-530056533
...
17
BAR BOLT 36/41 HUS-530015877
...
19
CHAIN CATCHER 36/41 HUS-530029850
...
4
THRUST WASHER HUS-530015907
...
7
OIL HOSE HUS-545037101
...
11
OIL TUBE HUS-545033501
...
26
CLIP HUS-530015922
...
22
CLIP HUS-530015922
...
9
PLUNGER & GEAR ASSY HUS-545036801

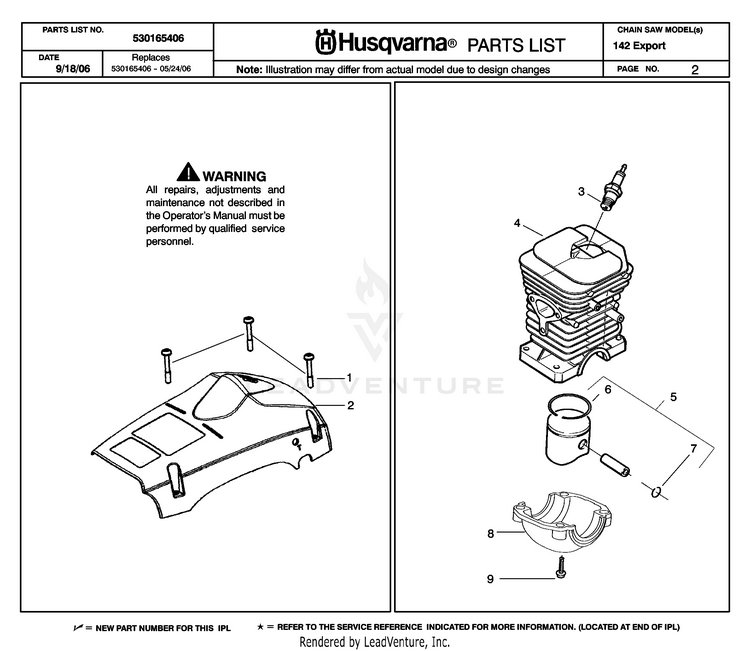

CLUTCH COVER

...
...
7
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
6
PISTON RING HUS-537400001
...
4
CYLINDER ASSY/141 HUS-530069941
...
3
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
2
CYLINDER SHIELD HUS-530059960
...
5
KIT-PISTON HUS-530069454
...
9
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
1
SCREW HUS-530016154
...
8
CAP-CRANKSHAFT HUS-530049794

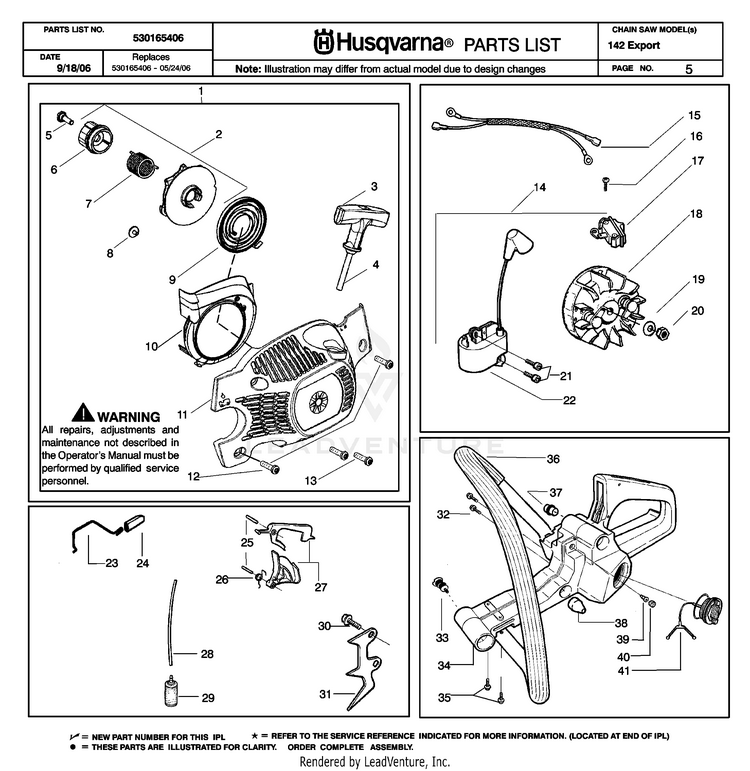

STARTER

...
...
36
HANDLE FRONT HUS-530059961
...
41
FUEL CAP KIT HUS-530071266
...
10
BAFFLE AIR HUS-530059959
...
1
KIT FAN HSG & STARTER EPS HUS-530071968
...
8
SCREW HUS-530016080
...
18
FLYWHEEL ASSY HUS-530059637
...
25
PIN,TRIGGER 36/41 HUS-530029860
...
7
SPRING EPS HUS-530021180
...
12
SCREW HUS-530015893
...
6
HUB STARTER EPS HUS-530059677
...
3
STARTER HANDLE GRAY HUS-530150318
...
34
TANK ASSY HUS-530052446
...
21
SCREW HUS-545003902
...
22
IGNITION MODULE HUS-545063901
...
32
SCREW HUS-530015940
...
28
HOSE. FUEL HUS-530069247
...
11
HOUSING FAN W/ EYELET HUS-530059958
...
20
NUT-FLYWHEEL HUS-530016134
...
38
SHOCK MOUNT(X2) 36/41 HUS-530029984
...
17
SWITCH ON/OFF HUS-503717901
...
31
SPIKE 36/41 HUS-530014381
...
16
SCREW HUS-530015896
...
35
SCREW HUS-530015843
...
39
VALVE-CHECK (DUCKBILL) HUS-530026119
...
19
WASHER-FLYWHEEL HUS-530015127
...
15
LEAD WIRE ASSY HUS-530403257
...
24
THROTTLE ACTUATOR 36/41 HUS-530029863
...
5
SCREW SHOULDER HUS-530021179
...
30
SCREW HUS-530016439
...
37
FRONT HANDLE ISOLATOR HUS-530052439
...
26
TRIGGER SPRING 36/41 HUS-530029861
...
4
KIT-ROPE HUS-530069232
...
9
SPRING STARTER HUS-545008013
...
2
KIT EPS STARTER HUS-530071966
...
40
BRONZE PLUG HUS-530038264
...
13
SCREW,STRTR CVR 36/41 HUS-530015892
...
29
FUEL PICK-UP ASSY HUS-530095646
...
27
THROTTLE TRIGGER-KIT HUS-530069587
...
23
THROTTLE SHAFT 36/41 HUS-530029869
...
14
KIT EPS IGNITION HUS-530071967
...
33
ISOLATOR HUS-530029870
