Husqvarna 141 (2003-06) Chain Saw

Model: 141 (2003-06)

Save Part Not Listed?
product name

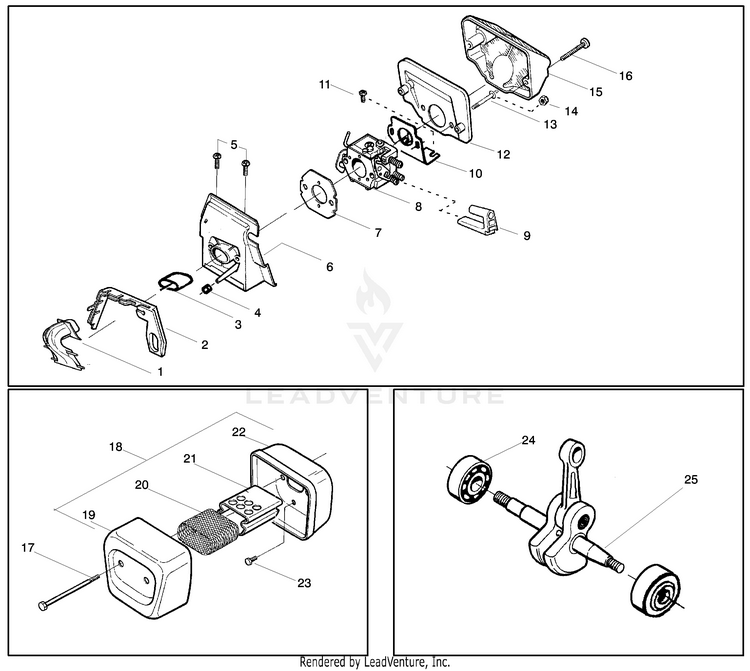

Air Filter / Carburetor & Muffler & Crankshaft

...
...
1
INTAKE HORN HUS-530029813
...
2
TURBO CLEAN SEAL HUS-530019203
...
3
INTAKE PIPE HUS-530029814
...
4
IMPULSE PIPE HUS-530053435
...
5
SCREW HUS-530015814
...
6
CARB ADAPTOR HUS-530037465
...
7
GSKT,CARB 36/41 HUS-530019172
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
8
CARBURETOR HUS-545013503
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
10
PLATE HUS-530047767
...
11
SCREW HUS-530015896
...
12
AIR FILTER (BOTTOM) HUS-530036582
...
13
STUD-CARBURETOR HUS-530015968
...
14
NUT 5M HUS-530016008
...
15
AIR FILTER HUS-530029811
...
16
SCREW HUS-530015899
...
17
BOLT HUS-530016044
...
18
MUFFLER KIT (Includes 17,19,20,21 & 22) HUS-530069415
...
19
SILENCER COVER HUS-530037254
...
20
SPARK ARRESTOR 36/41 HUS-530029810
...
21
FLAME PROTECTOR HUS-530037246
...
22
SILENCER BODY HUS-530037251
...
23
BOLT-MUFFLER(SUPPORT) HUS-530015902
...
25
ASSY-CRANKSHAFT & ROD HUS-503920801

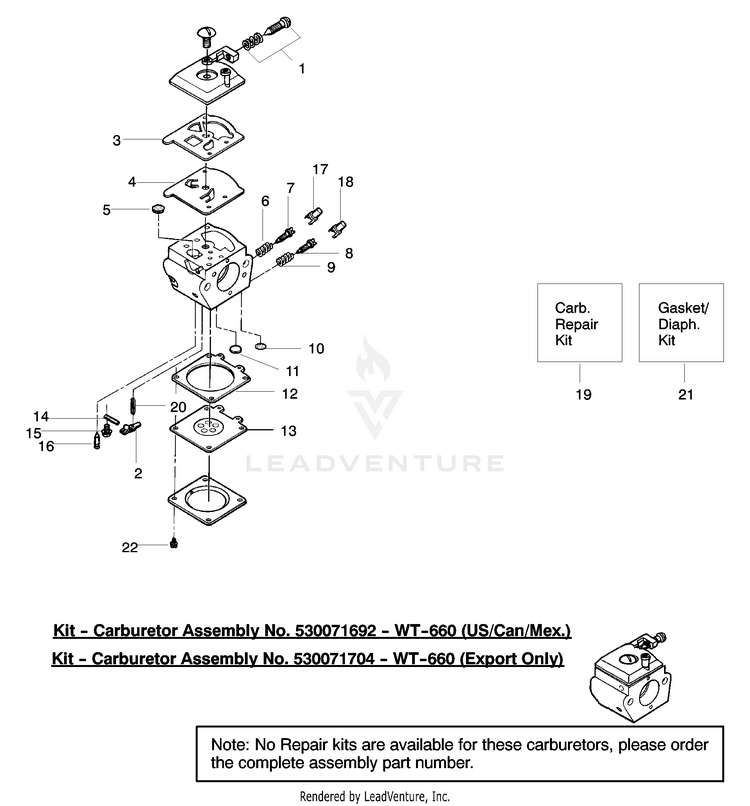

Carburetor Parts

...
...
1
IDLE ADV SCREW KIT HUS-530035296
...
2
LEVER HUS-505520127
...
3
GASKET HUS-504130906
...
4
PUMP DIAPHRAGM HUS-504130807
...
5
FUEL INLET SCREEN HUS-501666101
...
6
NEEDLE SPRING HUS-530035293
...
7
LOW SPEED NEEDLE HUS-530035281
...
8
High Speed Needle HUS-530037259
...
9
NEEDLE SPRING HUS-530035295
...
10
Welch Plug (5/16) HUS-530035162
...
11
CUP PLUG HUS-530035225
...
12
METERING DIA GASKET HUS-530035165
...
13
DIAPHRAGM HUS-503896701
...
14
FULCRUM PIN HUS-505520125
...
15
SCREW HUS-530035016
...
16
VALVE/INLET. HUS-503117001
...
17
LIMITER CAP-HIGH HUS-530038479
...
18
LIMITER CAP-LOW HUS-530038478
...
19
CARB REPAIR KIT HUS-530069826
...
19
KIT, CARB REPAIR HUS-530035269
...
20
SPRING-METERING LEVER HUS-530035188
...
21
GASKET/DIAPHRAGM KIT HUS-530069844
...
21
GASKET/DIAPHRAGM KIT ZAMA HUS-530035270
...
22
SCREW, MOTOR COVER HUS-530035021
...
xx
SERVICE TOOL, CARB Not Shown HUS-540068201
...
xx
LIMITER CAP INSERTION TOOL Not Shown HUS-530031161
...
xx
CARBURETOR ZAMA W-29 HUS-530035607
...
xx
CARBURETOR HUS-545013503
...
xx
CARBURETOR ZAMA W-29 HUS-530035607
...
530071692
CARBURETOR ZAMA W-29 HUS-530035607
...
530071704
CARBURETOR ZAMA W-29 HUS-530035607

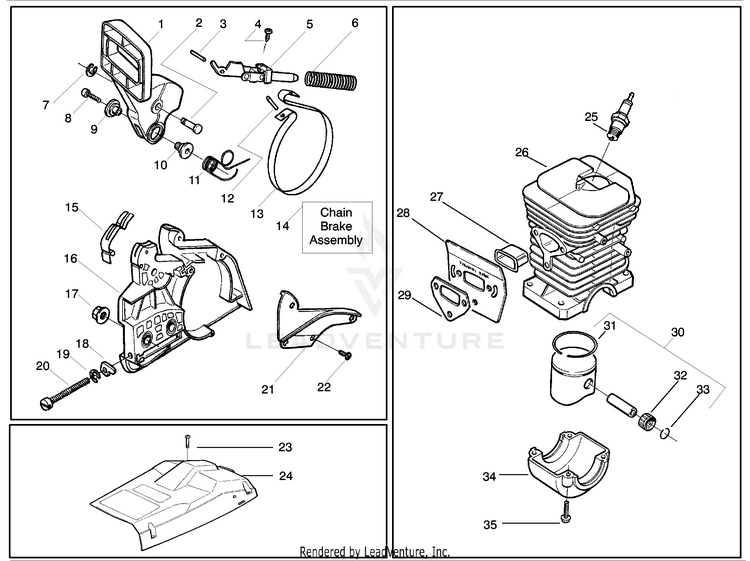

Chain Brake & Top Cover & Piston/Cylinder

...
...
1
HANDGUARD HUS-530071348
...
2
PIVOT PIN HUS-530029879
...
3
PIN HUS-530015915
...
4
SCREW M3.63-1.34 X 8MM HUS-574780301
...
5
FRONT LINK ASSY HUS-530054741
...
6
COMPRESSION SPRING HUS-545137301
...
7
RETAINER HUS-530038593
...
8
SCREW HUS-530016384
...
9
JOURNAL, RIGHT HUS-530056531
...
10
SHAFT PIVOT HUS-530029881
...
11
SPRING,BRK HDL 36/41 HUS-530015910
...
12
PIN HUS-530015913
...
13
BRAKE BAND HUS-545137401
...
14
CHAIN BRAKE ASM. HUS-530054802
...
15
SPRING-POSITION HUS-530029878
...
16
CLUTCH COVER HUS-530049483
...
17
BAR NUT HUS-530015917
...
18
ADJUST PIN,BAR 36/41 HUS-530015826
...
19
RETAINER HUS-530038593
...
20
BAR ADJUSTING SCREW HUS-530016110
...
21
CHAIN BRAKE COVER HUS-530053035
...
22
SCREW M3.63-1.34 X 8MM HUS-574780301
...
23
SCREW HUS-530016154
...
24
CYLINDER SHIELD ASSY HUS-530047609
...
25
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
27
HEAT INSULATOR HUS-530037652
...
28
MUFFLER PLATE HUS-530037640
...
29
GASKET HUS-530019205
...
30
PISTON KIT/136 HUS-530069944
...
30
KIT-PISTON HUS-530069454
...
31
PISTON RING 36 HUS-530029805
...
31
PISTON RING HUS-537400001
...
32
Piston Pin Bearing HUS-530032117
...
33
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
35
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
xx
MANUAL, OPERATORS Not Shown HUS-530163874
...
xx
MANUAL, OPERATORS Not Shown HUS-530163872
...
xx
MANUAL, OPERATORS Not Shown HUS-530163873
...
xx
MANUAL, OPERATORS Not Shown HUS-530163871
...
xx
Japan Not Shown HUS-530163870
...
xx
WRENCH Not Shown HUS-587417201
...
xx
PULLER WORM GEAR Not Shown HUS-530031136
...
xx
CLUTCH TOOL Not Shown HUS-530031112
...
xx
KICKBACK WARNING DECAL Not Shown HUS-530047941
...
xx
HUS SCABBARD 13-16" Not Shown HUS-596703701
...
xx
LIMITER CAP (LOW-BLUE) Not Shown HUS-530038317
...
xx
LIMITER CAP (HIGH-RED) Not Shown HUS-530038318

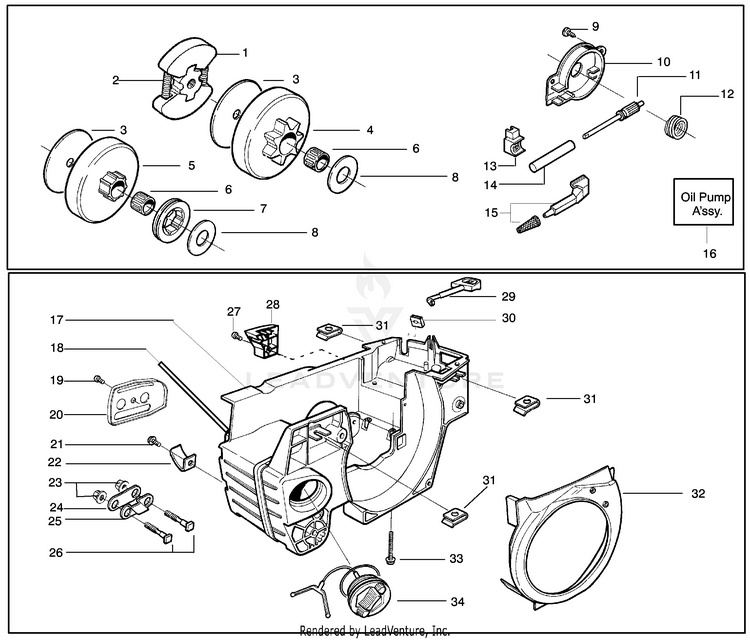

Clutch / Drum & Oil Pump & Crankcase / Oil Tank

...
...
1
CLUTCH ASSEMBLY (incl. 2) HUS-530014949
...
2
CLUTCH ASSEMBLY HUS-530014949
...
3
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
4
CLUTCH DRUM ASSY HUS-530047061
...
5
CLUTCH DRUM 325 X 7T (incl. 6 & 7) HUS-530069316
...
6
NEEDLE BEARINGS 36/41 HUS-530032119
...
7
11892 POWER MATE RIM HUS-640200010
...
8
THRUST WASHER HUS-530015907
...
9
SCREW HUS-530015896
...
10
PLUNGER & GEAR ASSY HUS-545036801
...
11
PLUNGER & GEAR ASSY HUS-545036801
...
12
OILER GEAR 36/41 HUS-530029833
...
13
PRESSURE SEAL,OILER 36/41 HUS-530019174
...
14
PLUNGER & GEAR ASSY HUS-545036801
...
15
OIL HOSE HUS-545037101
...
16
PLUNGER & GEAR ASSY (Includes 10,11 & 14) HUS-545036801
...
17
TANK ASSEMBLY HUS-530052450
...
18
OIL TUBE HUS-545033501
...
19
SCREW (optional) HUS-530015896
...
20
BAR PLATE HUS-530047855
...
21
SCREW HUS-530015878
...
22
CHAIN CATCHER 36/41 HUS-530029850
...
23
BAR NUT HUS-530015917
...
24
OIL TANK GASKET HUS-530019228
...
25
PLATE,BAR MOUNT HUS-530036043
...
26
BAR BOLT 36/41 HUS-530015877
...
27
SCREW HUS-530015893
...
28
LIMITER COVER HUS-530052428
...
29
CHOKE 36/41 HUS-530029831
...
30
CHOKE GUIDE 36/41 HUS-530029830
...
31
CLIP HUS-530015922
...
32
AIR CONDUCTOR 36/41 HUS-530029800
...
33
SCREW M5-0.8X35M TAP HUS-530016037
...
34
OIL CAP HUS-501765602

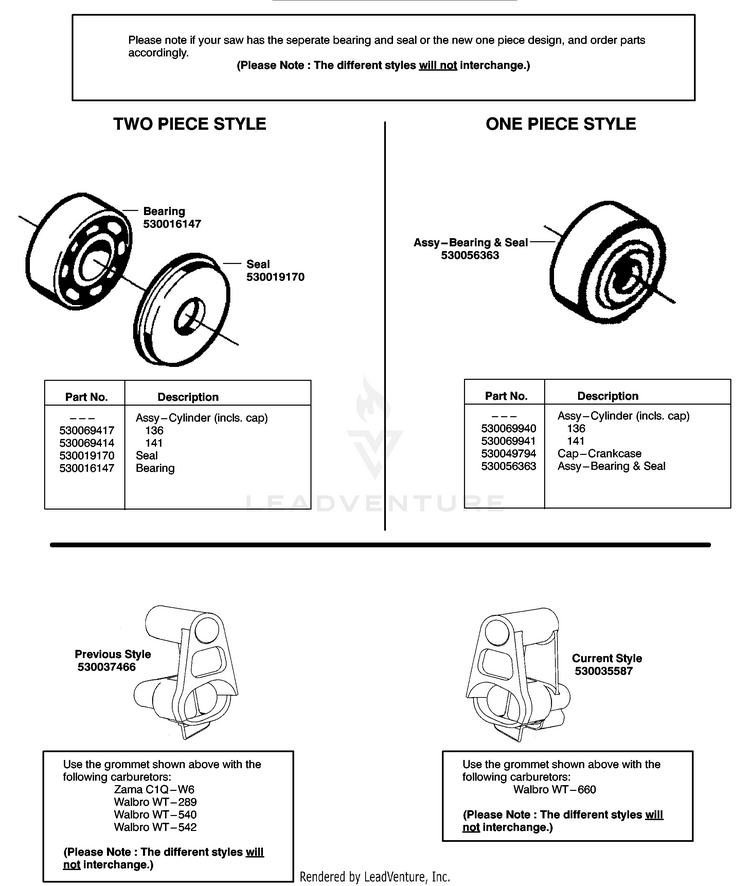

Service Reference

...
...
530069417
CYLINDER ASSY/136 HUS-530069940
...
530069414
CYLINDER ASSY/141 HUS-530069941
...
530019170
SEAL,C/SHAFT 36/41 HUS-530019170
...
530016147
BALL BEARING HUS-530016147
...
530037466
GUIDE HUS-530029815
...
530016147
BALL BEARING HUS-530016147
...
530019170
SEAL,C/SHAFT 36/41 HUS-530019170
...
530056363
BEARING & SEAL ASSEMBLY HUS-530056363
...
530069940
CYLINDER ASSY/136 HUS-530069940
...
530069941
CYLINDER ASSY/141 HUS-530069941
...
530049794
CAP-CRANKSHAFT HUS-530049794
...
530035587
GROMMET HUS-530035587
...
530056363
BEARING & SEAL ASSEMBLY HUS-530056363

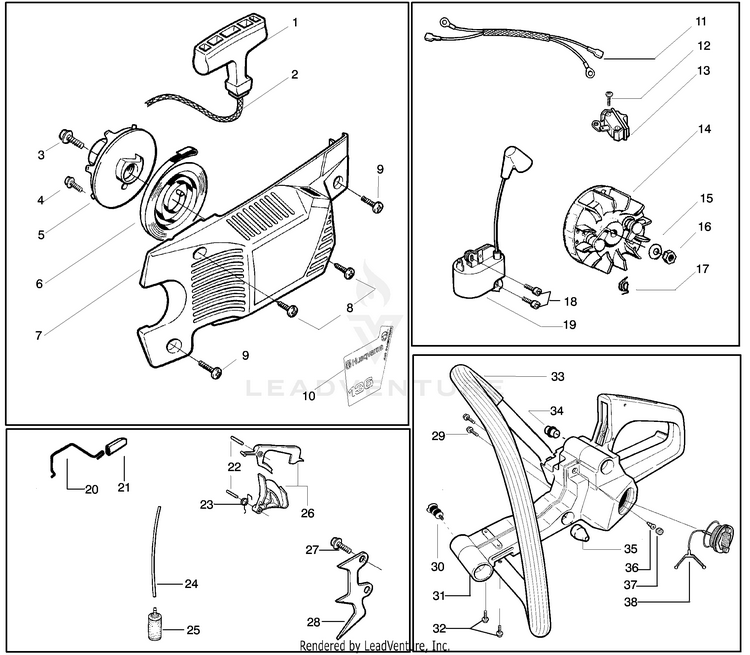

Starter & Ignition / Flywheel & Fuel Tank / Handle & Throttle Control

...
...
1
STARTER HANDLE GRAY HUS-530150318
...
2
KIT-ROPE HUS-530069232
...
3
SCREW HUS-530015920
...
4
SCREW HUS-530016080
...
5
PULLEY 36/41 HUS-530069313
...
6
RETURN SPRING HUS-545008005
...
7
FAN HOUSING HUS-530049811
...
8
SCREW,STRTR CVR 36/41 HUS-530015892
...
9
SCREW HUS-530015893
...
10
DECAL/136 HUS-530053459
...
10
DECAL/141 HUS-530053460
...
11
LEAD WIRE ASSY HUS-530403257
...
12
SCREW HUS-530015896
...
13
SWITCH ON/OFF HUS-503717901
...
14
ASSY FLYWHEEL FENGLONG P021 (incl.16) HUS-575635502
...
15
WASHER-FLYWHEEL HUS-530015127
...
16
NUT HUS-530016071
...
17
SPRING STR DOG HUS-530023817
...
18
SCREW,IGN MOD 36/41 HUS-530015895
...
19
MODULE HUS-575803501
...
20
THROTTLE SHAFT 36/41 HUS-530029869
...
21
THROTTLE ACTUATOR 36/41 HUS-530029863
...
22
PIN,TRIGGER 36/41 HUS-530029860
...
23
TRIGGER SPRING 36/41 HUS-530029861
...
24
HOSE. FUEL HUS-530069247
...
25
FUEL PICK-UP ASSY HUS-530095646
...
26
THROTTLE TRIGGER-KIT HUS-530069587
...
27
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
28
SPIKE 36/41 HUS-530014381
...
29
SCREW HUS-530015940
...
30
ISOLATOR HUS-530029870
...
31
TANK ASSY HUS-530052446
...
32
SCREW HUS-530015843
...
33
HANDLE FRONT HUS-530059961
...
34
FRONT HANDLE ISOLATOR HUS-530052439
...
35
SHOCK MOUNT(X2) 36/41 HUS-530029984
...
36
VALVE-CHECK (DUCKBILL) HUS-530026119
...
37
BRONZE PLUG HUS-530038264
...
38
FUEL CAP KIT HUS-530071266
