Husqvarna 141 (2003-01) Chain Saw

Model: 141 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

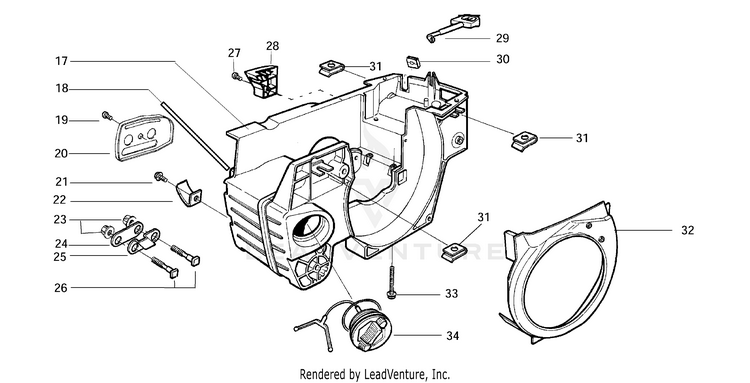

Crankcase

...
...
17
TANK ASSEMBLY HUS-530052450
...
18
OIL TUBE HUS-545033501
...
19
SCREW (optional) HUS-530015896
...
20
BAR PLATE HUS-530047855
...
21
SCREW HUS-530015878
...
22
CHAIN CATCHER 36/41 HUS-530029850
...
23
BAR NUT HUS-530015917
...
24
OIL TANK GASKET HUS-530019228
...
25
PLATE,BAR MOUNT HUS-530036043
...
26
BAR BOLT 36/41 HUS-530015877
...
27
SCREW HUS-530015893
...
28
LIMITER COVER HUS-530052428
...
29
CHOKE 36/41 HUS-530029831
...
30
CHOKE GUIDE 36/41 HUS-530029830
...
31
CLIP HUS-530015922
...
32
AIR CONDUCTOR 36/41 HUS-530029800
...
33
SCREW M5-0.8X35M TAP HUS-530016037
...
34
OIL CAP HUS-501765602
